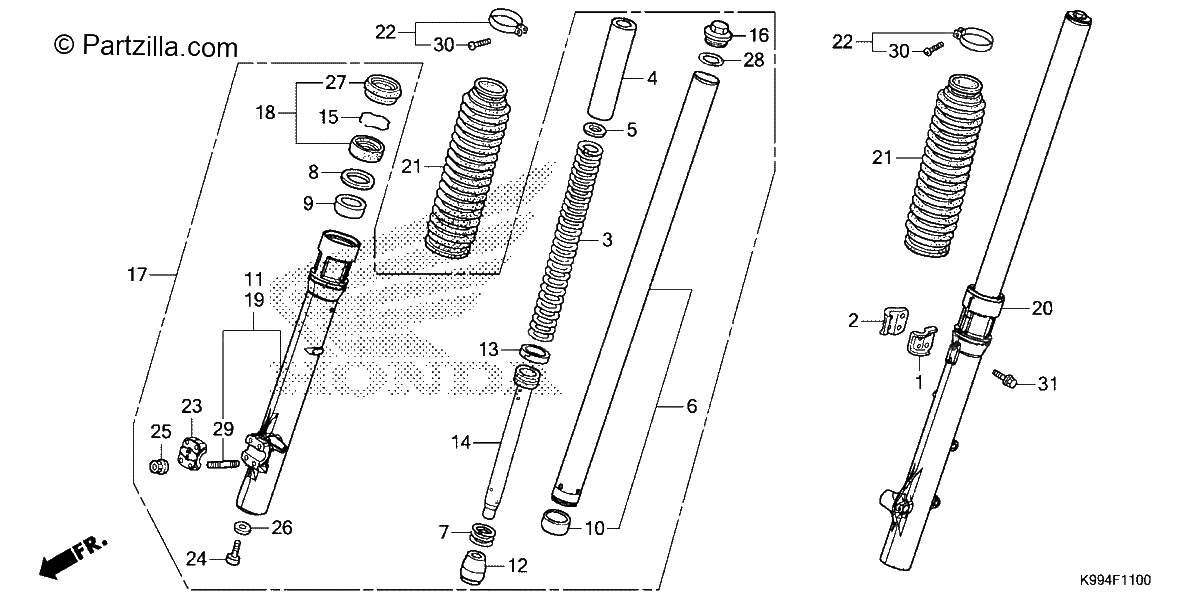

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP A, BRAKE HOSE
$8.56¢4 278
#002
CLAMP B, BRAKE HOSE
$12.16¢6 078
#003
SPRING, Front FORK
$28.72¢14 358
#004
COLLAR, SPRING (SHOWA)
$25.63¢12 817
#005
SEAT, SPRING (SHOWA)
$5.35¢2 674
#006
PIPE, Front FORK
$88.57¢44 287
#007
SPRING, REBOUND
$2.38¢1 190
#008
RING, BACK-UP (SHOWA)
$10.38¢5 192
#009
BUSH, GUIDE (SHOWA)
$14.97¢7 486
#009
BUSH, GUIDE
$14.97¢7 486
#010
BUSH, SLIDER
$17.05¢8 527
#011
CASE SET, Right Front. (LOWER) (SHOWA)
$117.28¢58 639
#012
PIECE, OIL LOCK
$17.61¢8 803
#013
RING, PISTON
$8.03¢4 013
#014
PIPE, SEAT
$18.91¢9 453
#015
RING, OIL SEAL STOP
$1.13¢564
#016
BOLT, FR. FORK
$40.97¢20 487
#017
FORK SUB-Assembly., Right Front. NH109MS (SHOT SILVER METALLIC SPECIAL)
$293.02¢146 510
#018
SEAL SET, Front FORK
$11.66¢5 831
#019
CASE SET, L Front. (LOWER)
$129.29¢64 647
#020
FORK SUB-Assembly., L Front.
$249.27¢124 637
#021
BOOT, Front FORK
$62.42¢31 211
#022
BAND, FR. FORK BOOT
$11.73¢5 865
#023
HOLDER, AXLE *NH109MS* (SHOT SILVER METALLIC SPECIAL)
$33.50¢16 750
#024
BOLT, SOCKET (8MM) (SHOWA)
$4.34¢2 168
#025
NUT, U (6MM) (FUSE RASHI)
$4.54¢2 271
#026
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
#027
DUST SEAL, Front FORK
$24.91¢12 455
#028
O-RING (33.2X2.4)
$4.20¢2 099
#029
BOLT, STUD (6X25)
$1.23¢615
#030
SCREW, PAN (3X20)
$0.93¢466
#031
BOLT, FLANGE (6X16)
$1.24¢621
