MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

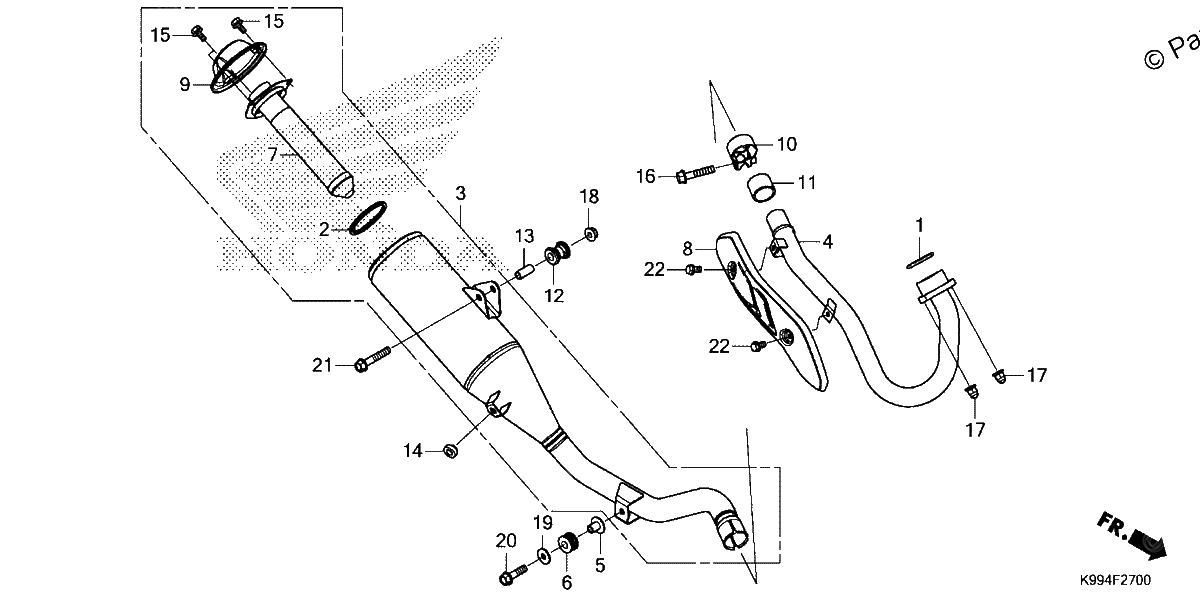

Diagrama de MUFFLER

Repuestos

#001
18291-MM5-860
GASKET, EX. PIPE
$6.26¢3 131
1
#002
18292-MV4-000
GASKET, MUFFLER
$10.15¢5 075
1
#003
18300-K99-A00
MUFFLER ASSY.
$476.09¢238 044
1
#004
18320-K99-A00
PIPE, EX.
$65.19¢32 594
1
#005
18327-KRH-D20
COLLAR, RR. CHAMBER (8.5X15)
$1.19¢594
1
#006
18328-KRH-D20
RUBBER, Rear CHAMBER MOUNTING
$1.57¢788
1
#007
18340-K99-A00
ARRESTER, MUFFLER
$267.93¢133 963
1
#008
18345-K99-A00ZA
PROTECTOR, EX. PIPE *NH106*(HEATPROOF BLACK)
$18.01¢9 006
1
#009
18360-K99-A00
COVER, MUFFLER TAIL
$95.02¢47 512
1
#010
18373-K99-A00
BAND, EX. PIPE
$8.81¢4 406
1
#011
18391-MB0-891
GASKET, EX.
$20.80¢10 400
1
#012
18421-KFB-000
RUBBER, MUFFLER MOUNTING
$5.45¢2 725
1
#013
18422-KFB-000
COLLAR, MUFFLER MOUNTING
$5.74¢2 869
1
#014
83512-KPS-730
RUBBER, SIDE COVER
$2.03¢1 013
1
#015
90101-KCE-000
BOLT, FLANGE (6X10)
$2.09¢1 044
1
#015
96001-06010-07
BOLT, FLANGE (6X10)
$2.09¢1 044
1
#016
90102-KVK-900
BOLT, FLANGE (8X38)
$3.11¢1 556
1
#017
90308-KRM-860
NUT, HEX CAP (8MM)
$2.24¢1 119
1
#018
94050-08070
NUT, FLANGE (8MM)
$1.93¢963
1
#019
94103-08700
WASHER, PLAIN (8MM)
$1.21¢606
1
#020
95701-08030-07
BOLT, FLANGE (8X30)
$2.92¢1 463
1
#021
95701-08045-07
BOLT, FLANGE (8X45)
$2.79¢1 394
1
#022
96001-06010-07
BOLT, FLANGE (6X10)
$2.09¢1 044
1
