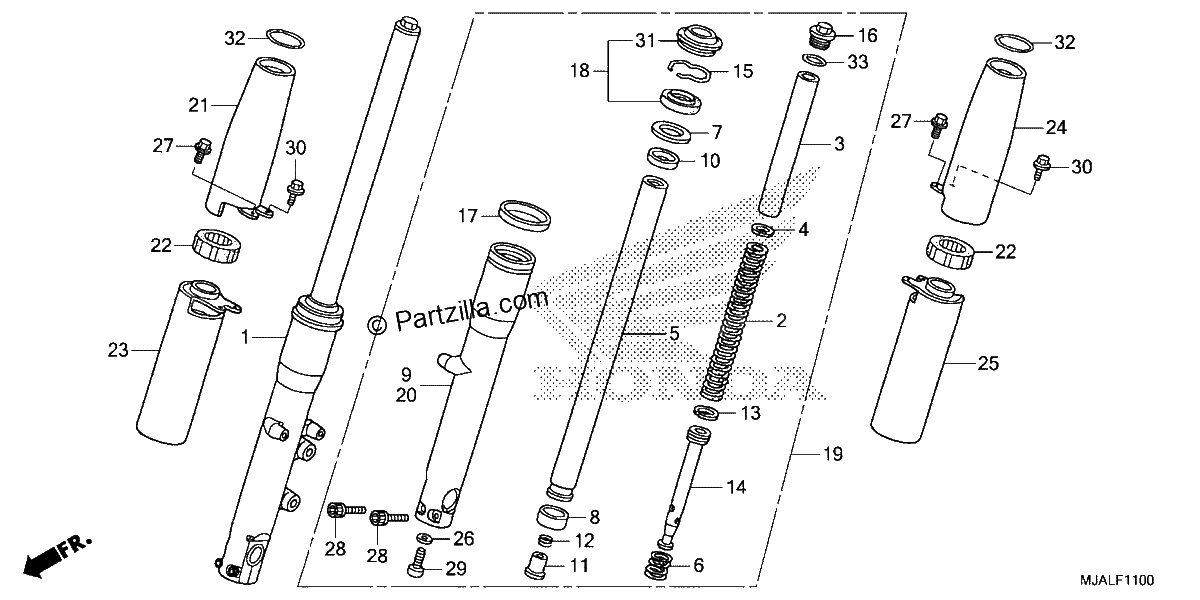

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
FORK SET, R. FR. (COO) (KAYABA)
$831.69¢415 846
#001
FORK Assembly., Right Front. (KAYABA)
$831.69¢415 846
#002
SPRING, Front FORK
$85.23¢42 613
#003
SPACER, SPRING
$12.44¢6 222
#004
WASHER
$6.81¢3 404
#005
PIPE, Front FORK
$367.19¢183 598
#006
SPRING, FR. REBOUND
$7.99¢3 996
#007
WASHER
$7.53¢3 766
#008
BUSH, SLIDER
$8.50¢4 249
#009
CASE, R. (LOWER)
$431.80¢215 901
#010
BUSH, GUIDE
$7.81¢3 904
#011
PIECE, OIL LOCK
$18.15¢9 074
#012
SPRING, OIL LOCK
$3.76¢1 880
#013
RING, PISTON
$5.84¢2 921
#014
PIPE, SEAT
$50.11¢25 053
#015
RING, SNAP
$4.71¢2 357
#016
BOLT, FR. FORK
$29.97¢14 984
#017
GUIDE, COVER
$10.72¢5 359
#018
SEAL SET, Front FORK
$19.10¢9 551
#019
FORK Assembly., L Front. (KAYABA)
$831.69¢415 846
#020
CASE, Left (LOWER)
$431.80¢215 901
#021
COVER, Right Front FORK TOP
$131.33¢65 665
#022
MOUNT, Front FORK COVER
$11.56¢5 779
#023
COVER, R. FR. FORK (LOWER)
$131.33¢65 665
#024
COVER, L Front FORK TOP
$108.54¢54 268
#025
COVER, L Front FORK (LOWER)
$131.33¢65 665
#026
WASHER, OIL BOLT
$2.77¢1 386
#027
BOLT, FLANGE (8X12)
$4.75¢2 375
#028
BOLT, SOCKET (8X35)
$3.36¢1 679
#029
BOLT, SOCKET (10X25)
$6.64¢3 318
#030
BOLT, FLANGE (6X12)
$3.36¢1 679
#031
DUST SEAL
$13.10¢6 549
#032
O-RING (39.5X5)
$3.69¢1 846
#033
O-RING (31.7X3.5)
$3.50¢1 748
