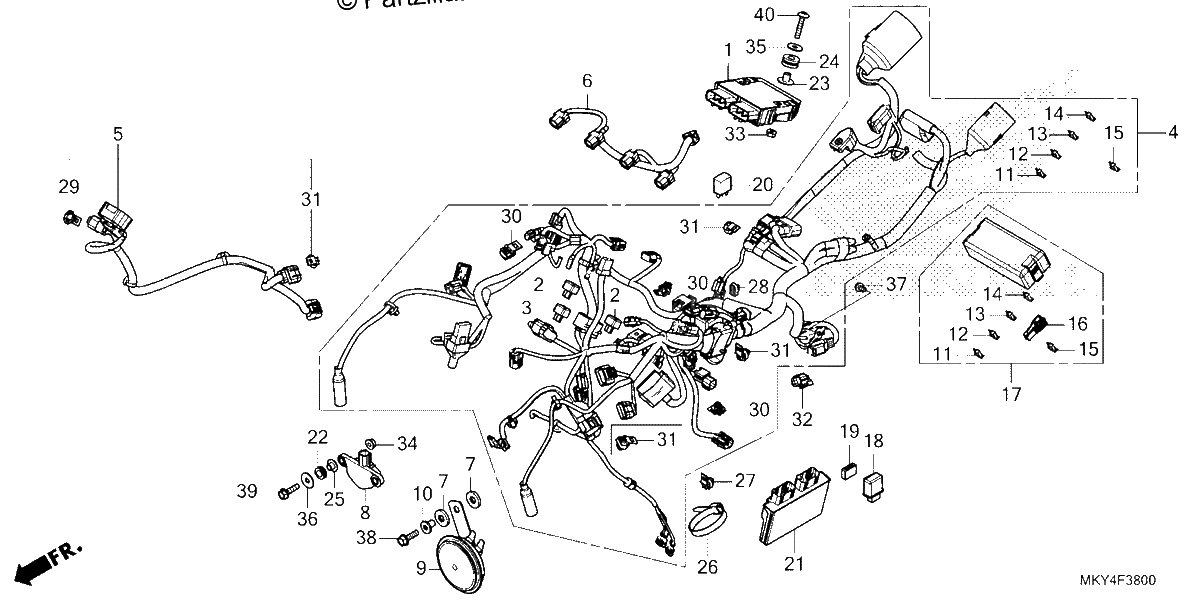

WIRE HARNESS
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RECTIFIER ASSY., REGULATOR
$220.61¢110 306
#002
RECTIFIER, SILICON
$30.66¢15 331
#003
RECTIFIER, SILICON
$30.66¢15 331
#004
WIRE HARNESS
$1210.49¢605 244
#006
SUB-HARNESS, INJECTOR
$25.04¢12 519
#007
RUBBER, TAILLIGHT BRACKET
$3.24¢1 619
#008
SENSOR ASSY., BANK ANGLE
$193.17¢96 587
#009
HORN (HIGH)
$45.09¢22 544
#010
COLLAR, HORN SETTING
$0.99¢494
#011
FUSE, BLADE (7.5A)
$3.76¢1 881
#012
FUSE, BLADE (10A)
$3.76¢1 881
#013
FUSE, BLADE (15A)
$4.80¢2 400
#014
FUSE, BLADE (20A)
$4.80¢2 400
#015
FUSE, BLADE (30A)
$3.11¢1 556
#016
PULLER, MINI FUSE
$4.51¢2 256
#017
COVER ASSY., POWER BOX
$14.45¢7 225
#018
RELAY, TURN SIGNAL (LED)
$73.24¢36 619
#019
SUSPENSION, TURN SIGNAL RELAY (MITSUBA)
$3.65¢1 825
#020
RELAY, POWER (MICRO ISO 4P)
$12.59¢6 294
#021
PGM-FI UNIT
$438.26¢219 131
#022
RUBBER, SIDE COVER
$2.50¢1 250
#023
COLLAR, PILLION SEAT MOUNTING
$5.20¢2 600
#024
RUBBER, PILLION SEAT MOUNTING
$5.76¢2 881
#025
COLLAR, BANK ANGLE SENSOR
$2.95¢1 475
#026
BAND, WIRE (165MM) (BLACK)
$3.65¢1 825
#027
CLIP, WIRE HARNESS
$4.33¢2 163
#028
CLIP, CONNECTOR (DARK GRAY)
$12.30¢6 150
#030
CLIP, CONNECTOR (DARK BROWN)
$5.02¢2 512
#031
CLIP, CONNECTOR (BLACK)
$4.45¢2 225
#032
CAP, DUMMY (6P) (RED)
$28.94¢14 469
#033
NUT, FLANGE (6MM)
$1.86¢931
#034
NUT, FLANGE (6MM)
$0.80¢400
#035
WASHER, PLAIN (6MM)
$0.93¢463
#036
WASHER, PLAIN (6MM)
$1.00¢500
#037
BOLT, FLANGE (6X14)
$2.09¢1 044
#038
BOLT, FLANGE (6X20)
$2.09¢1 044
#039
BOLT, FLANGE (6X22)
$2.21¢1 106
#040
BOLT, SOCKET (6X32)
$2.38¢1 188
