AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

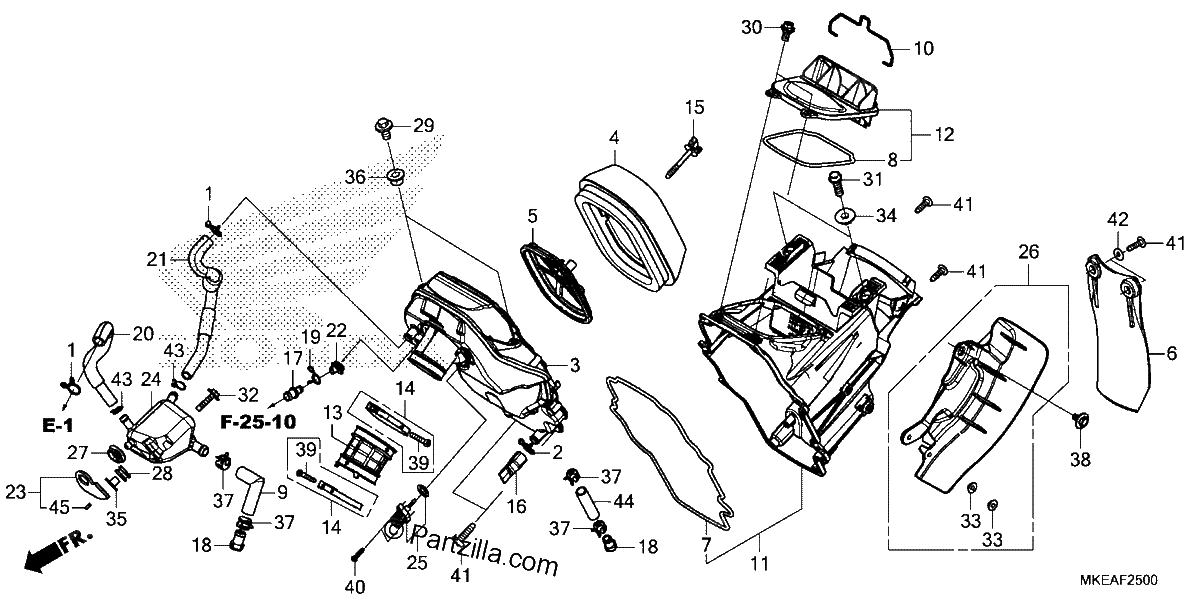

Diagrama de AIR CLEANER

Repuestos

#001
15771-551-000
CLIP, OIL DRAIN TUBE
$10.17¢5 083
1
#002
15772-551-000
CLIP, BREATHER TUBE
$2.24¢1 121
1
#003
17210-MKE-A51
HOUSING, AIR CLEANER
$140.66¢70 328
1
#004
17213-MKE-A50
ELEMENT, AIR CLEANER
$56.34¢28 169
1
#005
17214-MKE-A51
BASE ASSY., ELEMENT
$34.84¢17 423
1
#006
17218-MKE-A00
SPLASH GUARD
$45.08¢22 540
1
#007
17226-MKE-A50
SEAL, AIR CLEANER HOUSING
$9.23¢4 617
1
#008
17227-MKE-A50
SEAL, AIR CLEANER LID
$4.39¢2 197
1
#009
17227-MKJ-D00
TUBE, DRAIN
$9.71¢4 853
1
#010
17229-MKE-A50
SPRING, AIR CLEANER LID
$9.76¢4 882
1
#011
17233-MKE-A50
CASE SUB-ASSY., AIR CLEANER (RR)
$113.09¢56 546
1
#012
17234-MKE-A50
LID SUB-ASSY., AIR CLEANER
$38.18¢19 090
1
#013
17253-MKE-A50
TUBE, AIR CLEANER CONNECTING
$31.02¢15 508
1
#014
17255-MEN-A70
BAND, AIR CLEANER CONNECTING TUBE (60MM)
$18.81¢9 407
1
#015
17291-KSC-000
BOLT, ELEMENT SETTING
$7.76¢3 881
1
#016
17358-HA0-680
TUBE, DRAIN
$5.51¢2 754
1
#016
17358-HM8-000
TUBE, DRAIN
$5.51¢2 754
1
#017
17359-MAG-L00
JOINT, BREATHER TUBE
$5.88¢2 938
1
#018
17370-382-870
PLUG, BREATHER TUBE
$4.17¢2 087
1
#019
17371-174-670
CLIP, BREATHER TUBE
$2.60¢1 299
1
#020
17372-MKE-A50
TUBE A, BREATHER
$16.34¢8 171
1
#021
17373-MKE-A50
TUBE B, BREATHER
$28.62¢14 312
1
#022
17375-MKE-A50
JOINT, TUBE
$8.88¢4 439
1
#023
17521-MKE-A50
STAY, BREATHER TANK
$8.52¢4 261
1
#024
17551-MKE-A50
TANK, BREATHER
$46.21¢23 103
1
#025
37880-KWW-C01
SENSOR ASSY., AIR TEMPERATURE
$47.61¢23 805
1
#026
50335-MKE-A50
BOX Assembly., FUSE
$38.93¢19 464
1
#027
64266-MG9-770
GROMMET, SPEAKER PANEL
$3.36¢1 679
1
#028
80101-165-000
RUBBER, Rear FENDER CUSHION
$4.16¢2 081
1
#029
90020-GHB-640
BOLT, FLANGE (6X16)
$2.68¢1 340
1
#030
90101-ML3-840
BOLT, SHROUD SETTING
$4.74¢2 369
1
#031
90105-MEN-A60
BOLT (6X18)
$2.60¢1 299
1
#032
90116-MKE-A50
BOLT-WASHER (6X28)
$3.06¢1 529
1
#033
90127-KF0-770
COLLAR (6X4)
$3.82¢1 909
1
#034
90501-KZ4-J20
COLLAR A
$4.08¢2 041
1
#035
90502-GG2-000
COLLAR, RR. FENDER
$6.41¢3 203
1
#036
90503-MEY-670
COLLAR, FR. ENGINE GUARD
$4.09¢2 047
1
#037
91406-MS8-000
CLAMP, TUBE (D14.5)
$4.34¢2 168
1
#038
93404-06012-07
BOLT-WASHER (6X12)
$1.83¢914
1
#038
93404-06012-08
BOLT-WASHER (6X12)
$1.83¢914
1
#039
93500-04030-0G
SCREW, PAN (4X30)
$3.99¢1 995
1
#040
93911-25520
SCREW, TAPPING (5X20)
$0.92¢460
1
#041
93913-25580
SCREW, TAPPING (5X20)
$1.15¢575
1
#042
94103-05700
WASHER, PLAIN (5MM)
$1.12¢558
1
#043
95002-02130
CLIP, TUBE (B12.5)
$1.36¢678
1
#044
95003-37006-31
TUBE, VINYL (11X15X60) (95003-37001-60M) (NA USE ALT: 95003-37001-60M)
No Disponible
1
#045
96220-30080
ROLLER (3X8)
$0.38¢190
1
