HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

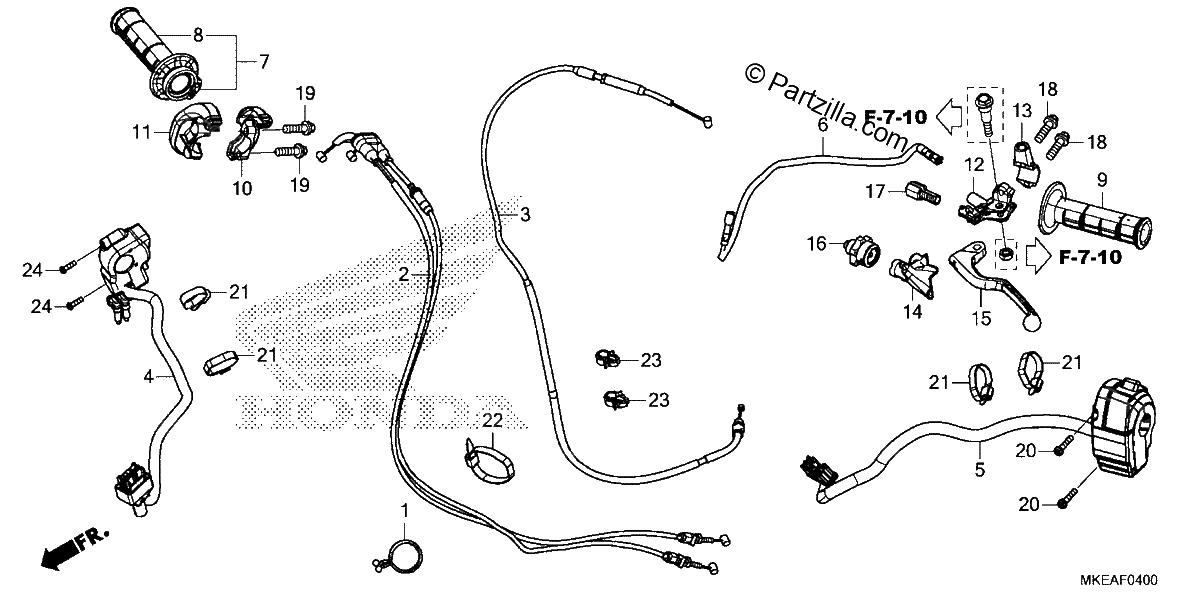

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#001
15712-PD1-811
CLIP, BREATHER TUBE PROTECTOR
$11.67¢5 836
1
#002
17910-MKE-A51
CABLE, THROTTLE
$75.13¢37 565
1
#003
22870-MKE-A51
CABLE, CLUTCH
$32.69¢16 347
1
#004
35130-MKE-A51
SWITCH Assembly., ENGINE STOP
$145.88¢72 939
1
#005
35200-MKE-A52
SWITCH Assembly., TURN SIGNAL
$158.10¢79 051
1
#006
35330-MKE-A51
SWITCH Assembly., CLUTCH
$24.28¢12 138
1
#007
53140-KRN-A30
GRIP, THROTTLE
$24.07¢12 035
1
#008
53165-KRN-A30
GRIP, R. HANDLE
$11.93¢5 963
1
#008
53165-MEN-305
GRIP, R. HANDLE (COO)
$11.93¢5 963
1
#009
53166-KRN-A30
GRIP, L HANDLE
$11.04¢5 520
1
#010
53167-MKE-A00
HOUSING, THROTTLE (UPPER)
$30.13¢15 065
1
#011
53168-MKE-A50
HOUSING, THROTTLE (LOWER)
$31.75¢15 876
1
#012
53172-MKE-A60
BRACKET, L. HANDLE LEVER
$40.33¢20 165
1
#013
53174-MKE-A50
HOLDER, L LEVER BRACKET
$15.09¢7 544
1
#014
53177-MKE-A60
COVER, L. HANDLE LEVER
$10.89¢5 445
1
#015
53178-MEN-A01
LEVER, L. HANDLEBAR
$26.48¢13 242
1
#016
53179-MEN-671
DIAL, CLUTCH CABLE ADJUSTING
$12.03¢6 015
1
#017
53192-MEN-670
BOLT, WIRE ADJUSTING
$8.83¢4 416
1
#018
90020-GHB-670
BOLT, FLANGE (6X22)
$2.75¢1 374
1
#019
90021-GHB-660
BOLT, FLANGE (6X20)
$2.68¢1 340
1
#020
90508-MGE-D00
SCREW-WASHER (5X25)
$1.53¢765
1
#021
90650-KW3-000
BAND, WIRE
$4.99¢2 496
1
#022
90651-KV6-003
BAND, WIRE (165MM) (BLACK)
$3.36¢1 679
1
#023
90682-MKE-A01
CLIP, CABLE
$3.62¢1 811
1
#024
93892-04016-07
SCREW-WASHER (4X16)
$0.86¢431
1
#024
93892-04016-08
SCREW-WASHER (4X16)
$0.86¢431
1
