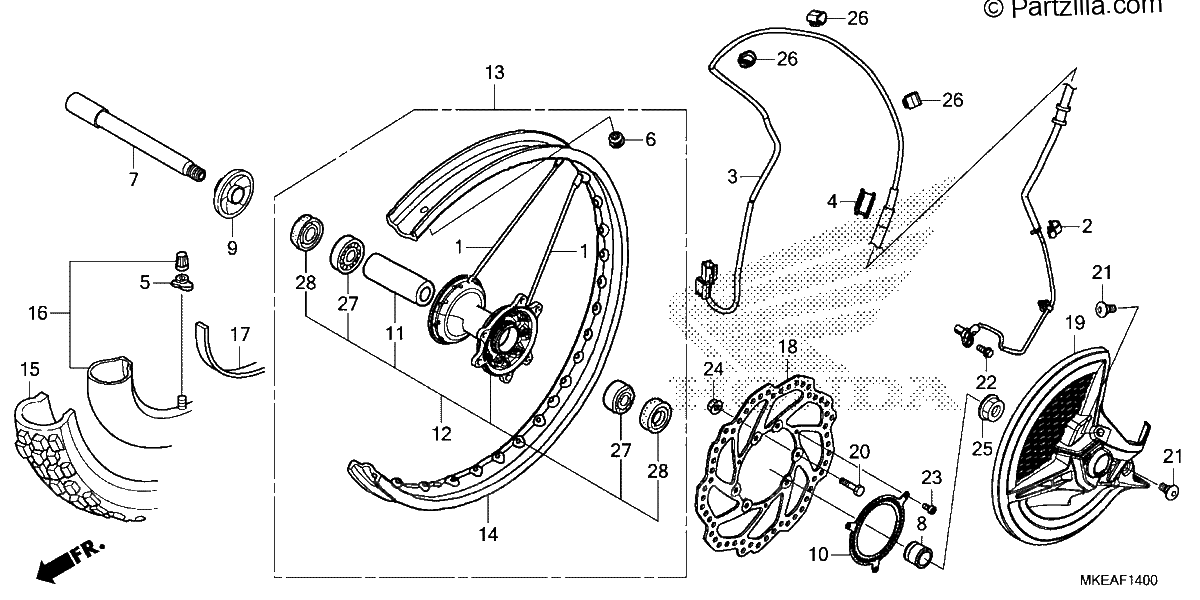

FRONT WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SPOKE SET, FR. (240MM)
$5.01¢2 507
#002
CLAMP, ABS WIRE (D12)
$3.22¢1 610
#003
SENSOR, FR. WHEEL SPEED
$223.23¢111 613
#004
CLIP, WIRE
$4.94¢2 472
#005
CAP, VALVE
$11.18¢5 589
#006
CAP, RIM HOLE
$4.68¢2 340
#007
AXLE, FR. WHEEL
$54.61¢27 307
#008
COLLAR, L. FR. WHEEL
$18.66¢9 332
#009
COLLAR, R. FR. WHEEL
$20.54¢10 269
#010
RING, FR. PULSER
$29.16¢14 582
#011
COLLAR, FR. DISTANCE
$26.19¢13 093
#012
HUB SUB-ASSY., FR. WHEEL
$208.54¢104 271
#013
WHEEL SUB-Assembly., Front.
$980.19¢490 095
#014
RIM, Front WHEEL (21X1.60)
$323.24¢161 621
#015
TIRE, Front. (80/100-21M/C 51P) (IRC)
$157.49¢78 746
#016
TUBE, TIRE (3.00-21) (IRC)
$42.18¢21 091
#016
TUBE, TIRE (3.00-21) (IRC)
$42.18¢21 091
#017
FLAP, TIRE (IRC)
$3.36¢1 679
#018
DISK, Front BRAKE
$327.20¢163 599
#019
COVER, FR. DISK *NH1*(BLACK)
$38.71¢19 354
#020
BOLT, DISK (6X19)
$5.57¢2 783
#021
BOLT, FR. DISK COVER
$3.45¢1 725
#022
BOLT, FLANGE (6X14)
$2.62¢1 311
#023
BOLT, TORX (5X8)
$3.36¢1 679
#024
NUT, U (6MM) (FUSE RASHI)
$4.54¢2 271
#025
NUT, FR. AXLE
$18.14¢9 068
#026
BAND, RUBBER (35MM)
$3.36¢1 679
#027
BEARING, RADIAL BALL (6904)
$26.22¢13 110
#028
OIL SEAL (26X37X7) (ARAI)
$12.14¢6 072
