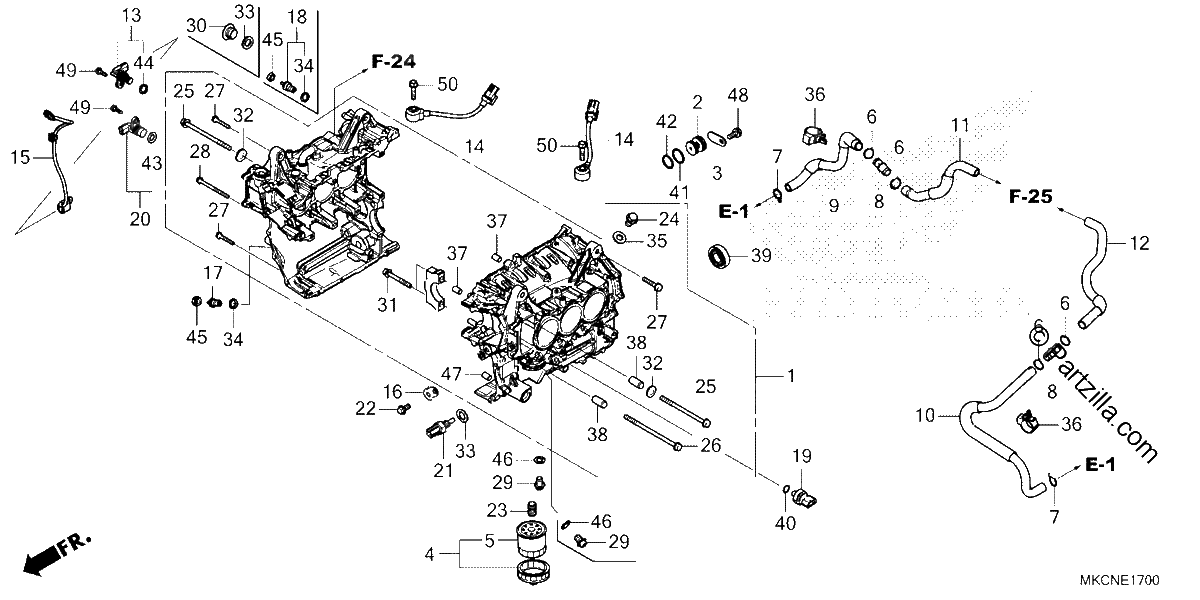

CYLINDER BLOCK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
BLOCK ASSY., CYLINDER
$4117.85¢2 058 925
#002
PLUG, SEALING
$18.29¢9 143
#003
PLATE, MAIN GALLERY
$3.22¢1 610
#004
FILTER SET, OIL
$21.21¢10 603
#005
FILTER, OIL (WAKO FILTER)
$16.54¢8 269
#006
CLIP B, TUBE
$2.66¢1 328
#007
CLIP, SUB-TANK HOSE
$4.89¢2 444
#008
JOINT (TWO-WAY)
$11.26¢5 629
#009
TUBE, R. AIR INDUCTION A
$26.47¢13 237
#010
TUBE, L. AIR INDUCTION A
$35.56¢17 779
#011
TUBE, R. AIR INDUCTION B
$19.43¢9 717
#012
TUBE, L. AIR INDUCTION B
$25.07¢12 535
#014
SENSOR, KNOCK
$67.56¢33 781
#016
STAY, HARNESS CLIP
$5.45¢2 726
#017
SWITCH ASSY., NEUTRAL
$25.62¢12 811
#018
SWITCH ASSY., NEUTRAL (TEC)
$20.34¢10 172
#019
SENSOR, OIL PRESSURE
$202.76¢101 378
#022
BOLT, FLANGE (6X12)
$3.13¢1 564
#023
BOSS, OIL FILTER
$9.27¢4 635
#024
BOLT, SEALING (8MM)
$4.66¢2 329
#025
BOLT, FLANGE (8X120)
$5.96¢2 978
#026
BOLT, FLANGE (8X140)
$6.37¢3 186
#027
BOLT, FLANGE (6X35)
$2.68¢1 340
#028
BOLT, FLANGE (6X75)
$3.68¢1 840
#029
BOLT, DRAIN PLUG (12X15)
$6.18¢3 088
#031
BOLT-WASHER (10X80)
$5.30¢2 651
#032
WASHER, SEALING (8MM)
$3.09¢1 547
#034
WASHER, NEUTRAL
$2.28¢1 138
#035
WASHER, SEALING (8MM)
$3.69¢1 846
#036
CLAMP, TUBE (D18)
$2.94¢1 472
#037
PIN, DOWEL (10X16)
$4.80¢2 398
#038
PIN, DOWEL (12X37)
$7.54¢3 772
#039
BEARING, RADIAL BALL (6203U SPL.)
$13.57¢6 785
#040
O-RING (13X1.5)
$1.92¢960
#041
O-RING (18.5X1.9) (NOK)
$3.44¢1 719
#042
O-RING (16.7X1.9) (NOK)
$3.58¢1 788
#045
NUT, HEX. (4MM)
$1.23¢615
#046
WASHER, DRAIN PLUG (12MM)
$1.45¢724
#047
PIN, DOWEL (8X14)
$2.66¢1 328
#048
BOLT, FLANGE (6X14)
$1.13¢564
#050
BOLT, FLANGE (8X30)
$1.33¢667
