REVERSE MOTOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

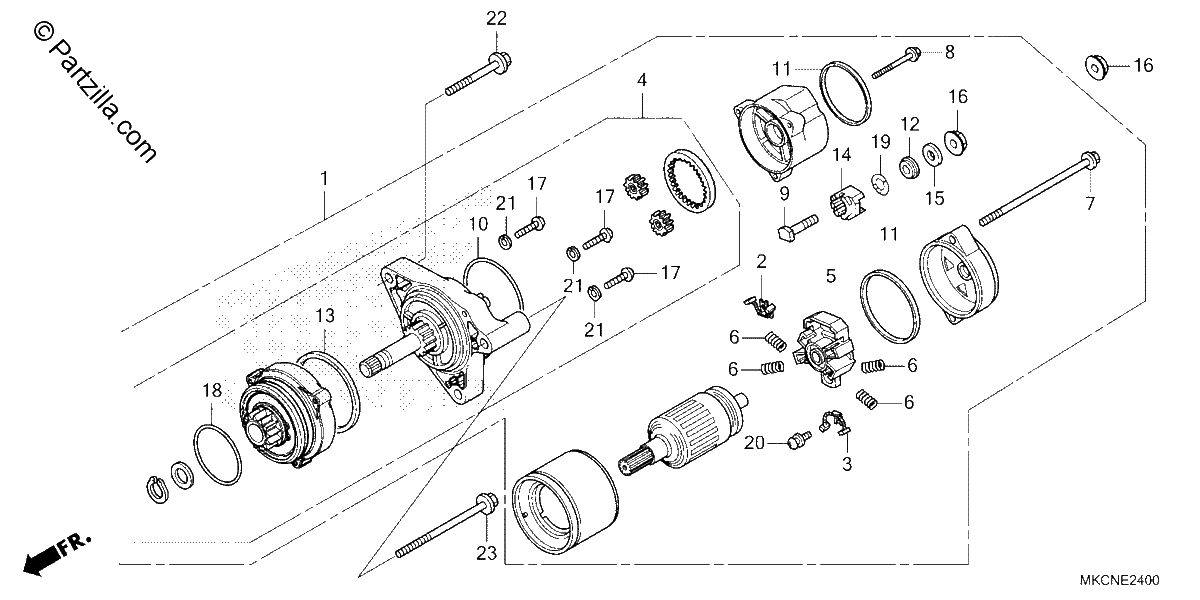

Diagrama de REVERSE MOTOR

Repuestos

#001
31200-MKC-A01
MOTOR ASSY., REVERSE
$772.86¢386 429
1
#002
31201-MEW-921
BRUSH SET A, CARBON
$8.68¢4 341
1
#003
31202-MEW-921
BRUSH SET B, CARBON
$13.98¢6 992
1
#004
31202-MKC-A01
GEAR ASSY.
$445.84¢222 922
1
#005
31203-MEW-921
HOLDER, BRUSH
$8.35¢4 174
1
#006
31204-MEW-921
SPRING, CARBON BRUSH
$13.58¢6 791
1
#007
31205-HM8-B61
BOLT SET
$4.96¢2 478
1
#008
31205-MKC-A01
BOLT (M5X30)
$2.43¢1 213
1
#009
31206-MEW-921
BOLT, TERMINAL
$3.36¢1 679
1
#010
31207-179-711
RING, SEAL
$4.71¢2 357
1
#011
31207-HP5-601
RING
$2.54¢1 271
1
#012
31208-MEW-921
INSULATOR
$9.07¢4 537
1
#013
31208-MG9-004
RING
$6.58¢3 289
1
#014
31209-MEW-921
STOPPER, TERMINAL
$13.45¢6 727
1
#015
31210-MEW-921
WASHER
$2.15¢1 075
1
#016
90071-MB0-000
NUT-WASHER (6MM)
$2.45¢1 225
1
#017
91001-MN5-008
BOLT (5X39)
$3.74¢1 869
1
#018
91309-MN5-008
O-RING (59.6X2.4)
$9.31¢4 658
1
#019
91320-MB0-000
O-RING (4X2)
$2.86¢1 432
1
#020
93892-05012-08
SCREW-WASHER (5X12)
$1.36¢678
1
#021
94111-05000
WASHER, SPRING (5MM)
$1.33¢667
1
#022
95701-08038-00
BOLT, FLANGE (8X38)
$1.79¢897
1
#023
95701-08060-00
BOLT, FLANGE (8X60)
$1.79¢897
1
