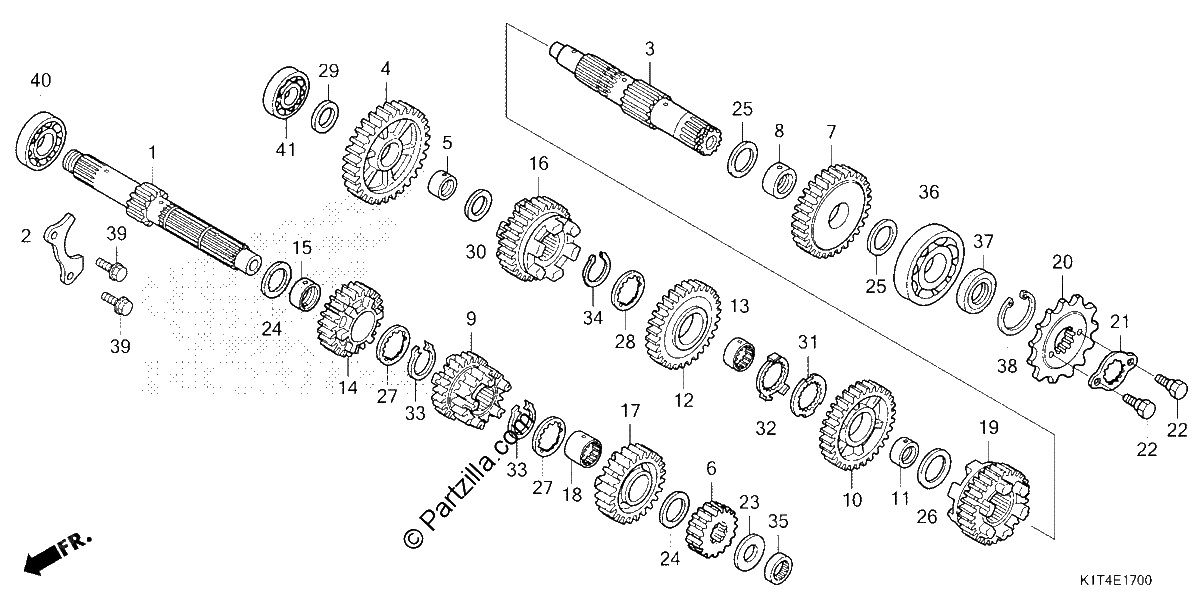

TRANSMISSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
MAINSHAFT (13T) (A)(WHITE)
$36.58¢18 288
#001
MAINSHAFT (13T) (B)(BLUE)
$36.58¢18 288
#002
PLATE, BEARING SETTING
$3.01¢1 506
#003
COUNTERSHAFT
$50.06¢25 031
#004
GEAR, COUNTERSHAFT FIRST (46T)
$24.55¢12 275
#005
COLLAR (20X23X10.5)
$16.95¢8 475
#006
GEAR, MAINSHAFT SECOND (16T)
$12.28¢6 138
#007
GEAR, COUNTERSHAFT SECOND (36T)
$20.54¢10 269
#008
COLLAR (22X25X11)
$12.81¢6 406
#009
GEAR, MAINSHAFT THIRD & FOURTH(20T/26T)
$43.85¢21 925
#010
GEAR, COUNTERSHAFT THIRD (33T)
$21.79¢10 894
#011
COLLAR (25X28X10)
$13.61¢6 806
#012
GEAR, COUNTERSHAFT FOURTH (35T)
$22.40¢11 200
#013
COLLAR, SPLINE (25X10)
$20.13¢10 063
#014
GEAR, MAINSHAFT FIFTH (26T)
$23.08¢11 538
#015
BUSH (20X23X17.4)
$38.94¢19 469
#016
GEAR, COUNTERSHAFT FIFTH (29T)
$37.69¢18 844
#017
GEAR, MAINSHAFT SIXTH (27T)
$25.74¢12 869
#018
COLLAR, SPLINE (23MM)
$26.99¢13 494
#019
GEAR, COUNTERSHAFT SIXTH (25T)
$39.29¢19 644
#020
SPROCKET, DRIVE (14T)
$14.44¢7 219
#021
PLATE, FIXING
$3.30¢1 650
#022
BOLT, DRIVE SPROCKET FIXING
$5.59¢2 794
#023
WASHER (17X26X1.0)
$1.60¢800
#024
WASHER (20X27X1.0)
$1.64¢819
#025
WASHER (22X29X1.0)
$1.60¢800
#026
WASHER (25X32X1.0)
$1.64¢819
#027
WASHER, SPLINE (20X26X1.6)
$0.83¢413
#028
WASHER, SPLINE (25X31X1.0)
$1.38¢688
#029
WASHER (17X28X1.0)
$1.64¢819
#030
WASHER B, THRUST (20MM)
$1.02¢513
#031
WASHER, SPLINE (25X42X1.6)
$1.90¢950
#032
WASHER, LOCK (25MM)
$40.38¢20 188
#033
CIRCLIP, OUTER (20MM)
$10.54¢5 269
#034
CIRCLIP (OUTER) (25MM)
$8.85¢4 425
#035
BEARING, NEEDLE (17X27X13) (NTN)
$24.36¢12 181
#036
BEARING, RADIAL BALL (63/22)
$24.66¢12 331
#037
OIL SEAL (22X36X5)
$3.65¢1 825
#038
CIRCLIP, INNER (37MM)
$2.81¢1 406
#039
BOLT, FLANGE (6X14)
$1.23¢613
#040
BEARING, RADIAL BALL (6304)
$16.71¢8 356
#041
BEARING, RADIAL BALL (6203U)
$21.74¢10 869
