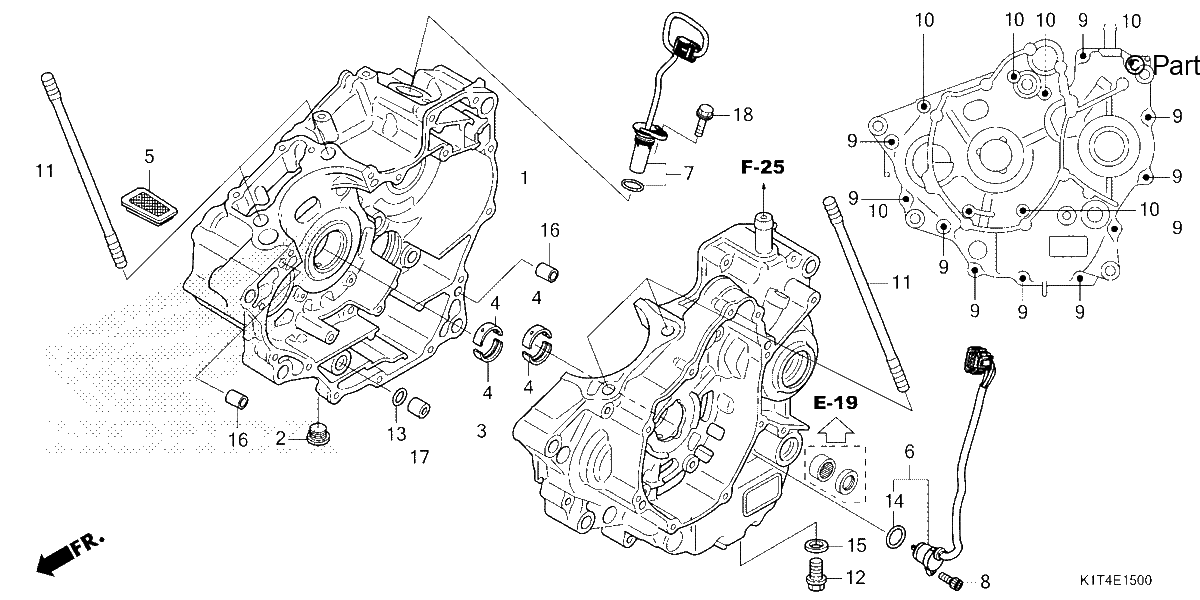

CRANKCASE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CRANKCASE, R.
$217.61¢108 807
#002
BOLT, SEALING (16MM)
$3.74¢1 869
#003
CRANKCASE, Left
$218.32¢109 158
#004
BEARING A, CRANKSHAFT (BLUE)
$12.58¢6 290
#004
BEARING B, CRANKSHAFT (BLACK)
$12.58¢6 290
#004
BEARING C, CRANKSHAFT (BROWN)
$12.58¢6 290
#004
BEARING D, CRANKSHAFT (OVER SIZE) (RED)
$14.80¢7 400
#004
BEARING E, CRANKSHAFT (OVER SIZE) (GREEN)
$14.80¢7 400
#004
BEARING F, CRANKSHAFT (OVER SIZE) (YELLOW)
$14.80¢7 400
#004
BEARING G, CRANKSHAFT (OVER SIZE) (PINK)
$14.95¢7 475
#005
SCREEN, OIL FILTER
$3.36¢1 679
#006
SWITCH ASSY., CHANGE
$100.07¢50 037
#007
SENSOR ASSY., SPEED
$54.37¢27 186
#008
BOLT, SOCKET KNOCK (6MM)
$8.41¢4 203
#009
BOLT, FLANGE (6X40)
$0.74¢368
#010
BOLT, FLANGE (6X70) (NSHF)
$1.02¢512
#011
BOLT, STUD (10X178)
$4.15¢2 076
#012
BOLT, DRAIN PLUG (12MM)
$1.13¢564
#013
O-RING (11.8X1.9)
$0.53¢265
#014
O-RING (16.5X2.5)
$2.32¢1 162
#015
WASHER, DRAIN PLUG (12MM)
$1.45¢724
#016
PIN, DOWEL (8X14)
$2.66¢1 328
#017
PIN A, DOWEL (12X16)
$2.69¢1 346
#018
BOLT, FLANGE (6X18)
$1.92¢960
