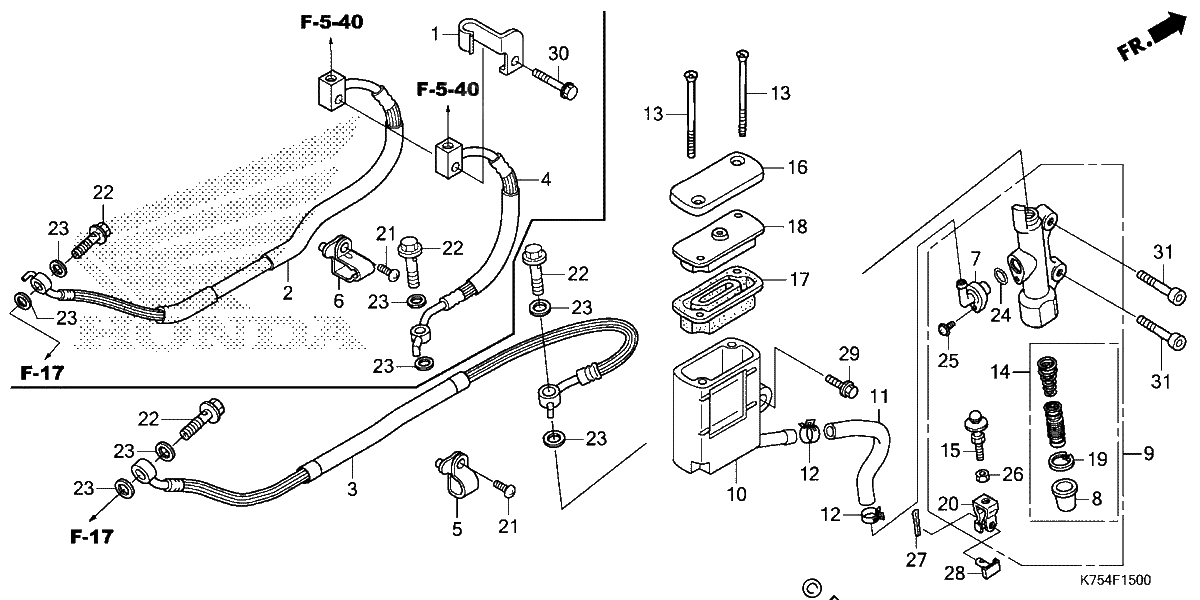

REAR BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP, SPEED SENSOR WIRE
$8.18¢4 088
#002
HOSE A, RR. BRAKE
$40.12¢20 062
#004
HOSE B, RR. BRAKE
$30.60¢15 301
#006
GUIDE, Rear BRAKE HOSE
$7.90¢3 950
#007
CONNECTOR
$15.00¢7 498
#008
BOOT
$10.80¢5 399
#009
MASTER CYLINDER SUB-Assembly., Rear BRAKE (COO) (NISSIN)
$139.02¢69 512
#009
MASTER CYLINDER SUB-ASSY., RR.BRAKE (NISSIN)
$139.02¢69 512
#010
CUP, MASTER CYLINDER OIL
$7.34¢3 669
#011
HOSE, RR. MASTER CYLINDER
$7.01¢3 507
#012
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
#013
SCREW, FLAT (4X60)
$1.07¢535
#014
PISTON SET, MASTER CYLINDER (NISSIN)
$49.67¢24 834
#015
ROD, PUSH
$23.49¢11 747
#016
CAP, MASTER CYLINDER
$19.52¢9 758
#017
DIAPHRAGM
$8.13¢4 065
#018
PLATE, DIAPHRAGM
$6.39¢3 197
#019
CIRCLIP
$2.30¢1 150
#020
JOINT, BRAKE ROD
$15.87¢7 935
#021
SCREW, PAN (5X12)
$0.98¢489
#022
BOLT, OIL (10X22)
$8.18¢4 088
#023
WASHER, OIL BOLT
$4.46¢2 231
#024
O-RING (14.8X2.4)
$3.04¢1 518
#026
NUT, HEX. (8MM)
$1.47¢736
#027
PIN, SPLIT (2.0X15)
$1.23¢615
#028
PIN D, JOINT
$4.74¢2 369
#029
BOLT, FLANGE (6X14)
$1.41¢707
#030
BOLT, FLANGE (6X30)
$2.13¢1 064
#031
BOLT, SOCKET (6X20)
$1.53¢765
