MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

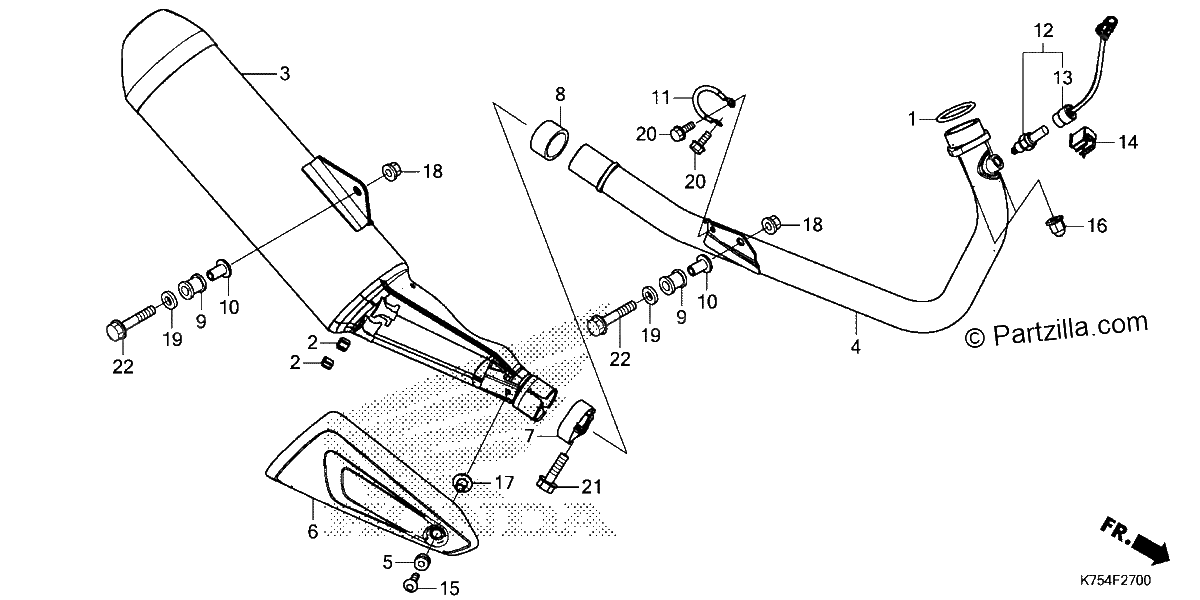

Diagrama de MUFFLER

Repuestos

#001
18291-MEB-670
GASKET, EX. PIPE
$5.49¢2 743
1
#002
18293-MN0-000
RUBBER, PROTECTOR
$2.53¢1 265
1
#003
18310-K75-305
MUFFLER (COO)
$961.99¢480 993
1
#003
18310-K75-A50
MUFFLER
$961.99¢480 993
1
#004
18320-K75-A50
PIPE, EX.
$158.72¢79 362
1
#005
18320-196-000
RUBBER A, PROTECTOR
$3.16¢1 581
1
#006
18355-K33-D00
COVER, MUFFLER
$51.67¢25 835
1
#007
18373-K33-D00
BAND, MUFFLER
$20.64¢10 321
1
#008
18392-KYJ-901
GASKET, MUFFLER
$7.59¢3 795
1
#009
18421-K75-A50
RUBBER, MUFFLER MOUNTING
$7.24¢3 622
1
#010
18422-KAF-700
COLLAR, MUFFLER MOUNTING
$6.60¢3 301
1
#010
18422-MAL-600
COLLAR, MUFFLER MOUNTING
$6.60¢3 301
1
#011
32200-K33-D00
SUB-HARNESS, OXYGEN SENSOR GROUND
$3.00¢1 501
1
#012
36532-K33-D01
SENSOR, OXYGEN
$119.90¢59 950
1
#013
36533-K33-D01
WIRE, OXYGEN SENSOR
$60.25¢30 124
1
#014
36538-K33-D00
COVER, SENSOR (O2)
$15.01¢7 504
1
#015
90118-MGZ-J00
SCREW, PAN (6X20)
$1.26¢633
1
#016
90304-KPH-700
NUT, HEX CAP (8MM)
$2.01¢1 006
1
#017
90502-KGB-610
COLLAR, HEAD SIDE COVER
$2.51¢1 254
1
#018
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#019
94103-08000
WASHER, PLAIN (8MM)
$0.77¢385
1
#020
95701-06010-00
BOLT, FLANGE (6X10)
$1.49¢747
1
#021
95701-08038-02
BOLT, FLANGE (8X38)
$4.74¢2 369
1
#022
95701-08050-00
BOLT, FLANGE (8X50)
$2.69¢1 346
1
