HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

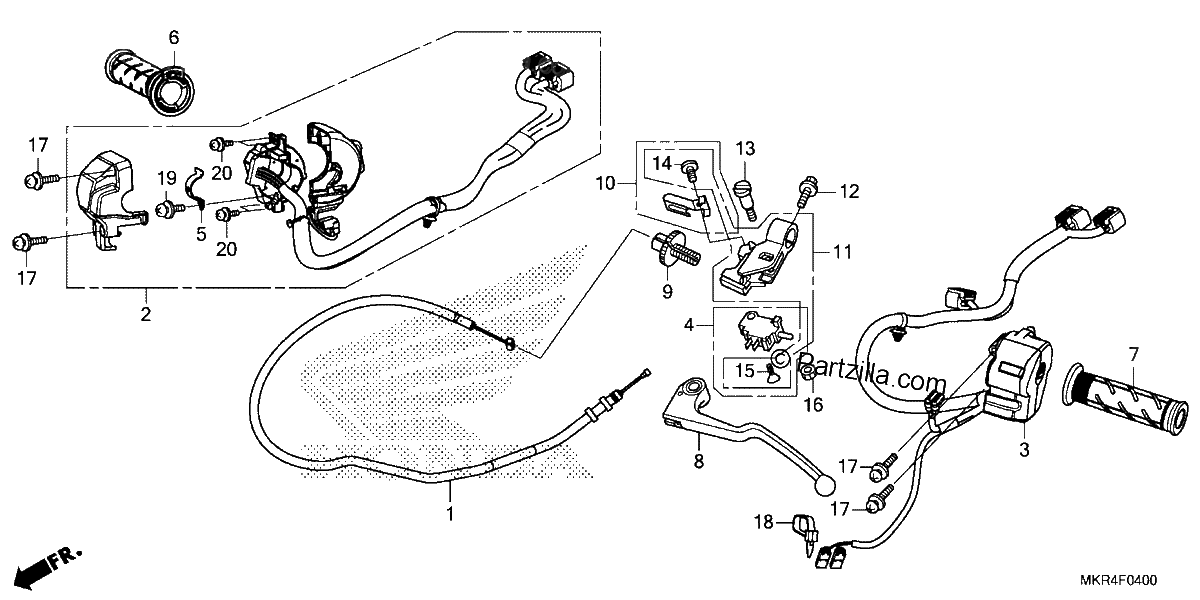

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#001
22870-MKR-D10
CABLE, CLUTCH
$32.11¢16 056
1
#002
35135-MKR-D32
SWITCH UNIT, STARTER & ENGINE STOP
$306.79¢153 394
1
#003
35200-MKR-D32
SWITCH Assembly., TURN SIGNAL
$451.66¢225 831
1
#004
35335-MCJ-751
SWITCH SET, CLUTCH
$16.56¢8 281
1
#005
37971-MKR-D31
PLATE A, SETTING
$5.83¢2 913
1
#006
53140-MKR-D31
GRIP Assembly., THROTTLE
$36.79¢18 394
1
#006
53140-MKR-D32
GRIP Assembly., THROTTLE
$36.79¢18 394
1
#007
53166-MY9-890
GRIP, L. HANDLE
$21.13¢10 563
1
#008
53182-MKR-D31
LEVER, L HANDLE
$44.20¢22 100
1
#009
53183-MCJ-750
BOLT, CABLE ADJUSTING
$9.94¢4 969
1
#010
53190-MCJ-751
SPRING SET, CLUTCH LEVER
$5.35¢2 675
1
#011
53195-MCJ-751
BRACKET SET, CLUTCH LEVER
$29.84¢14 919
1
#012
90021-GHB-660
BOLT, FLANGE (6X20)
$2.91¢1 456
1
#013
90122-MCJ-750
BOLT, LEVER PIVOT
$5.83¢2 913
1
#014
90123-MCJ-751
SCREW, PAN (4X10)
$1.19¢594
1
#015
90124-MCJ-752
SCREW, FLAT (3X16)
$0.80¢400
1
#016
90301-MCJ-750
NUT, U (6MM)
$2.91¢1 456
1
#017
90508-MGE-D00
SCREW-WASHER (5X25)
$1.66¢831
1
#018
90650-KV6-003
BAND, WIRE (95MM)
$3.77¢1 888
1
#019
93892-05016-08
SCREW-WASHER (5X16)
$1.45¢725
1
#020
93892-04008-08
SCREW-WASHER (4X8)
$1.47¢737
1
#020
93892-04008-18
SCREW-WASHER (4X8)
$1.47¢737
1
