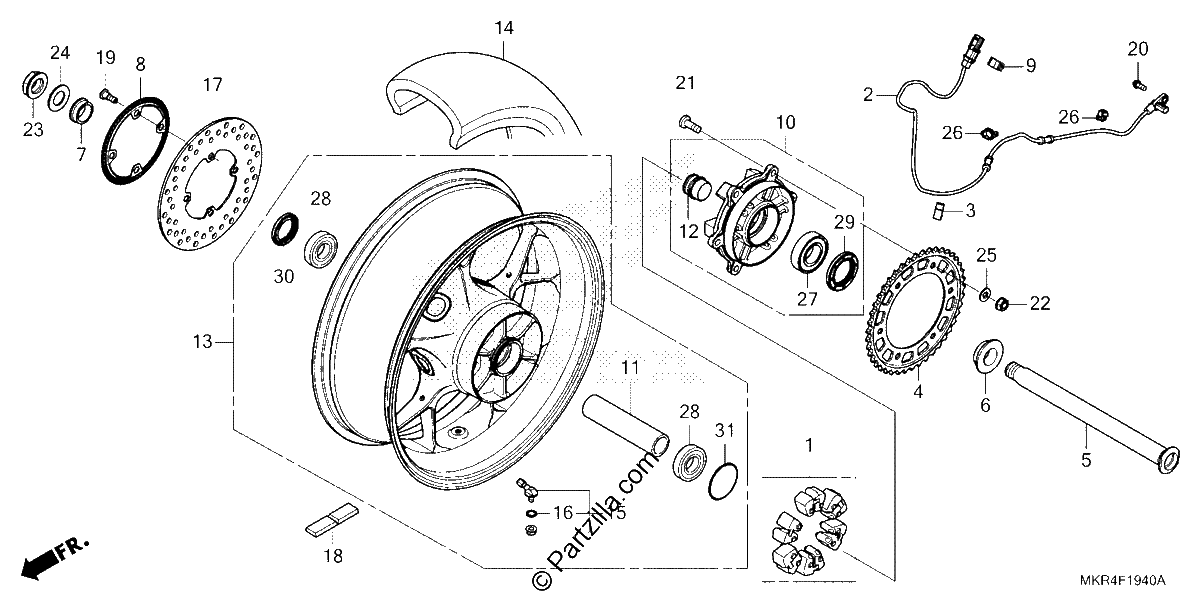

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$58.91¢29 457
#002
SENSOR, Rear WHEEL SPEED
$224.22¢112 108
#003
CLAMP, ABS WIRE (D12)
$3.22¢1 610
#004
SPROCKET, FINAL DRIVEN (43T)
$91.60¢45 799
#005
AXLE, Rear WHEEL
$88.85¢44 425
#006
COLLAR, Rear WHEEL SIDE
$37.89¢18 946
#007
COLLAR, RR. BRAKE SIDE
$30.54¢15 272
#008
RING, Rear PULSER
$47.06¢23 529
#009
CLIP, CONNECTOR (DARK BLUE)
$3.45¢1 725
#010
FLANGE SUB-ASSY., RR. DRIVEN
$248.95¢124 476
#011
COLLAR, Rear AXLE DISTANCE
$51.43¢25 714
#012
COLLAR B, RR. WHEEL DISTANCE
$29.20¢14 599
#013
WHEEL SUB-Assembly., Rear. (TYPE3)
$1231.03¢615 515
#014
TIRE, RR. (200/55ZR17 M/C 78W)(BS)
$319.75¢159 873
#014
TIRE, Rear. (200/55ZR17 M/C 78W)(PIRELLI)
$445.11¢222 554
#015
VALVE ASSY., CLAMP IN
$17.71¢8 855
#016
O-RING
$1.81¢903
#017
DISK, Rear BRAKE
$304.90¢152 450
#018
WEIGHT, BALANCE (10G)
$3.60¢1 800
#018
WEIGHT, BALANCE (15G)
$4.30¢2 151
#018
WEIGHT, BALANCE (20G)
$4.81¢2 403
#019
BOLT, DISK (8X25)
$3.66¢1 829
#020
BOLT, FLANGE (6X14)
$2.74¢1 368
#021
BOLT (10X28.5)
$4.57¢2 283
#022
NUT, U (10MM)
$4.83¢2 415
#023
NUT, U FLANGE (24MM)
$25.22¢12 610
#024
WASHER (24.1X43X2.5)
$6.73¢3 364
#025
WASHER (10MM)
$3.32¢1 662
#026
CLIP, CABLE (12MM)
$2.64¢1 322
#027
BEARING, ANGULAR BALL (31X63X16) (FUJIKOSHI)
$66.87¢33 436
#028
BEARING, RADIAL BALL (60/28)
$19.99¢9 994
#029
DUST SEAL (40X63X7) (NOK)
$18.76¢9 378
#030
DUST SEAL (36X52X7) (NOK)
$11.67¢5 836
#031
O-RING (57X2) (ARAI)
$5.83¢2 915
