RIGHT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

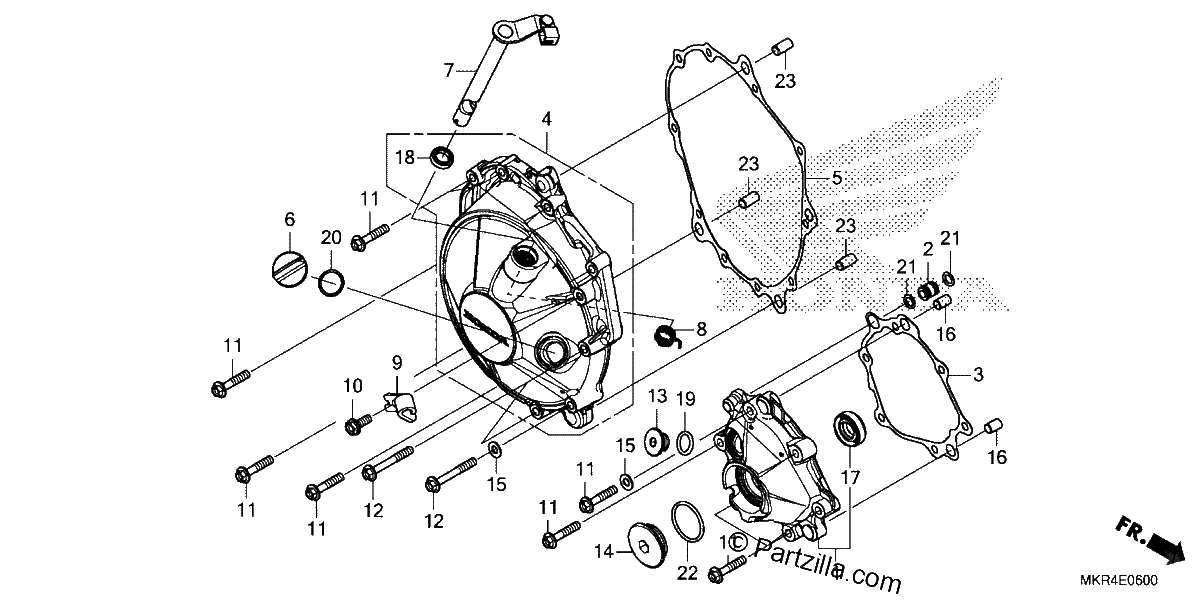

Diagrama de RIGHT CRANKCASE COVER

Repuestos

#001
11310-MKR-D10
COVER, R. CRANKCASE
$329.16¢164 581
1
#002
11313-MKR-D10
COLLAR, Right COVER
$8.61¢4 306
1
#003
11315-MKR-D11
GASKET, R. CRANK COVER
$11.19¢5 594
1
#004
11330-MKR-D10
COVER, CLUTCH
$423.04¢211 519
1
#005
11335-MKR-D11
GASKET, CLUTCH COVER
$20.35¢10 175
1
#006
15611-KA4-710
CAP, OIL FILLER
$16.71¢8 356
1
#007
22810-MKR-D10
LEVER, CLUTCH
$72.75¢36 375
1
#008
22815-MFL-000
SPRING, CLUTCH LEVER
$3.65¢1 825
1
#009
22821-MKR-D10
RECEIVER, CLUTCH CABLE
$8.56¢4 281
1
#010
90026-GHB-640
BOLT, FLANGE (6X16)
$2.76¢1 381
1
#011
90027-GHB-700
BOLT, FLANGE (6X30)
$2.97¢1 487
1
#012
90027-GHB-750
BOLT, FLANGE (6X45) (NOT AVAILABLE)
$3.65¢1 825
1
#013
90084-MKF-D40
CAP (14MM)
$14.05¢7 025
1
#014
90087-MKF-D40
CAP (30MM)
$16.20¢8 100
1
#015
90488-425-000
WASHER, SEALING (6MM)
$2.92¢1 463
1
#016
90701-MV9-670
PIN, DOWEL (10X16)
$5.21¢2 606
1
#017
91202-MKR-D11
OIL SEAL (14X28X7) (ARAI)
$9.40¢4 700
1
#018
91204-KK0-003
OIL SEAL (12X18X5) (ARAI)
$6.13¢3 063
1
#019
91303-377-000
O-RING (13.8X2.5)
$4.15¢2 075
1
#020
91307-KF0-003
O-RING (18X3) (ARAI)
$3.65¢1 825
1
#021
91311-PA9-004
O-RING (7.7X1.9) (NOK)
$3.76¢1 881
1
#022
91356-425-005
O-RING (29.7X2.4) (NOK)
$3.65¢1 825
1
#023
94303-10200
PIN, DOWEL (10X20)
$2.52¢1 263
1
