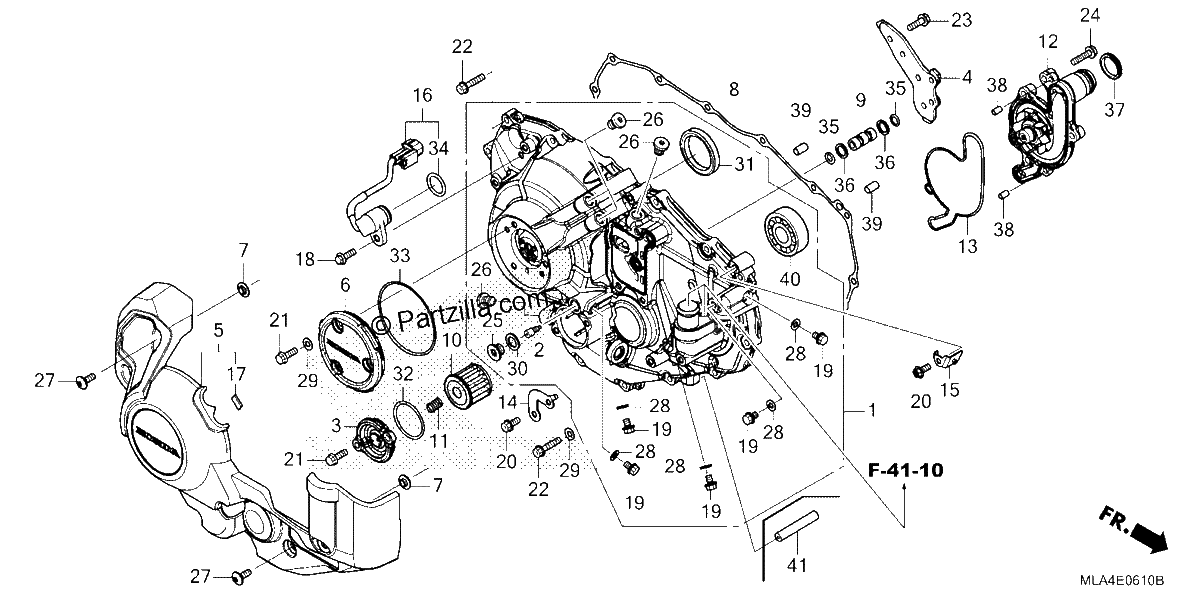

RIGHT CRANKCASE COVER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
COVER, R. CRANKCASE
$547.02¢273 510
#002
ORIFICE
$21.26¢10 632
#003
COVER, OIL FILTER
$34.15¢17 077
#004
COVER (INNER)
$53.92¢26 962
#005
COVER Assembly., Right ENGINE SIDE (WL)
$129.72¢64 860
#006
CAP, R. COVER
$103.56¢51 779
#007
COLLAR
$3.36¢1 679
#008
GASKET, R. CRANKCASE COVER
$52.01¢26 007
#009
PIPE, OIL PASSAGE
$11.58¢5 790
#010
ELEMENT, OIL FILTER
$9.11¢4 554
#011
SPRING, OIL FILTER
$3.10¢1 553
#012
WATER PUMP
$232.85¢116 426
#013
GASKET, WATER PUMP BODY
$11.40¢5 698
#014
STAY, HARNESS CLIP
$5.62¢2 812
#015
STAY, HARNESS CLIP
$4.34¢2 168
#016
SENSOR ASSY., ANGLE (40DEGREE)
$217.61¢108 807
#017
RUBBER, HANDLE COVER
$1.41¢707
#018
BOLT, KNOCK (6MM)
$3.42¢1 708
#019
BOLT, FLANGE (6X8)
$2.64¢1 322
#020
BOLT, FLANGE (6X14)
$2.64¢1 322
#021
BOLT, FLANGE (6X18)
$2.64¢1 322
#022
BOLT, FLANGE (6X28)
$2.59¢1 294
#023
BOLT, FLANGE (6X20)
$2.59¢1 294
#024
BOLT, FLANGE (6X25)
$2.62¢1 311
#025
BOLT, SEALING (12X8)
$3.92¢1 961
#026
BOLT, SPECIAL (10MM)
$5.04¢2 519
#027
BOLT, SOCKET SPECIAL (6X17)
$2.86¢1 432
#028
WASHER, SEALING (6MM)
$2.21¢1 104
#029
WASHER, SEALING (6MM)
$2.69¢1 346
#030
WASHER (12MM)
$3.47¢1 737
#031
BEARING, RADIAL BALL (40X52X7)
$35.94¢17 969
#032
O-RING (39.8X2.2) (ARAI)
$5.98¢2 990
#033
O-RING (81X2.2)
$4.63¢2 317
#034
O-RING (16.5X2.5)
$5.69¢2 846
#035
O-RING (7.7X1.9)
$3.09¢1 547
#036
RING, BACK-UP (8X11)
$3.96¢1 978
#037
SEAL, WATER PIPE
$2.85¢1 426
#038
PIN, DOWEL (6X10)
$2.66¢1 328
#039
PIN, DOWEL (8X14)
$2.66¢1 328
#040
BEARING, RADIAL BALL (6304)
$15.38¢7 688
#041
BULK HOSE, VACUUM (3.5X1000) OEM CUT SIZE: (3.5X50)
$9.28¢4 640
