MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

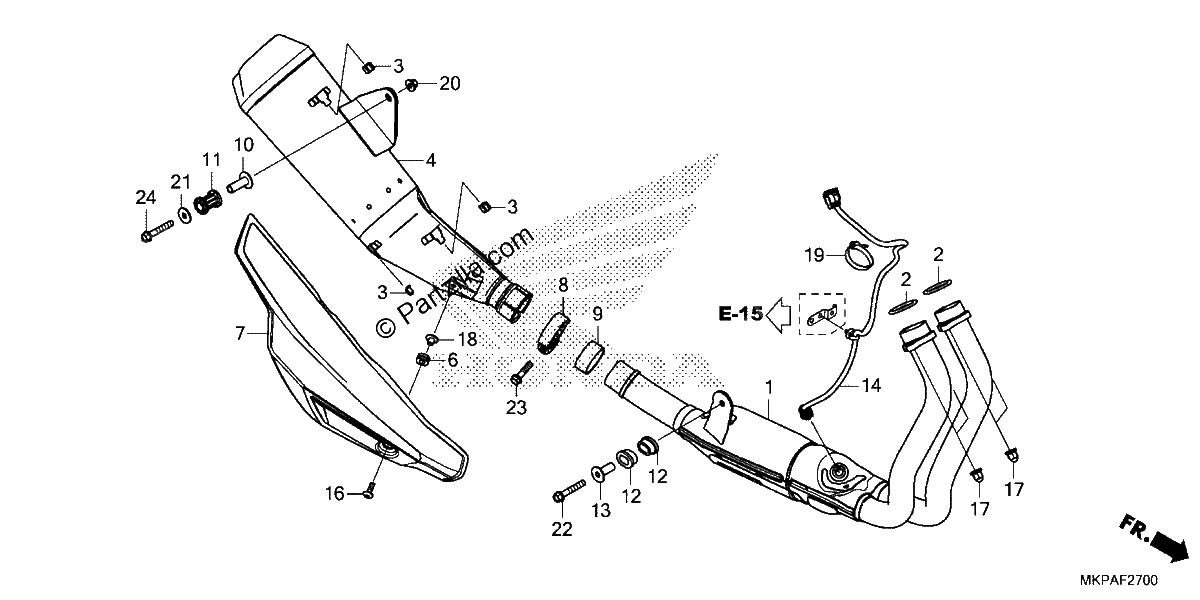

Diagrama de MUFFLER

Repuestos

#001
18150-MKP-AN0
PIPE, EX.
$2089.90¢1 044 950
1
#002
18291-MN4-920
GASKET, EX. PIPE
$6.44¢3 219
1
#003
18293-MN0-000
RUBBER, PROTECTOR
$2.75¢1 375
1
#004
18310-MKP-DN0
MUFFLER
$389.86¢194 931
1
#006
18320-196-000
RUBBER A, PROTECTOR
$3.44¢1 719
1
#007
18350-MJW-J00
COVER, MUFFLER
$120.80¢60 400
1
#008
18376-413-000
BAND, L. RR. MUFFLER
$42.63¢21 313
1
#009
18391-MJW-J01
GASKET, MUFFLER
$12.60¢6 300
1
#010
18420-MGZ-J00
COLLAR, MUFFLER MOUNTING
$6.08¢3 038
1
#011
18421-MGZ-J00
RUBBER, MUFFLER MOUNTING
$2.40¢1 200
1
#012
18422-MGZ-J00
RUBBER, EX. PIPE MOUNTING
$10.32¢5 163
1
#013
18423-MGZ-J00
COLLAR, EX PIPE MOUNTING
$6.38¢3 188
1
#014
36533-MKP-D01
SENSOR, AIR FUEL RATIO
$206.05¢103 025
1
#016
90118-MGZ-J00
SCREW, PAN (6X20)
$1.38¢688
1
#017
90304-KPH-700
NUT, HEX CAP (8MM)
$2.19¢1 094
1
#018
90502-KGB-610
COLLAR, HEAD SIDE COVER
$2.73¢1 363
1
#019
90652-KT1-771
BAND, WIRE (BLACK)
$5.42¢2 713
1
#020
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#021
94103-08000
WASHER, PLAIN (8MM)
$0.84¢419
1
#022
95701-08050-00
BOLT, FLANGE (8X50)
$2.92¢1 463
1
#023
96400-08035-04
BOLT, FLANGE (8X35)
$0.83¢413
1
#024
95801-08050-00
BOLT, FLANGE (8X50)
$3.65¢1 825
1
#024
96400-08050-00
BOLT, FLANGE (8X50)
$3.65¢1 825
1
