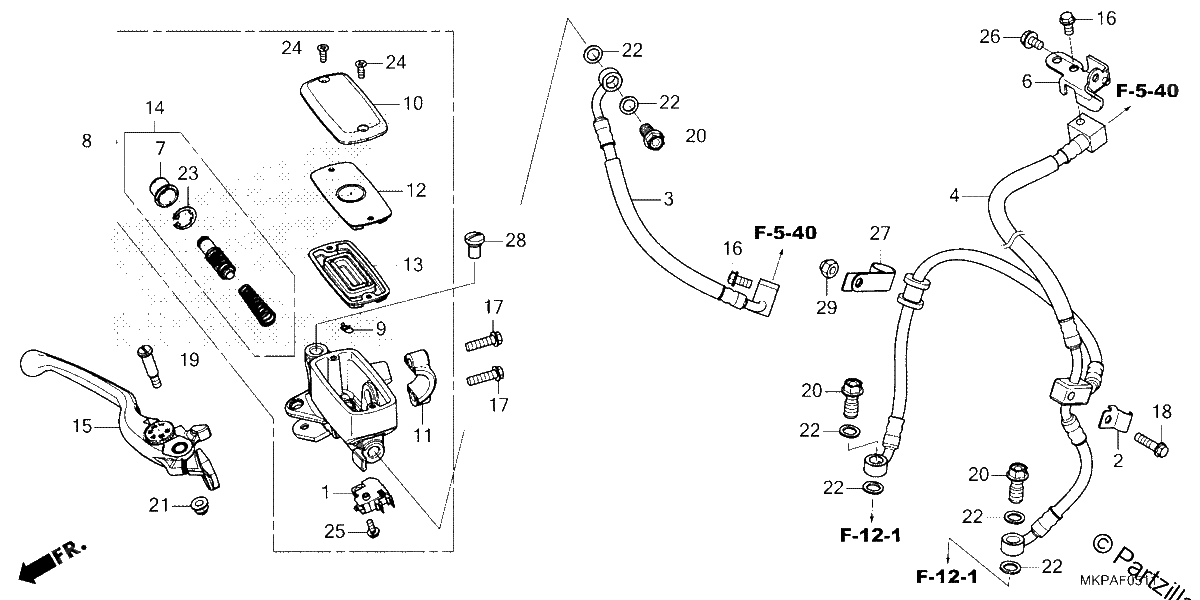

FRONT BRAKE MASTER CYLINDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#002
CLAMP B, SENSOR WIRE
$2.31¢1 156
#003
HOSE A, Front BRAKE
$29.45¢14 725
#004
HOSE B, FR. BRAKE
$121.66¢60 831
#006
STAY, FR. BRAKE HOSE
$6.26¢3 131
#007
BOOT
$14.24¢7 119
#008
MASTER CYLINDER SUB-Assembly., Front.(COO) (NISSIN)
$136.89¢68 444
#008
MASTER CYLINDER SUB-ASSY., FR.(NISSIN)
$136.89¢68 444
#009
PROTECTOR
$5.20¢2 600
#010
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
#011
HOLDER, MASTER CYLINDER
$15.74¢7 869
#012
PLATE, DIAPHRAGM
$12.36¢6 181
#013
DIAPHRAGM
$17.68¢8 838
#014
MASTER CYLINDER SET
$46.40¢23 200
#015
LEVER ASSY., R. HANDLE
$59.06¢29 531
#016
BOLT, FLANGE (6X12)
$2.99¢1 494
#017
BOLT, FLANGE (6X22)
$2.99¢1 494
#018
BOLT, FLANGE (6X23.5)
$1.57¢788
#019
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
#020
BOLT, OIL (10X22)
$8.89¢4 444
#021
NUT, CAP (6MM)
$3.65¢1 825
#022
WASHER, OIL BOLT
$4.85¢2 425
#023
CIRCLIP
$3.10¢1 550
#024
SCREW, FLAT (4X12)
$1.16¢581
#024
SCREW, FLAT (4X12)
$1.16¢581
#025
SCREW-WASHER (4X12)
$1.72¢862
#025
SCREW-WASHER (4X12)
$1.72¢862
#026
BOLT, FLANGE (6X10)
$2.09¢1 044
#027
CLAMP, FR. BRAKE HOSE
$4.68¢2 338
#028
PLUG, HANDLE LEVER BRACKET
$3.20¢1 600
#029
NUT, CAP (6MM)
$1.99¢994
