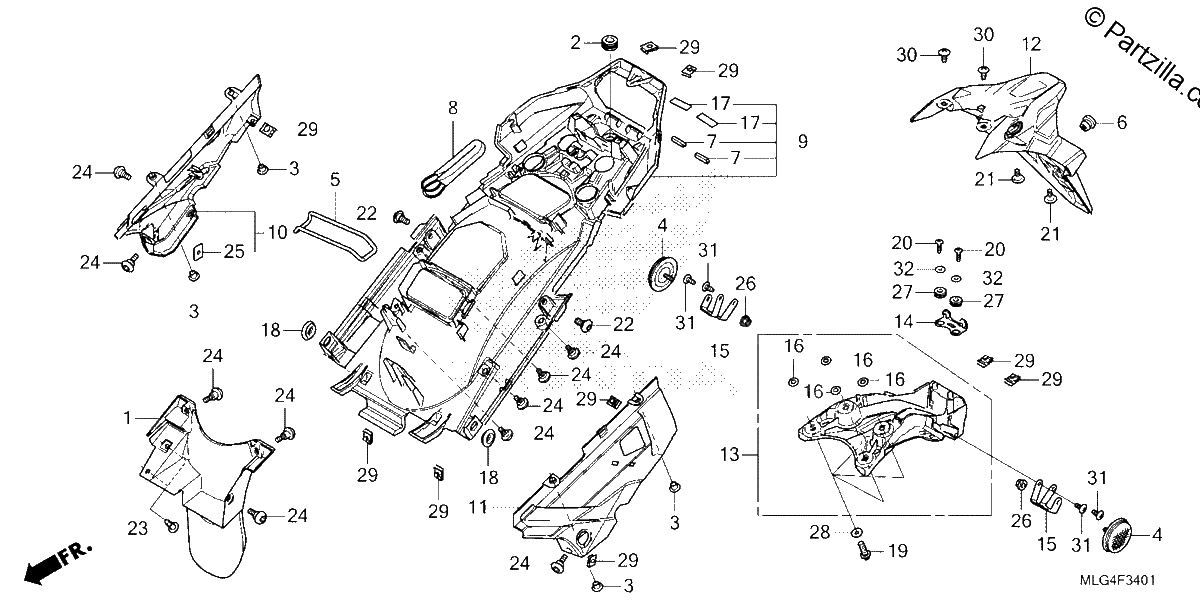

REAR FENDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SPLASH GUARD
$73.36¢36 681
#002
RUBBER, MOUNTING
$1.80¢900
#003
COLLAR, TAILLIGHT
$3.65¢1 825
#004
REFLECTOR, Rear REFLEX (RED)
$15.50¢7 750
#005
BAND, U-LOCK
$6.29¢3 144
#006
PLUG, HANDLE COVER (LOWER)
$2.39¢1 194
#007
PROTECTOR, RUBBER
$2.24¢1 119
#008
WIRE, HELMET SET
$10.28¢5 138
#009
FENDER B, RR.
$139.22¢69 613
#010
COVER, R. FENDER B
$31.58¢15 788
#011
COVER, L. FENDER B
$31.13¢15 563
#012
FENDER A, RR.
$90.10¢45 050
#013
STAY, FENDER A
$120.51¢60 256
#014
BRACKET, LICENSE LIGHT
$9.32¢4 663
#015
STAY, RR. REFLECTOR
$15.82¢7 913
#016
COLLAR, FENDER
$5.02¢2 512
#017
RUBBER, RR. FRAME
$1.85¢925
#018
GROMMET, AIR CLEANER HOUSING
$6.81¢3 406
#019
BOLT, FLANGE (6X20)
$2.99¢1 494
#020
SCREW, TAPPING (4X16)
$2.99¢1 494
#021
SCREW, SPECIAL (5X14)
$2.63¢1 313
#022
SCREW, SPECIAL (6X14)
$1.38¢688
#023
CLIP, BUMPER SEAL
$5.72¢2 863
#024
SCREW, SPECIAL (5X11)
$3.20¢1 600
#025
NUT, SPECIAL (6X7)
$4.65¢2 325
#026
NUT U, FLANGE (6MM)
$3.40¢1 700
#027
GROMMET A, AIR CLEANER HOUSING
$3.71¢1 856
#028
WASHER B, HANDLE HOLDER SETTING
$2.36¢1 181
#029
NUT, CLIP (5MM)
$4.94¢2 469
#030
SCREW, TAPPING (5X12)
$1.66¢831
#031
SCREW, TAPPING (5X12)
$1.06¢531
#032
WASHER, PLAIN (4MM)
$1.21¢606
