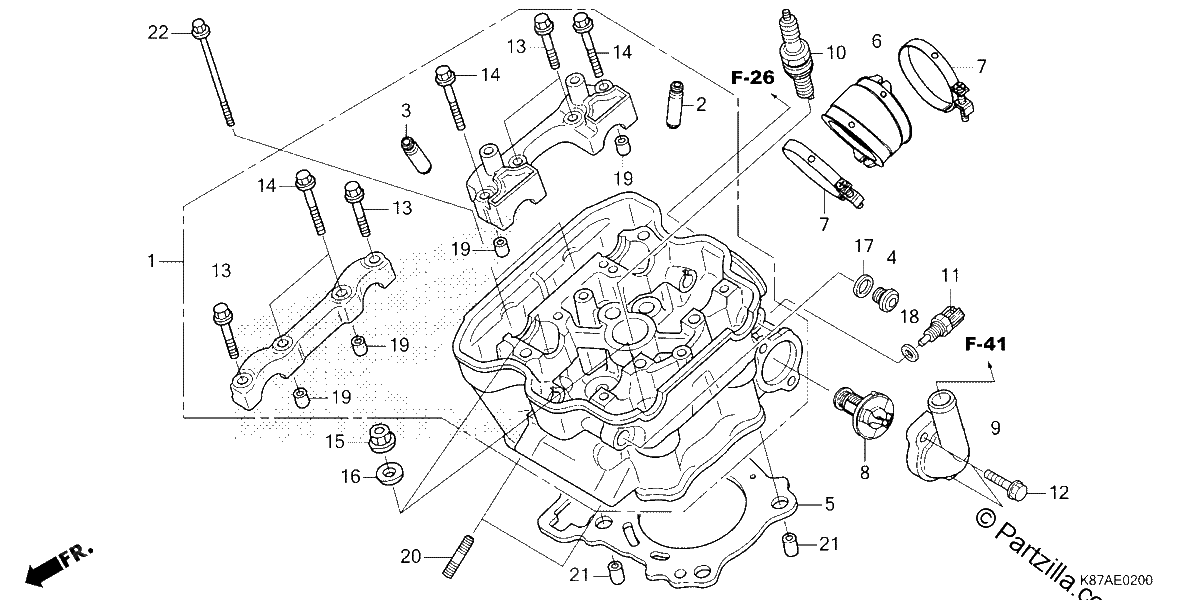

CYLINDER HEAD
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CYLINDER HEAD ASSY.
$314.55¢157 275
#002
GUIDE, VALVE (OVER SIZE)
$22.50¢11 250
#003
GUIDE, EX. VALVE (OVER SIZE)
$22.50¢11 250
#004
BOLT, SEALING (12MM)
$1.90¢950
#005
GASKET, CYLINDER HEAD
$26.26¢13 131
#006
INSULATOR, THROTTLE BODY
$32.25¢16 125
#007
BAND, INSULATOR
$7.25¢3 625
#008
THERMOSTAT
$65.46¢32 731
#009
COVER, THERMOSTAT
$21.13¢10 563
#010
SPARK PLUG (SIMR8A9) (NGK)
$21.36¢10 681
#011
SENSOR ASSY., WATER TEMPERATURE
$35.96¢17 981
#012
BOLT, FLANGE (6X22)
$0.61¢306
#013
BOLT, FLANGE (6X32)
$0.99¢494
#014
BOLT, FLANGE (6X39.5)
$1.06¢531
#015
NUT, FLANGE (10MM)
$1.75¢875
#016
WASHER (10MM)
$2.76¢1 381
#017
WASHER (12.2X17X1.5)
$1.21¢606
#018
WASHER, SPECIAL (12MM)
$3.36¢1 681
#019
PIN, DOWEL (8X14)
$0.86¢431
#019
PIN, DOWEL (8X14)
$0.86¢431
#019
PIN, DOWEL (8X14)
$2.89¢1 444
#020
BOLT, STUD (8X22)
$2.97¢1 487
#021
PIN A, DOWEL (12X16)
$2.92¢1 463
#022
BOLT, FLANGE (6X120)
$1.39¢694
#023
BAND, INSULATOR
$7.25¢3 625
