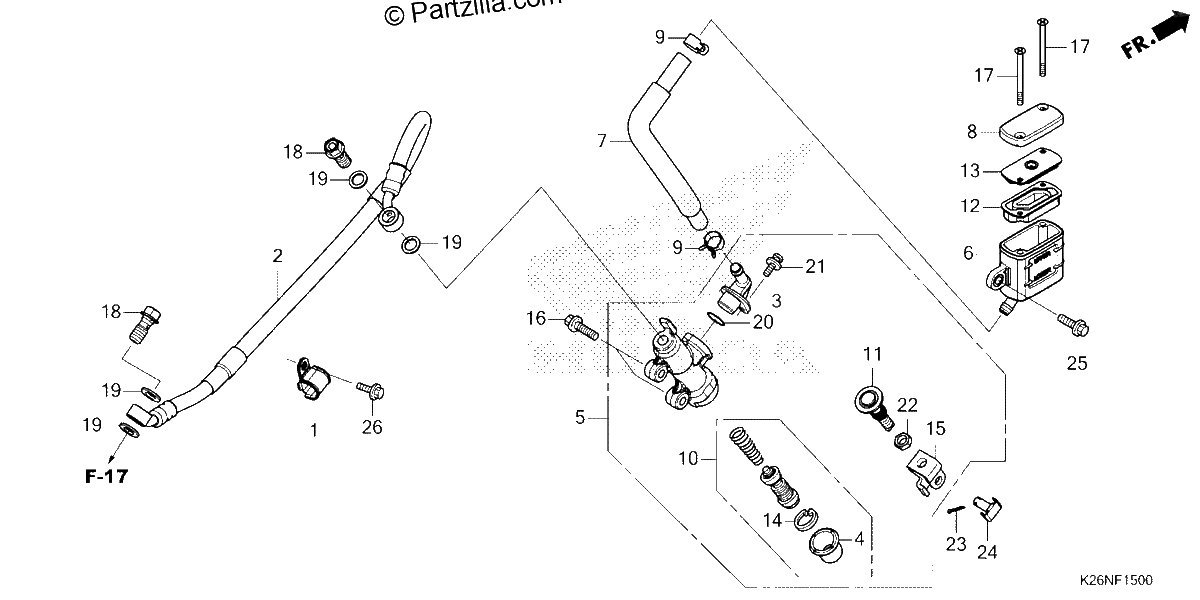

REAR BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP, RR. BRAKE HOSE
$3.06¢1 529
#002
HOSE, RR. BRAKE
$23.91¢11 954
#003
CONNECTOR
$15.00¢7 498
#004
BOOT
$10.80¢5 399
#005
MASTER CYLINDER SUB-Assembly., Rear BRAKE (NISSIN)
$113.09¢56 546
#006
CUP, OIL
$26.54¢13 271
#007
HOSE, Rear MASTER CYLINDER
$12.48¢6 239
#008
CAP, MASTER CYLINDER
$7.11¢3 553
#009
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
#010
PISTON SET, MASTER CYLINDER (NISSIN)
$48.82¢24 409
#011
ROD, PUSH
$27.04¢13 518
#012
DIAPHRAGM
$8.13¢4 065
#013
PLATE, DIAPHRAGM
$6.39¢3 197
#014
CIRCLIP
$2.30¢1 150
#015
JOINT, BRAKE ROD
$8.74¢4 370
#016
BOLT, FLANGE (6X22) (SH)
$0.83¢414
#017
SCREW, FLAT (4X50)
$2.60¢1 299
#018
BOLT, OIL (10X22)
$8.18¢4 088
#019
WASHER, OIL BOLT
$4.46¢2 231
#020
O-RING (14.8X2.4)
$3.04¢1 518
#021
SCREW-WASHER (4X12)
$1.59¢793
#021
SCREW-WASHER (4X12)
$1.59¢793
#022
NUT, HEX. (8MM)
$1.47¢736
#023
PIN, SPLIT (2.0X12)
$1.17¢586
#024
PIN D, JOINT
$4.74¢2 369
#025
BOLT, FLANGE (6X14)
$1.63¢816
#026
BOLT, FLANGE (6X10)
$1.92¢960
