MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

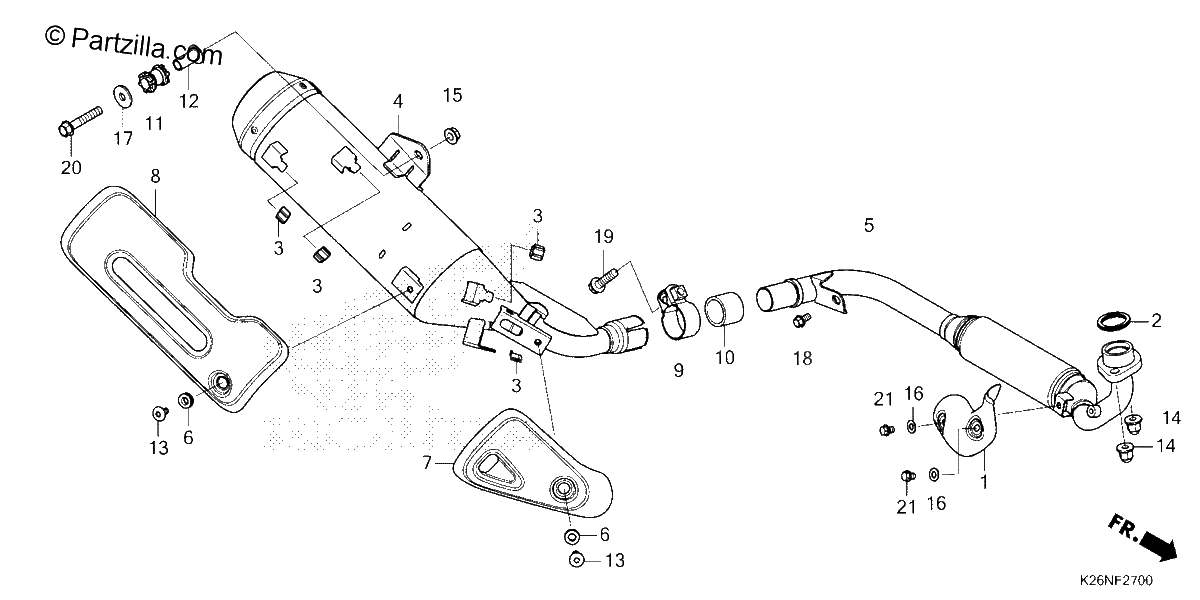

Diagrama de MUFFLER

Repuestos

#001
18240-K26-G00
COVER, EX PIPE
$8.82¢4 410
1
#002
18291-GE2-920
GASKET, EX. PIPE
$7.22¢3 611
1
#003
18293-MCA-A20
RUBBER, PROTECTOR GASKET
$2.43¢1 213
1
#004
18300-K26-G01
MUFFLER SUB-ASSY.
$213.39¢106 697
1
#005
18320-K26-G01
PIPE, EX.
$312.56¢156 279
1
#006
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.59¢1 294
1
#007
18354-K26-G00
PROTECTOR B, MUFFLER
$14.28¢7 142
1
#008
18355-K26-G00
PROTECTOR A, MUFFLER
$19.99¢9 994
1
#009
18371-K26-900
BAND, MUFFLER
$43.88¢21 942
1
#010
18391-HB7-000
GASKET, MUFFLER
$11.98¢5 991
1
#011
18421-K26-B00
RUBBER, MUFFLER MOUNTING
$0.70¢351
1
#012
18422-K26-900
COLLAR, MUFFLER MOUNTING
$4.86¢2 432
1
#013
90113-KTA-920
SCREW, PAN (6X12)
$2.60¢1 299
1
#014
90304-KPH-700
NUT, HEX CAP (8MM)
$2.01¢1 006
1
#015
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#016
94101-06200
WASHER, PLAIN (6MM)
$0.80¢402
1
#017
94103-08200
WASHER, PLAIN (8MM)
$0.76¢380
1
#018
95701-08016-04
BOLT, FLANGE (8X16)
$0.68¢339
1
#019
95701-08032-02
BOLT, FLANGE (8X32)
$1.54¢771
1
#020
95701-08045-02
BOLT, FLANGE (8X45)
$2.30¢1 150
1
#021
96001-06008-02
BOLT, FLANGE (6X8)
$1.83¢914
1
