THROTTLE BODY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

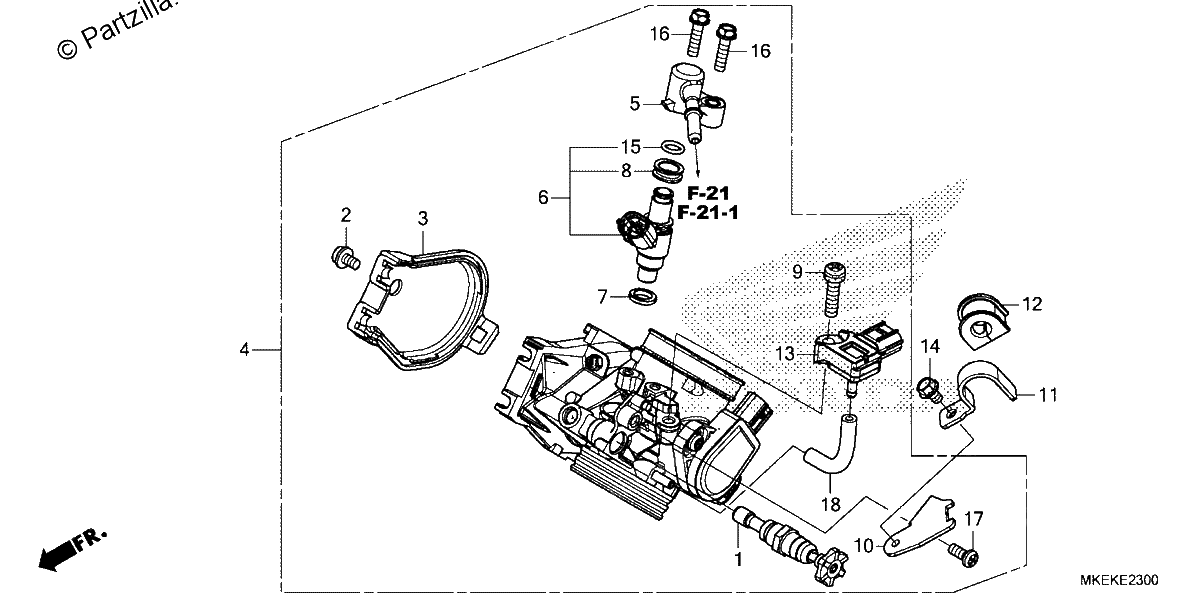

Diagrama de THROTTLE BODY

Repuestos

#001
16046-KRN-A41
VALVE, STARTER
$44.09¢22 046
1
#002
16080-HP1-601
BOLT, COVER
$4.54¢2 271
1
#003
16157-MEN-A31
COVER, BODY
$20.91¢10 453
1
#004
16400-MKE-AA1
BODY ASSY., THROTTLE (GQ2JA A)
$732.70¢366 350
1
#005
16422-MKE-A01
JOINT, INJECTOR
$15.12¢7 561
1
#006
16450-MKE-A01
INJECTOR ASSY., FUEL
$145.14¢72 571
1
#007
16472-MCW-000
SEAL RING, INJECTOR
$2.83¢1 414
1
#008
16473-P7A-004
CUSHION RING, INJECTOR
$7.68¢3 841
1
#009
16542-MEN-A41
SCREW-WASHER (6X25)
$3.81¢1 903
1
#010
17567-MKE-A01
BASE, CLAMP
$7.49¢3 743
1
#011
17568-HP5-600
CLAMP, FUEL HOSE
$1.03¢518
1
#012
17579-MKE-A00
RUBBER, FUEL FEED HOSE
$3.36¢1 679
1
#013
46401-TM8-A01
SENSOR A, MASTER POWER PRESSURE
$240.14¢120 071
1
#014
90002-MC7-000
BOLT, FLANGE (5X8)
$2.18¢1 092
1
#015
91301-P7A-004
O-RING (7.8X1.9)
$3.75¢1 874
1
#016
93401-05020-00
BOLT-WASHER (5X20)
$1.47¢736
1
#017
93500-05012-0H
SCREW, PAN (5X12)
$1.07¢535
1
#017
93500-05012-1H
SCREW, PAN (5X12)
$1.07¢535
1
#018
95005-35001-20M
BULK HOSE, VACUUM (3.5X1000) (3.5X90)
$10.42¢5 210
1
