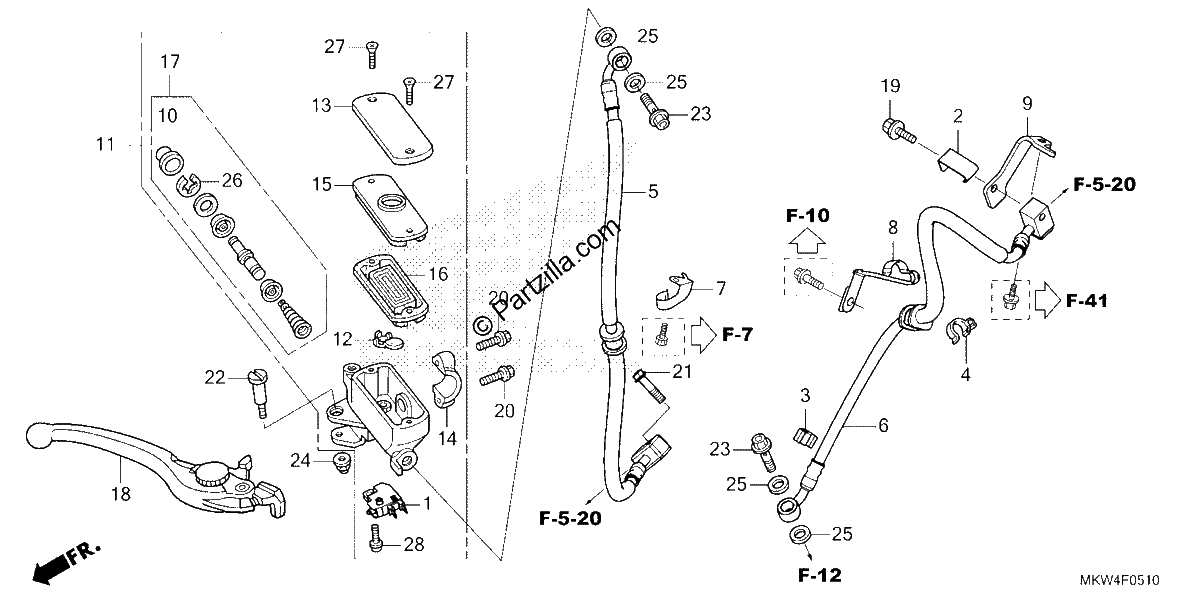

FRONT BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#002
CLAMP, SENSOR WIRE
$4.84¢2 419
#003
CLAMP, ABS WIRE (D8.5)
$4.00¢2 000
#004
CLAMP, ABS WIRE (D12)
$3.50¢1 750
#005
HOSE A, FR. BRAKE
$71.90¢35 950
#006
HOSE D, FR. BRAKE
$70.90¢35 450
#007
CLAMP A, Front BRAKE HOSE
$6.99¢3 494
#008
CLAMP A, Front BRAKE HOSE
$13.49¢6 744
#009
STAY, Front BRAKE HOSE
$12.44¢6 219
#010
BOOT
$14.24¢7 119
#011
MASTER CYLINDER SUB-Assembly., Front.(NISSIN)
$360.26¢180 131
#012
PROTECTOR
$5.20¢2 600
#013
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
#014
HOLDER, MASTER CYLINDER
$15.74¢7 869
#015
PLATE, DIAPHRAGM
$12.36¢6 181
#016
DIAPHRAGM
$17.68¢8 838
#017
MASTER CYLINDER SET (NISSIN)
$33.21¢16 606
#018
LEVER ASSY., R. HANDLE
$59.06¢29 531
#019
BOLT, FLANGE (6X14)
$2.99¢1 494
#020
BOLT, FLANGE (6X22)
$2.99¢1 494
#021
BOLT, FLANGE (6X25)
$2.99¢1 494
#022
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
#023
BOLT, OIL (10X22)
$8.89¢4 444
#024
NUT, CAP (6MM)
$2.76¢1 381
#025
WASHER, OIL BOLT
$4.85¢2 425
#026
CIRCLIP
$3.10¢1 550
#027
SCREW, FLAT (4X12)
$1.16¢581
#027
SCREW, FLAT (4X12)
$1.16¢581
#028
SCREW-WASHER (4X12)
$1.72¢862
#028
SCREW-WASHER (4X12)
$1.72¢862
