WINDSCREEN

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

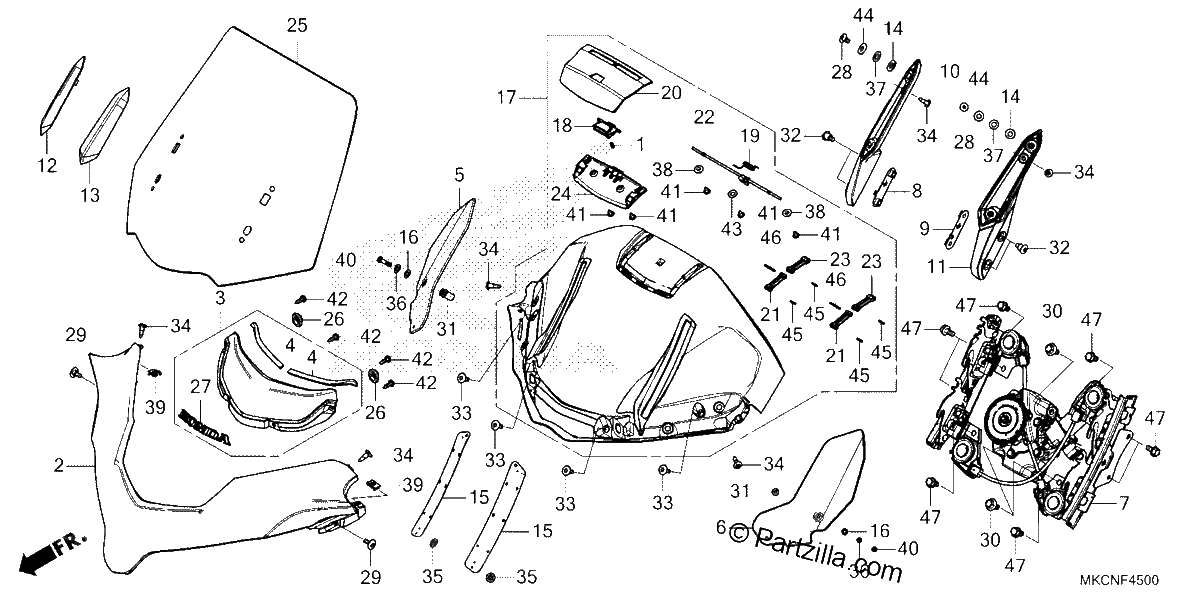

Diagrama de WINDSCREEN

Repuestos

#001
14126-KV2-940
SPRING, PLUNGER
$4.34¢2 168
1
#002
64100-MKC-LD0ZA
GARNISH A, SCREEN *2TN0040* (WL)(GLINT WAVE BLUE METALLIC/PEARLHAWKSEYE BLUE)
$480.02¢240 011
1
#003
64105-MKC-A00ZA
GARNISH ASSY. B, SCREEN (TYPE2)
$94.69¢47 346
1
#004
64116-MKC-A00
SEAL, GARNISH B
$3.68¢1 840
1
#005
64121-MKC-A00
FLAP, R. WINDSCREEN (INNER)
$94.13¢47 064
1
#006
64126-MKC-A00
FLAP, L. WINDSCREEN (INNER)
$94.13¢47 064
1
#007
64170-MKC-A01
ADJUSTER ASSY., WINDSCREEN
$672.62¢336 312
1
#008
64173-MKC-A00
PLATE, R. SCREEN ADJUSTER
$4.57¢2 283
1
#009
64174-MKC-A00
PLATE, L. SCREEN ADJUSTER
$4.57¢2 283
1
#010
64175-MKC-A00
STAY, R. WINDSCREEN
$43.34¢21 672
1
#011
64176-MKC-A00
STAY, L. WINDSCREEN
$43.34¢21 672
1
#012
64177-MKC-A00ZA
COVER, R. WINDSCREEN *NHA86M*(MAT BALLISTIC BLACK)
$22.38¢11 189
1
#013
64178-MKC-A00ZA
COVER, L. WINDSCREEN *NHA86M*(MAT BALLISTIC BLACK)
$22.38¢11 189
1
#014
64179-MKC-A00
RUBBER, WASHER
$2.32¢1 162
1
#015
64185-MKC-A00
SEAL, WINDSCREEN ADJUSTER
$8.60¢4 301
1
#016
64205-166-610
WASHER, SCREEN SETTING
$2.62¢1 311
1
#017
64251-MKC-A00
VISOR ASSY.
$281.83¢140 915
1
#018
64273-MKC-A00
SWITCH, VISOR OPEN
$4.05¢2 024
1
#019
64274-MKC-A00
SPRING, VISOR FLAP
$7.14¢3 571
1
#020
64275-MKC-A00
FLAP, VISOR
$16.86¢8 430
1
#021
64276-MKC-A00
ARM A
$4.36¢2 179
1
#022
64277-MKC-A00
ROD, ARM
$19.91¢9 953
1
#023
64278-MKC-A00
ARM B
$4.36¢2 179
1
#024
64279-MKC-A00
COVER, FLAP
$14.12¢7 061
1
#025
67110-MKC-A00
WINDSCREEN
$879.96¢439 978
1
#026
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.27¢3 134
1
#027
86101-MKC-A00
EMBLEM, HONDA (105MM)
$33.48¢16 738
1
#028
90106-KY2-701
SCREW, PAN (6X11)
$4.74¢2 369
1
#029
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.16¢1 581
1
#030
90111-162-000
BOLT, FLANGE (6MM)
$3.36¢1 679
1
#031
90111-KW3-003
NUT, COWL SETTING (5MM)
$5.04¢2 519
1
#032
90113-MKC-A00
SCREW, PAN (6X15)
$3.36¢1 679
1
#033
90114-MKC-A00
SCREW, SPECIAL (5X15)
$3.36¢1 679
1
#034
90116-SP0-003
CLIP, BUMPER SEAL
$5.27¢2 633
1
#035
90301-ST0-003
NUT, PUSH (3MM)
$3.74¢1 869
1
#036
90504-964-000
WASHER, THRUST (5MM)
$2.24¢1 121
1
#037
90511-MCS-G50
WASHER (9X17X1)
$2.18¢1 092
1
#038
90556-MB4-000
WASHER, FR. SIDE COVER
$3.09¢1 547
1
#039
90677-KAN-961
NUT, CLIP (5MM)
$4.54¢2 271
1
#040
93500-05018-0G
SCREW, PAN (5X18)
$0.55¢276
1
#041
93903-24180
SCREW, TAPPING (4X8)
$0.98¢489
1
#042
93903-24380
SCREW, TAPPING (4X12)
$1.07¢535
1
#043
94101-06800
WASHER, PLAIN (6MM)
$0.77¢385
1
#044
94101-08700
WASHER, PLAIN (8MM)
$1.17¢586
1
#045
94305-20103
PIN, SPRING (2X10)
$1.09¢546
1
#046
94305-20203
PIN, SPRING (2X20)
$1.23¢615
1
#047
95701-06012-08
BOLT, FLANGE (6X12)
$1.83¢914
1
