FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

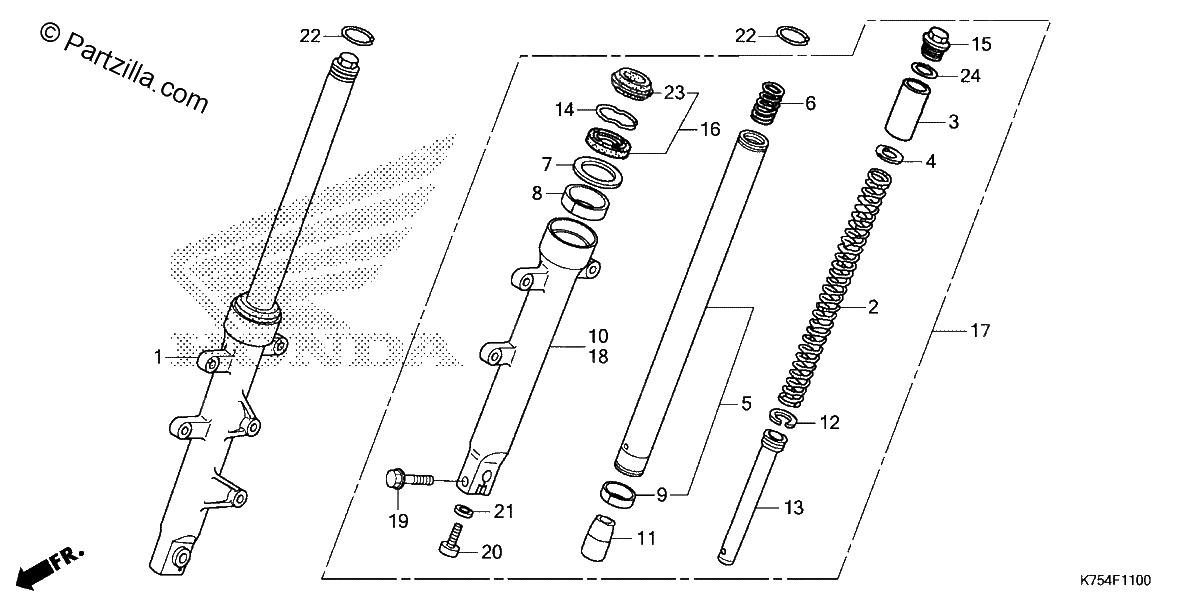

Diagrama de FRONT FORK

Repuestos

#001
51400-KYJ-305
FORK ASSY., R. FR. (COO) (SHOWA)
$239.07¢119 537
1
#001
51400-KYJ-921
FORK ASSY., R. FR. (SHOWA)
$239.07¢119 537
1
#002
51401-KYJ-901
SPRING, Front FORK
$38.65¢19 326
1
#003
51402-KYJ-901
COLLAR, SPRING
$1.71¢857
1
#004
51403-ME4-003
SEAT, SPRING
$8.46¢4 232
1
#005
51410-KYJ-901
PIPE, Front FORK
$191.54¢95 772
1
#006
51411-MG1-003
SPRING, Front FORK REBOUND
$7.38¢3 691
1
#007
51412-461-003
RING, BACK-UP
$7.85¢3 927
1
#008
51414-KFB-901
BUSH, GUIDE
$7.76¢3 881
1
#009
51415-KFB-901
BUSH, SLIDER
$9.58¢4 790
1
#009
51415-KSE-A71
BUSH, SLIDER
$9.58¢4 790
1
#010
51420-KYJ-921
CASE, R. (LOWER)
$121.84¢60 921
1
#011
51432-KAZ-003
PIECE, OIL LOCK
$11.05¢5 526
1
#012
51437-ML7-691
RING, PISTON
$9.37¢4 686
1
#013
51440-KYJ-901
PIPE, SEAT
$15.65¢7 826
1
#014
51447-KR6-003
RING, OIL SEAL STOPPER
$4.21¢2 105
1
#015
51450-KAS-901
BOLT, Front FORK
$27.00¢13 501
1
#016
51490-KWL-003
SEAL SET, FR. FORK
$23.10¢11 552
1
#017
51500-KYJ-305
FORK Assembly., L Front. (COO) (SHOWA)
$288.59¢144 296
1
#017
51500-KYJ-921
FORK ASSY., L. FR. (SHOWA)
$288.59¢144 296
1
#018
51520-KYJ-921
CASE, Left (LOWER)
$108.72¢54 361
1
#019
90109-MR7-000
BOLT, FLANGE (8X45)
$5.51¢2 754
1
#020
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.34¢2 168
1
#021
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
1
#022
90602-ME7-003
RING, STOPPER
$3.86¢1 932
1
#023
91254-KAZ-003
DUST SEAL
$18.16¢9 079
1
#024
91357-ME4-003
O-RING (27.7X3.5)
$3.74¢1 869
1
