FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

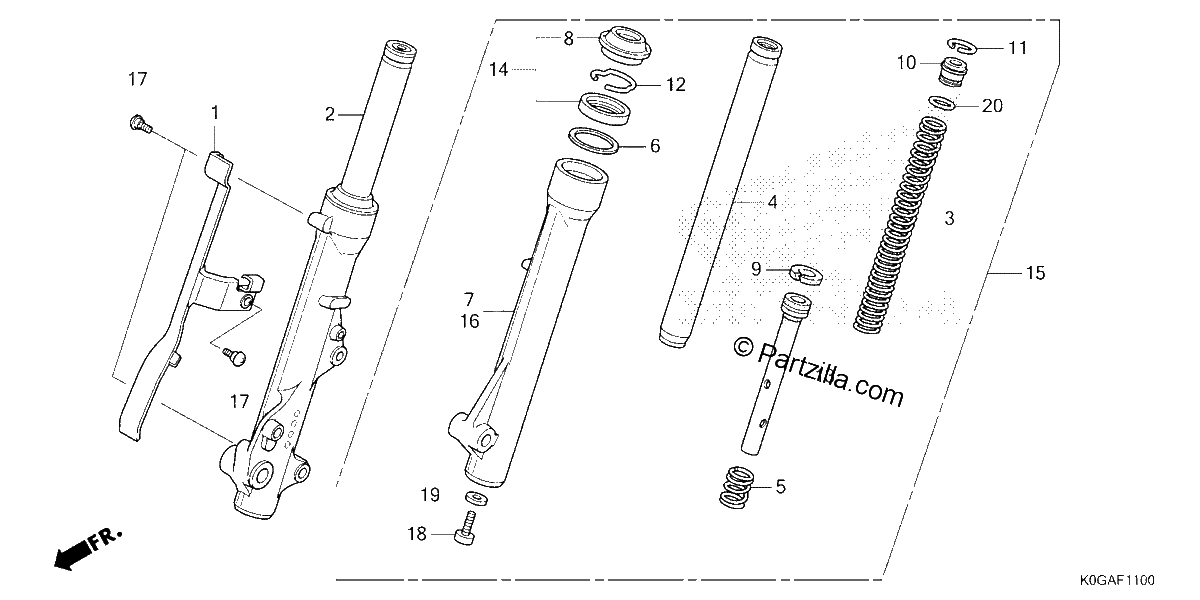

Diagrama de FRONT FORK

Repuestos

#001
38521-K0G-950
GUARD, ABS SENSOR
$70.06¢35 029
1
#002
51400-K0G-D21
FORK Assembly., Right Front.
$138.97¢69 483
1
#003
51401-K0G-T21
SPRING, Front FORK
$9.80¢4 899
1
#004
51410-K0G-T21
PIPE, Front FORK
$42.72¢21 361
1
#005
51412-GN5-901
SPRING, REBOUND (SHOWA)
$5.66¢2 829
1
#006
51412-KWB-601
RING, BACK-UP
$0.62¢311
1
#007
51420-K0G-951
CASE, R. FR. (LOWER) (SHOWA)
$64.70¢32 350
1
#008
51425-GN5-901
DUST SEAL (SHOWA)
$18.75¢9 373
1
#009
51437-KWB-601
RING, PISTON (SHOWA)
$1.51¢753
1
#010
51454-K58-TC1
SEAT B, SPRING
$4.52¢2 260
1
#011
51456-KPH-901
RING, STOPPER (SHOWA)
$0.53¢265
1
#012
51466-065-901
RING, OIL SEAL STOPPER (SHOWA)
$5.24¢2 622
1
#013
51470-K0G-T21
PIPE, SEAT
$4.45¢2 225
1
#014
51490-KGH-901
SEAL SET, Front FORK (SHOWA)
$6.88¢3 439
1
#015
51500-K0G-T21
FORK Assembly., L Front.
$121.60¢60 800
1
#016
51520-K0G-901
CASE, L. FR. (LOWER) (SHOWA)
$27.54¢13 771
1
#017
90102-MEJ-J00
SCREW, SPECIAL (5MM)
$1.68¢839
1
#018
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.34¢2 168
1
#019
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
1
#020
91256-166-003
O-RING (16.8X2.4)
$2.83¢1 414
1
