HANDLEBAR TOP BRIDGE 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

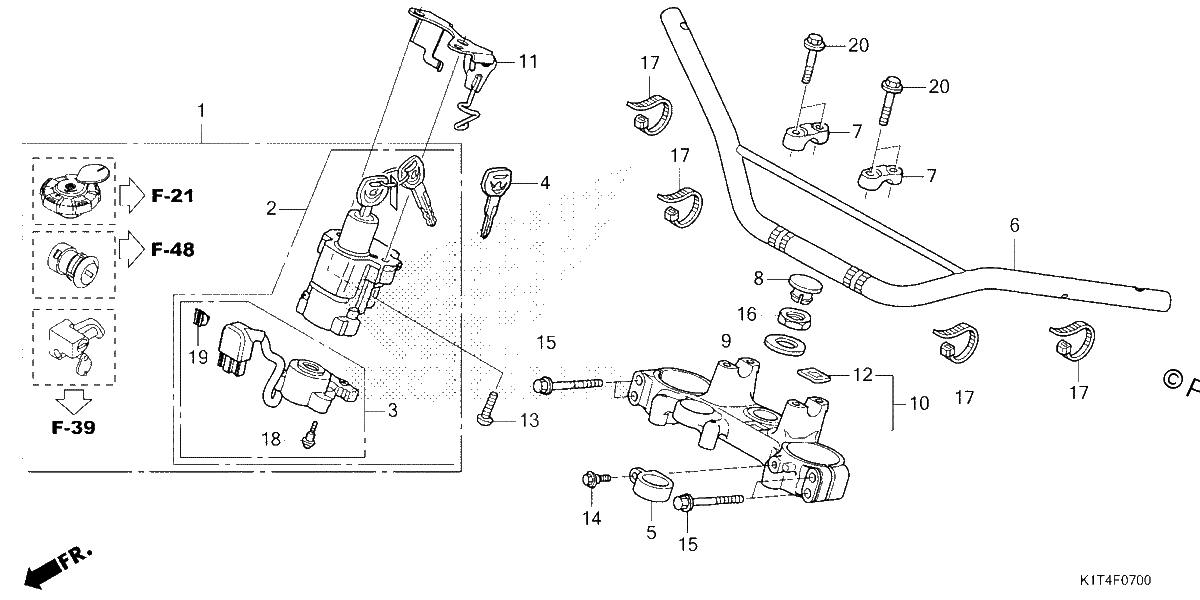

Diagrama de HANDLEBAR TOP BRIDGE 1

Repuestos

#001
35010-K1T-A50
LOCK SET
No Disponible
1
#002
35100-KZZ-901
SWITCH ASSY., COMBINATION LOCK
$185.23¢92 615
1
#003
35101-KZZ-901
BASE, CONTACT
$74.26¢37 128
1
#004
35121-MAS-G01
KEY, BLANK
$13.60¢6 802
1
#005
45468-KZZ-J80
GUIDE, FR. BRAKE HOSE
$3.81¢1 903
1
#006
53100-K1T-E50
HANDLEBAR
$38.67¢19 337
1
#007
53131-KZZ-A20
HOLDER (UPPER)
$7.11¢3 553
1
#008
53208-KCH-900
CAP, STEERING STEM
$3.36¢1 679
1
#009
53215-GF8-000
WASHER, DUST SEAL
$4.66¢2 329
1
#010
53300-KZZ-J00ZC
BRIDGE, FORK TOP *NH303M*(MAT AXIS GRAY METALLIC)
$97.20¢48 599
1
#011
61325-KZZ-G40
GUIDE, CLUTCH CABLE
$16.46¢8 228
1
#012
86150-KPG-901
EMBLEM, PRODUCT (MARUI)
$4.04¢2 018
1
#013
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.36¢1 679
1
#014
90113-KZZ-900
BOLT, FLANGE (6MM)
$0.64¢322
1
#015
90155-KZZ-J00
BOLT, FLANGE (8X45)
$0.64¢322
1
#016
90304-425-000
NUT, STEERING STEM
$10.43¢5 215
1
#017
90650-KW3-000
BAND, WIRE
$4.99¢2 496
1
#018
91059-KY2-711
SCREW, TAPPING (3X16)
$3.36¢1 679
1
#019
91533-S04-003
CLIP, CONNECTOR (NATURAL)
$4.62¢2 311
1
#020
96300-08035-00
BOLT, FLANGE (8X35)
$2.32¢1 162
1
