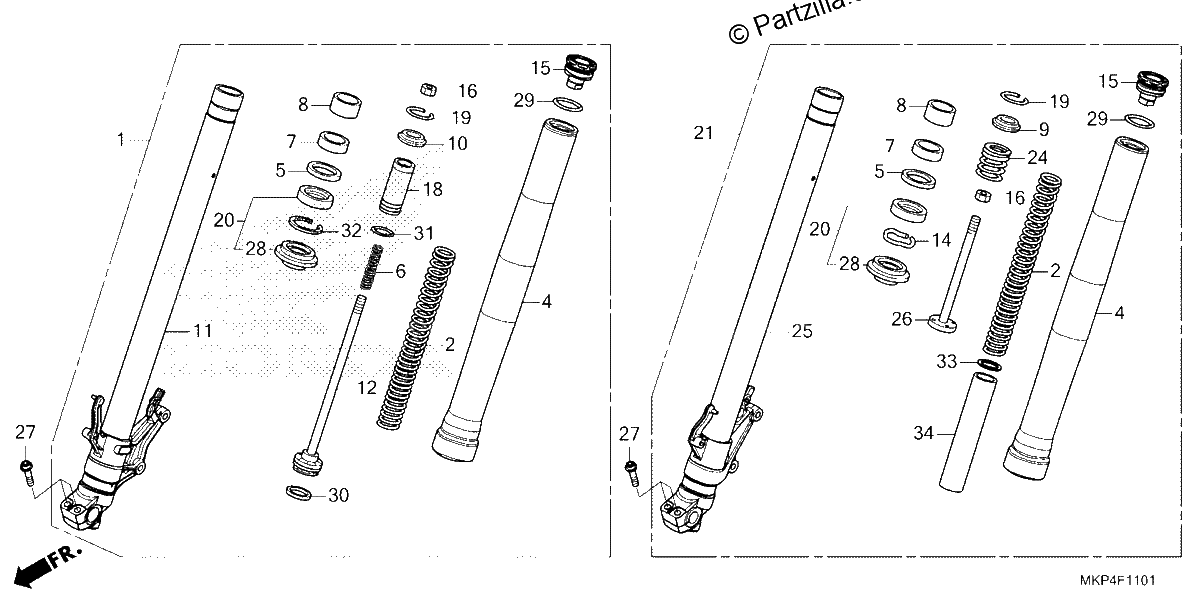

FRONT FORK 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
FORK ASSY., R. FR.
$686.16¢343 079
#002
SPRING, FR. FORK
$26.28¢13 139
#004
TUBE (OUTER)
$256.47¢128 237
#005
RING, BACK-UP (SHOWA)
$10.38¢5 192
#006
SPRING, R. REBOUND
$3.22¢1 610
#007
BUSH, GUIDE
$8.10¢4 048
#008
BUSH, SLIDER
$8.10¢4 048
#009
SEAT, STOPPER
$10.95¢5 474
#010
SEAT, R. STOPPER
$7.60¢3 801
#011
PIPE, R. SLIDE
$364.49¢182 246
#012
ROD, PISTON
$58.65¢29 325
#014
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
#015
BOLT, FR. FORK
$95.39¢47 696
#016
NUT, HEX.
$16.21¢8 108
#018
CASE, ROD GUIDE
$51.15¢25 576
#019
RING, STOPPER
$2.64¢1 322
#020
SEAL SET, FR. FORK
$26.84¢13 420
#021
FORK ASSY., L. FR.
$631.32¢315 658
#024
SPRING, L. REBOUND
$4.96¢2 478
#025
PIPE, L. SLIDE
$354.05¢177 025
#026
ROD
$58.67¢29 337
#027
BOLT, FLANGE SOCKET (8X35)
$2.13¢1 064
#028
DUST SEAL
$11.40¢5 698
#029
O-RING (39.7X2.4)
$2.51¢1 254
#030
RING, PISTON
$1.64¢822
#031
O-RING (33.2X2.4)
$4.20¢2 099
#032
CIRCLIP (INNER)
$5.19¢2 593
#033
JOINT, SPRING
$3.71¢1 857
#034
COLLAR B, SPRING
$16.04¢8 021
