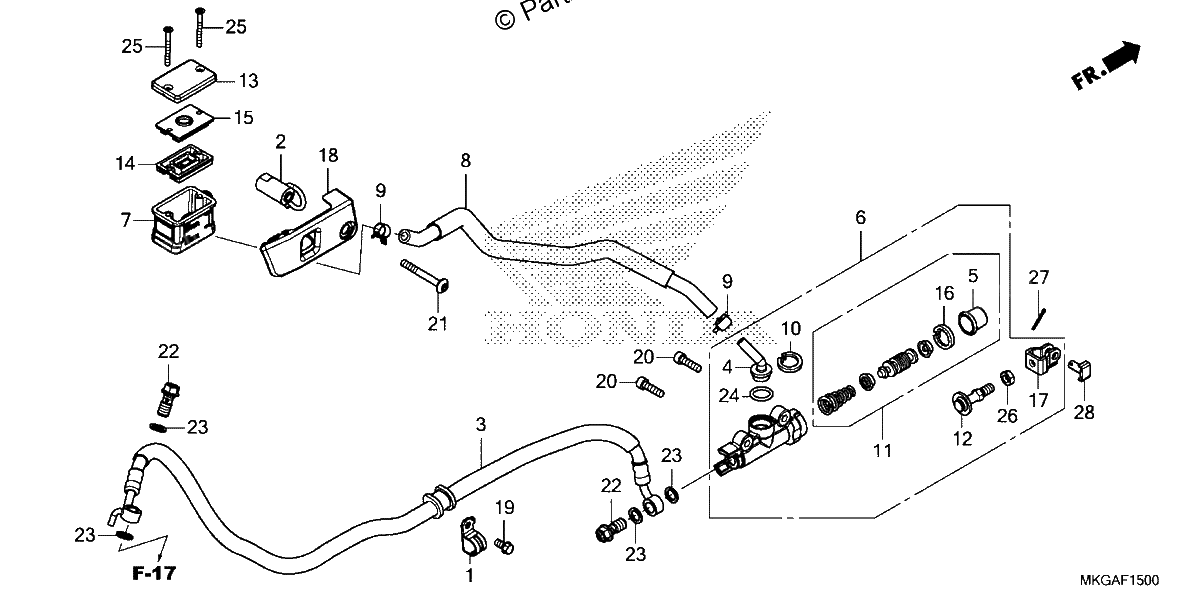

REAR BRAKE MASTER CYLINDER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP, BRAKE HOSE
$5.22¢2 613
#002
COLLAR, OIL CUP
$8.79¢4 394
#003
HOSE, Rear BRAKE
$40.67¢20 338
#004
CONNECTOR
$14.33¢7 163
#005
BOOT
$11.74¢5 869
#006
MASTER CYLINDER SUB-ASSY., RR.(NISSIN)
$143.40¢71 700
#007
CUP, OIL
$27.52¢13 763
#008
HOSE, RR. MASTER CYLINDER
$22.24¢11 119
#009
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
#010
CIRCLIP, Rear MASTER CYLINDER
$4.63¢2 313
#011
PISTON SET, MASTER CYLINDER (NISSIN)
$53.06¢26 531
#012
ROD, PUSH
$14.61¢7 306
#013
CAP, MASTER CYLINDER (COO)
$5.04¢2 519
#013
CAP, MASTER CYLINDER
$5.04¢2 519
#014
DIAPHRAGM
$12.31¢6 156
#015
PLATE, DIAPHRAGM
$12.60¢6 300
#016
CIRCLIP
$2.50¢1 250
#017
JOINT, BRAKE ROD
$9.50¢4 750
#018
COVER, OIL CUP
$5.00¢2 500
#019
BOLT, FLANGE (6X12)
$2.99¢1 494
#020
BOLT, SOCKET (6X22)
$1.27¢638
#021
BOLT, SOCKET SPECIAL (6X50)
$0.74¢369
#022
BOLT, OIL (10X22)
$8.89¢4 444
#023
WASHER, OIL BOLT
$4.85¢2 425
#024
O-RING (14.8X2.4)
$3.30¢1 650
#025
SCREW, FLAT (4X40)
$0.61¢306
#026
NUT, HEX. (8MM)
$1.60¢800
#027
PIN, SPLIT (2.0X15)
$1.34¢669
#028
PIN D, JOINT
$5.15¢2 575
