REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

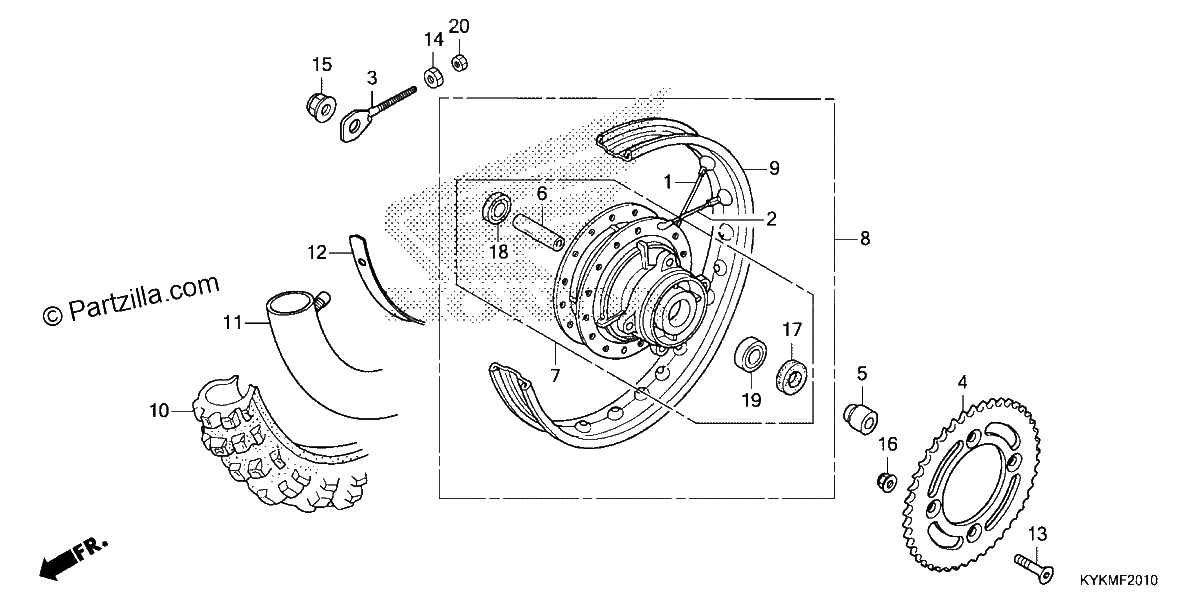

Diagrama de REAR WHEEL

Repuestos

#001
06420-KYK-910
SPOKE SET A, RR. (A11X100.5)
$4.65¢2 325
1
#002
06421-KYK-910
SPOKE SET B, RR. (A11X100)
$5.42¢2 713
1
#003
40543-KYK-910
ADJUSTER, CHAIN
$4.19¢2 094
1
#004
41201-KYK-910
SPROCKET, FINAL DRIVEN (38T)
$45.11¢22 556
1
#005
42311-KYK-910
COLLAR, RR. WHEEL SIDE
$11.96¢5 981
1
#006
42620-KYK-910
COLLAR, RR. AXLE DISTANCE
$12.13¢6 063
1
#007
42635-KYK-910
HUB SUB-ASSY., RR.
$276.52¢138 263
1
#008
42650-KYK-305
WHEEL SUB-ASSY., RR. (COO)
$506.13¢253 063
1
#008
42650-KYK-910
WHEEL SUB-ASSY., RR.
$506.13¢253 063
1
#009
42701-KYK-910
RIM, RR. WHEEL (1.60X12)
$69.45¢34 725
1
#010
42711-KYK-912
TIRE, Rear. (80/100-12 50J) (CST)
$136.51¢68 256
1
#011
42712-KYK-911
TUBE, TIRE (CST)
$14.69¢7 344
1
#012
42713-KYK-911
FLAP, TIRE
$7.14¢3 569
1
#013
90125-KA4-000
SCREW, FLAT (8X31)
$3.74¢1 869
1
#014
90302-KBP-900
NUT, SPECIAL (6MM)
$2.63¢1 313
1
#015
90306-KYA-601
NUT, FLANGE (12MM) (PT)
$3.65¢1 825
1
#016
90309-428-731
NUT, FLANGE (M8X1.25) (SELF-LOCK)
$4.06¢2 031
1
#016
90309-KF0-003
NUT, FLANGE (8MM)
$4.06¢2 031
1
#017
90755-GC4-003
DUST SEAL (21X37X5.5) (ARAI)
$6.13¢3 063
1
#017
90755-GC4-005
DUST SEAL (21X37X5.5) (NOK)
$6.13¢3 063
1
#018
91051-KYK-911
BEARING, RADIAL BALL (6201UU)
$15.00¢7 500
1
#019
91052-KYK-911
BEARING, RADIAL BALL (6301UU)
$15.02¢7 512
1
#020
94001-06080-0S
NUT, HEX. (6MM)
$1.60¢800
1
