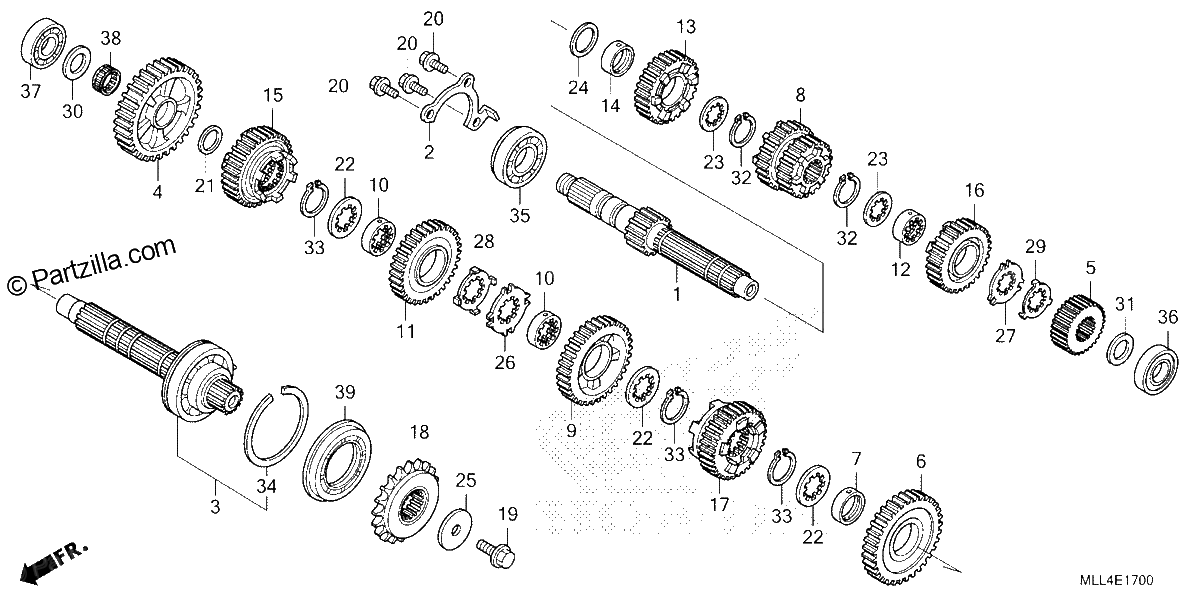

TRANSMISSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
MAINSHAFT (14T)
$204.04¢102 022
#002
PLATE, BEARING SETTING
$9.33¢4 663
#003
COUNTERSHAFT
$237.70¢118 852
#004
GEAR, COUNTERSHAFT FIRST (32T)
$130.80¢65 400
#005
GEAR, MAINSHAFT SECOND (18T)
$47.98¢23 989
#006
GEAR, COUNTERSHAFT SECOND (32T)
$95.36¢47 679
#007
COLLAR (30X9.5)
$15.19¢7 596
#008
GEAR, MAINSHAFT THIRD & FOURTH(22T/24T)
$114.70¢57 350
#009
GEAR, COUNTER THIRD (33T)
$95.36¢47 679
#010
COLLAR, SPLINE (30X11)
$27.24¢13 622
#011
GEAR, COUNTER FOURTH (32T)
$95.36¢47 679
#012
COLLAR, SPLINE (28X13.5)
$36.63¢18 314
#013
GEAR, MAINSHAFT FIFTH (29T)
$93.09¢46 546
#014
COLLAR (28X13)
$27.24¢13 622
#015
GEAR, COUNTERSHAFT FIFTH (33T)
$106.51¢53 256
#016
GEAR, MAINSHAFT SIXTH (31T)
$96.83¢48 415
#017
GEAR, COUNTERSHAFT SIXTH (30T)
$106.51¢53 256
#018
SPROCKET, DRIVE (15T)
$113.67¢56 833
#019
BOLT, SPECIAL (10MM)
$8.18¢4 088
#020
BOLT, FLANGE (6X14) (10.9)
$3.43¢1 713
#021
WASHER, THRUST (24MM)
$4.08¢2 041
#022
WASHER, SPLINE (30X36X1.5)
$3.90¢1 949
#023
WASHER, SPLINE (28X34X1.5)
$7.50¢3 749
#024
WASHER, THRUST (28MM)
$6.34¢3 168
#025
WASHER (10.2MM)
$6.51¢3 254
#026
WASHER, SPLINE (30MM)
$5.40¢2 702
#027
WASHER, SPLINE (28MM)
$6.58¢3 289
#028
WASHER, LOCK (30MM)
$7.96¢3 979
#029
WASHER, LOCK (28MM)
$6.58¢3 289
#030
SHIM J, FINAL REDUCTION THIRD GEAR (2.0MM)
$7.64¢3 818
#031
WASHER, THRUST (20MM)
$2.28¢1 138
#032
CIRCLIP (28MM)
$4.17¢2 087
#033
CIRCLIP (30MM)
$4.99¢2 496
#034
RING, SNAP (72MM)
$10.73¢5 365
#035
BEARING, RADIAL BALL (28X62X16)
$23.49¢11 747
#036
BEARING, SPECIAL (20X47X15.5)
$25.71¢12 857
#037
BEARING, SPECIAL (20X52X15)
$23.49¢11 747
#038
BEARING, NEEDLE (24X28X10)
$12.88¢6 440
#039
OIL SEAL (45X72X8)
$18.99¢9 493
