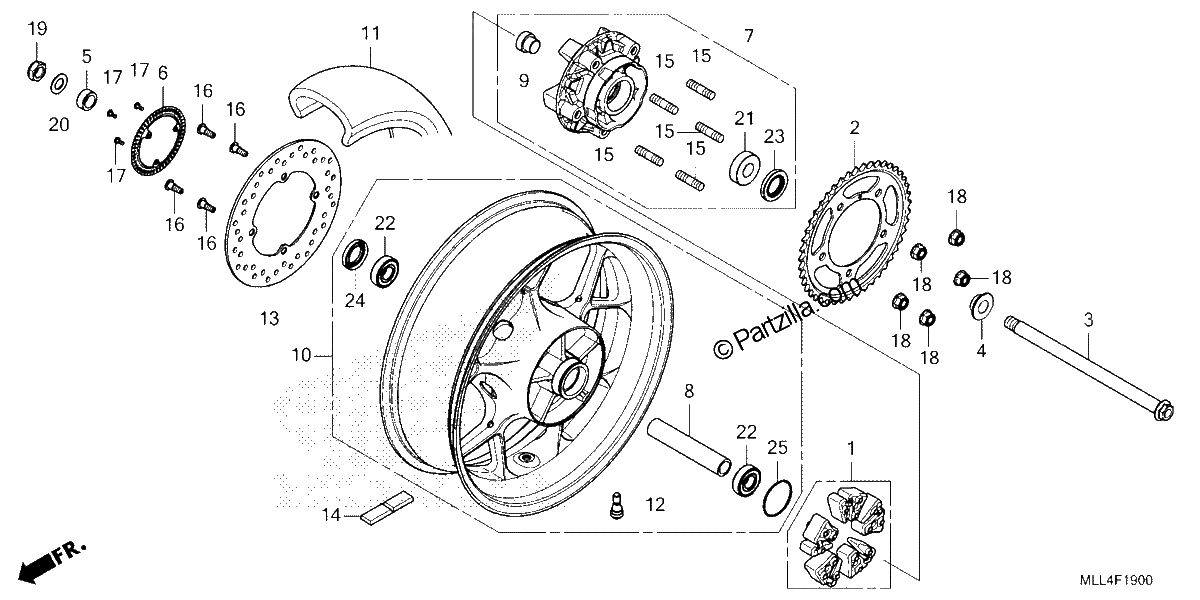

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$67.19¢33 594
#002
SPROCKET, FINAL DRIVEN (45T)
$75.58¢37 788
#003
AXLE, Rear WHEEL
$45.45¢22 725
#004
COLLAR, L. RR. WHEEL SIDE
$27.31¢13 656
#005
COLLAR, RR. BRAKE SIDE
$18.14¢9 069
#006
RING, RR. PULSER
$57.05¢28 525
#007
FLANGE SUB-Assembly., Rear DRIVEN
$188.94¢94 469
#008
COLLAR, Rear AXLE DISTANCE
$28.28¢14 138
#009
COLLAR B, RR. WHEEL DISTANCE
$22.61¢11 306
#010
WHEEL SUB-Assembly., Rear. (TYPE2)
$862.25¢431 125
#011
TIRE, Rear. (180/55ZR17) (M/C 73W) (BS)
$255.05¢127 525
#011
TIRE, Rear. (180/55ZR17) (M/C 73W) (DUNLOP)
$260.80¢130 400
#012
VALVE, RIM (IRC)
$10.15¢5 075
#012
VALVE, RIM
$0.71¢356
#012
VALVE, RIM (TRITON)
$0.71¢356
#012
VALVE, RIM (BS)
$14.79¢7 394
#012
VALVE, RIM (DUNLOP)
$14.79¢7 394
#012
VALVE, RIM (SCHRADER)
$14.79¢7 394
#013
DISK, Rear BRAKE
$98.79¢49 394
#014
WEIGHT, BALANCE (10G)
No Disponible
#014
WEIGHT, BALANCE (15G)
$5.31¢2 656
#014
WEIGHT, BALANCE (20G)
$5.22¢2 613
#015
BOLT, STUD (12X25)
$4.86¢2 431
#016
BOLT, DISK (8X25)
$3.65¢1 825
#017
BOLT, TORX (5X10)
$3.43¢1 713
#018
NUT, FLANGE (12MM) (FUSE RASHI)
$4.68¢2 338
#019
NUT, U (18MM)
$8.26¢4 131
#020
WASHER (18X32X2)
$5.42¢2 713
#021
BEARING, ANGULAR BALL (22X50X15)
$38.10¢19 050
#022
BEARING, RADIAL BALL (6204UU) (NSK)
$17.75¢8 875
#023
DUST SEAL (30X50X7)
$14.92¢7 462
#024
DUST SEAL (30X47X7.5)
$18.51¢9 256
#025
O-RING (55X2)
$3.65¢1 825
