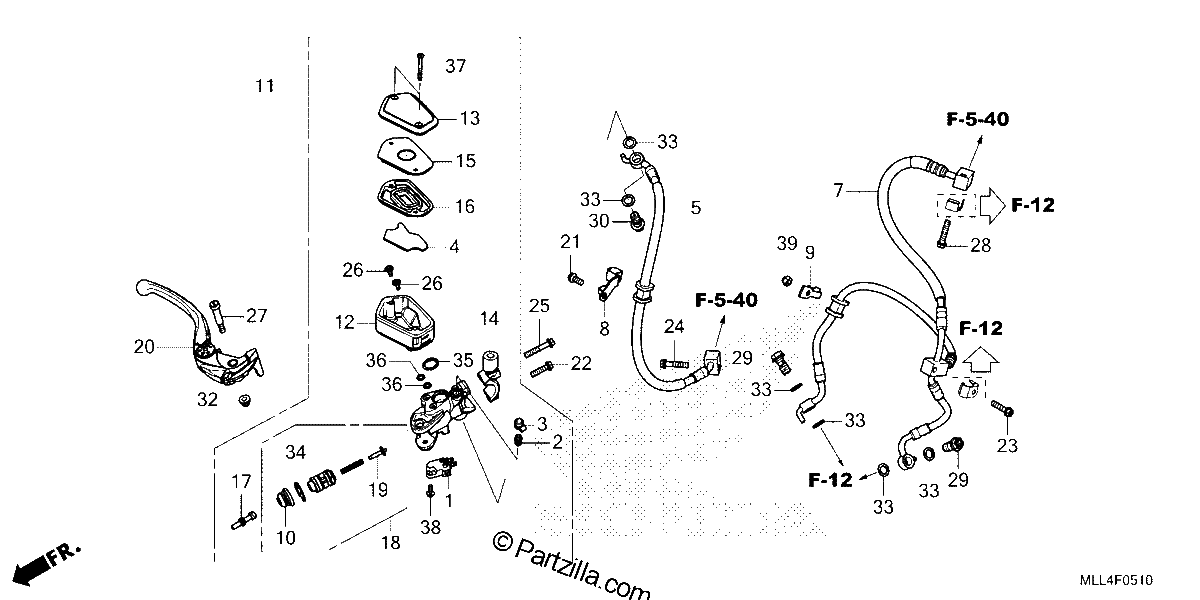

FRONT BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#002
SCREW, BLEEDER (NISSIN)
$9.63¢4 813
#003
CAP, BLEEDER
$6.13¢3 063
#004
FLOAT
$4.33¢2 163
#005
HOSE A, Front BRAKE
$50.23¢25 113
#007
HOSE D, Front BRAKE
$121.99¢60 994
#008
CLAMP A, Front BRAKE HOSE
$6.27¢3 137
#009
CLAMP A, FR. BRAKE HOSE
$4.69¢2 344
#010
BOOT
$15.29¢7 644
#011
MASTER CYLINDER SUB-ASSY., FR.
$405.48¢202 738
#012
TANK, OIL
$24.04¢12 019
#013
CAP
$42.07¢21 037
#014
HOLDER, MASTER CYLINDER
$14.40¢7 200
#015
PLATE, DIAPHRAGM
$10.38¢5 188
#016
DIAPHRAGM
$19.51¢9 756
#017
ROD, PUSH
$17.05¢8 525
#018
MASTER CYLINDER SET
$67.24¢33 619
#019
GUIDE, SPRING
$5.71¢2 856
#020
LEVER ASSY., R. HANDLE
$59.13¢29 563
#021
BOLT, FLANGE (6X14)
$2.88¢1 438
#022
BOLT, FLANGE (6X22)
$2.81¢1 406
#023
BOLT, FLANGE (6X25)
$2.91¢1 456
#024
BOLT, FLANGE (6X28)
$2.88¢1 438
#025
BOLT, FLANGE (6X32)
$3.20¢1 600
#026
SCREW, TRIPLE (4X11)
$4.00¢2 000
#027
BOLT, HANDLE LEVER
$7.05¢3 525
#028
BOLT, FLANGE (6X28)
$1.80¢900
#029
BOLT, OIL (10X20)
$7.18¢3 588
#030
BOLT, OIL (10X22)
$8.89¢4 444
#032
NUT, CAP (6MM)
$3.57¢1 787
#033
WASHER, OIL BOLT
$4.85¢2 425
#034
CIRCLIP
$2.91¢1 456
#035
O-RING (14.8X2.4)
$3.30¢1 650
#036
O-RING
$3.81¢1 906
#037
SCREW, FLAT (4X35)
$0.61¢306
#038
SCREW-WASHER (4X12)
$1.72¢862
#038
SCREW-WASHER (4X12)
$1.72¢862
#039
NUT, CAP (6MM)
$1.99¢994
