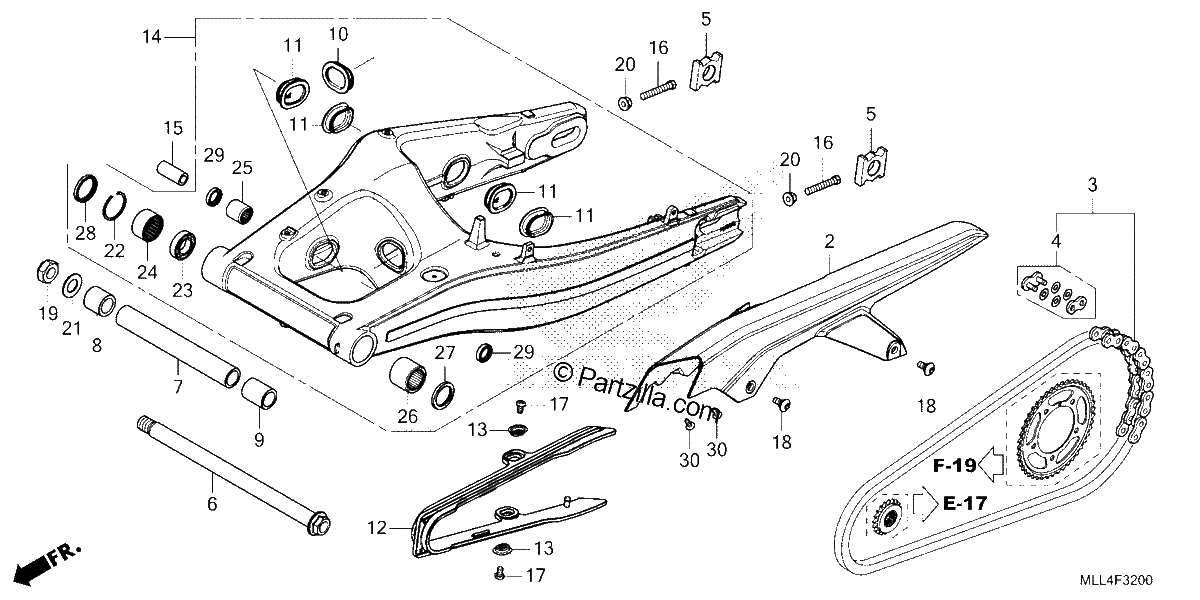

SWINGARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#002
CASE, DRIVE CHAIN
$60.80¢30 400
#003
CHAIN, DRIVE (RK JAPAN) (RK525ROZ9-120LJFZ9)
$225.38¢112 688
#004
MASTER LINK (RK JAPAN)
$15.19¢7 594
#005
COLLAR, Rear AXLE
$19.13¢9 563
#006
BOLT, SWINGARM PIVOT
$39.67¢19 838
#007
COLLAR, CENTER PIVOT DISTANCE
$31.44¢15 719
#008
COLLAR, R. PIVOT DISTANCE
$24.00¢12 000
#009
COLLAR, L PIVOT DISTANCE
$25.90¢12 950
#010
CAP, Rear SWINGARM
$5.54¢2 769
#011
CAP, Rear SWINGARM
$3.43¢1 713
#012
SLIDER, CHAIN
$33.49¢16 744
#013
WASHER, CHAIN SLIDER
$3.33¢1 663
#014
SWINGARM SUB-Assembly., Rear.
$1018.77¢509 388
#015
COLLAR, CUSHION CONNECTING ROD
$13.66¢6 831
#016
BOLT, HEX. (8X50)
$2.81¢1 406
#017
SCREW, PAN (5X8)
$3.36¢1 681
#018
SCREW, SPECIAL (6X14)
$1.72¢862
#019
NUT, U (18MM)
$18.38¢9 188
#020
NUT, HEX. (8MM)
$4.13¢2 063
#021
WASHER (18X32X2)
$5.42¢2 713
#022
CIRCLIP (INNER) (37)
$4.04¢2 019
#023
BEARING, RADIAL BALL (20X37X9)
$12.89¢6 444
#024
BEARING, NEEDLE (30X37X20)
$24.74¢12 369
#025
BEARING, NEEDLE (KOYO)
$28.90¢14 450
#026
BEARING, NEEDLE
$29.82¢14 913
#027
DUST SEAL (28X37X4)
$7.70¢3 850
#028
DUST SEAL (30X37X4)
$10.15¢5 075
#029
DUST SEAL (17X24X5) (ARAI)
$7.51¢3 756
#030
SCREW, TAPPING (4X12)
$1.16¢581
