FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

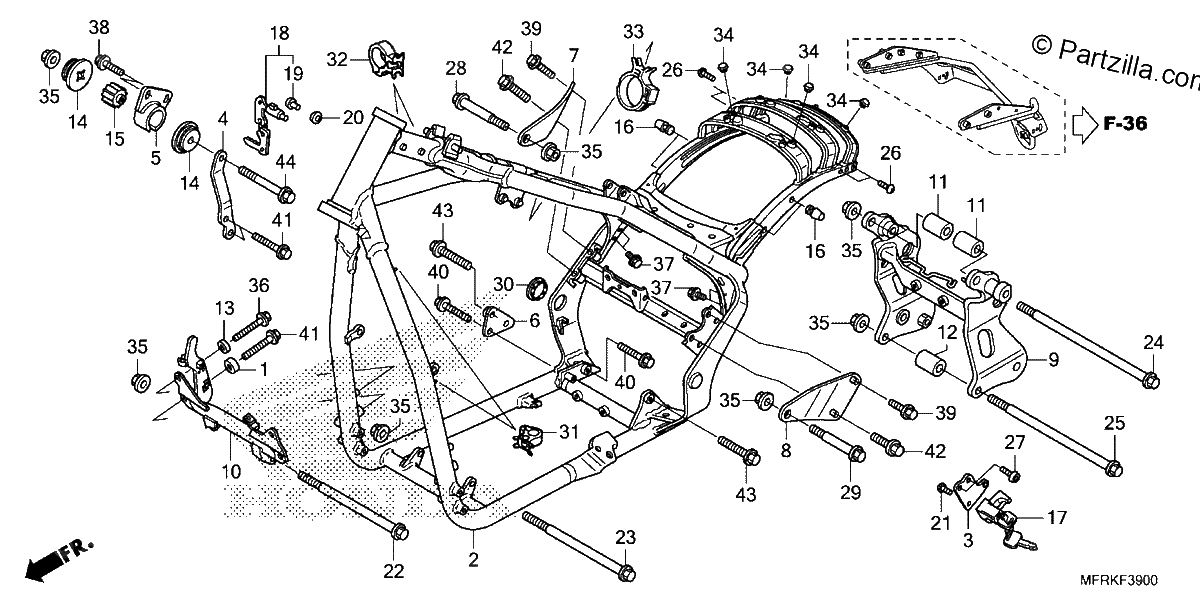

Diagrama de FRAME

Repuestos

#001
18309-GN3-670
COLLAR B, MUFFLER STAY
$2.86¢1 432
1
#002
50100-MFR-L00ZF
FRAME *NHA86M* (MAT BALLISTIC BLACK)
$3387.64¢1 693 818
1
#003
50165-MFR-670
BRACKET, HELMET HOLDER
$6.64¢3 318
1
#004
50202-MFR-670
PLATE, ENGINE HANGER (LOWER)
$40.66¢20 332
1
#005
50203-MFR-670
PLATE, ENGINE HANGER CENTER
$63.80¢31 901
1
#006
50204-MFR-670
PLATE, RR. ENGINE MOUNT (LOWER) (RH)
$17.61¢8 803
1
#007
50207-MFR-670
PLATE, R. RR. ENGINE HANGER (UPPER)
$51.49¢25 743
1
#008
50208-MFR-670
PLATE, L. RR. ENGINE HANGER (UPPER)
$51.49¢25 743
1
#009
50210-MFR-670
PLATE, PIVOT MOUNT
$371.75¢185 874
1
#010
50220-MFR-670
PIPE, FR. CROSS
$238.67¢119 335
1
#011
50221-MFR-670
COLLAR, ENGINE HANGER (24X41.5)
$10.37¢5 187
1
#012
50223-MFR-670
COLLAR, ENGINE HANGER (24X32)
$8.39¢4 198
1
#013
50232-MFR-670
COLLAR A, FR. CROSS PIPE
$3.75¢1 874
1
#014
50302-HN8-003
RUBBER C, MOUNTING
$8.39¢4 198
1
#015
50305-HN8-003
RUBBER, ENGINE HEAD MOUNTING
$12.39¢6 193
1
#016
50352-428-000
RUBBER A, STOPPER
$3.36¢1 679
1
#017
50710-GCN-003
HOLDER ASSY., HELMET (HONDALOCK)
$30.84¢15 421
1
#018
53600-MFR-AC0
LOCK SET, HANDLEBAR
$99.08¢49 542
1
#019
53603-MFR-AC1
RIVET
$3.01¢1 507
1
#020
53604-098-941
WASHER (4.5MM)
$2.81¢1 403
1
#021
90105-KEB-620
BOLT, ONE-WAY (6X12)
$2.68¢1 340
1
#022
90110-MFR-670
BOLT, FLANGE (10X148)
$9.22¢4 611
1
#023
90111-MFR-670
BOLT, FLANGE (10X151)
$9.64¢4 819
1
#024
90112-MFR-670
BOLT, FLANGE (10X235.5)
$11.41¢5 704
1
#025
90117-MFR-670
BOLT, FLANGE (10X212)
$11.41¢5 704
1
#026
90118-MR1-000
SCREW, PAN (6X14)
$3.45¢1 725
1
#027
90130-MEW-D20
BOLT, TORX (6X13)
$3.63¢1 817
1
#028
90154-MFR-670
BOLT, FLANGE (10X52)
$14.86¢7 429
1
#029
90155-MFR-670
BOLT, FLANGE (10X66)
$16.13¢8 067
1
#030
90312-MB0-700
CAP, Right LOCK NUT
$19.45¢9 723
1
#031
90690-GHB-641
CLIP, CABLE (10MM)
$2.59¢1 294
1
#032
90690-GHB-651
CLIP, CABLE (15MM)
$2.59¢1 294
1
#033
90690-GHB-661
CLIP, CABLE (20MM)
$2.59¢1 294
1
#034
90852-446-630
PLUG, HOLE
$3.04¢1 518
1
#035
90303-428-900
NUT, FLANGE (10MM)
$3.74¢1 869
1
#035
94050-10070
NUT, FLANGE (10MM)
$3.74¢1 869
1
#036
95701-06028-07
BOLT, FLANGE (6X28)
$1.33¢667
1
#037
95701-08012-07
BOLT, FLANGE (8X12)
$2.13¢1 064
1
#038
95701-08020-07
BOLT, FLANGE (8X20)
$2.21¢1 104
1
#039
95701-08025-07
BOLT, FLANGE (8X25)
$1.09¢546
1
#040
95701-08028-07
BOLT, FLANGE (8X28)
$1.47¢736
1
#041
95701-08030-07
BOLT, FLANGE (8X30)
$2.69¢1 346
1
#042
95701-10025-07
BOLT, FLANGE (10X25)
$1.68¢839
1
#043
95701-10032-07
BOLT, FLANGE (10X32)
$2.09¢1 047
1
#044
95701-10065-07
BOLT, FLANGE (10X65)
$2.60¢1 299
1
