RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

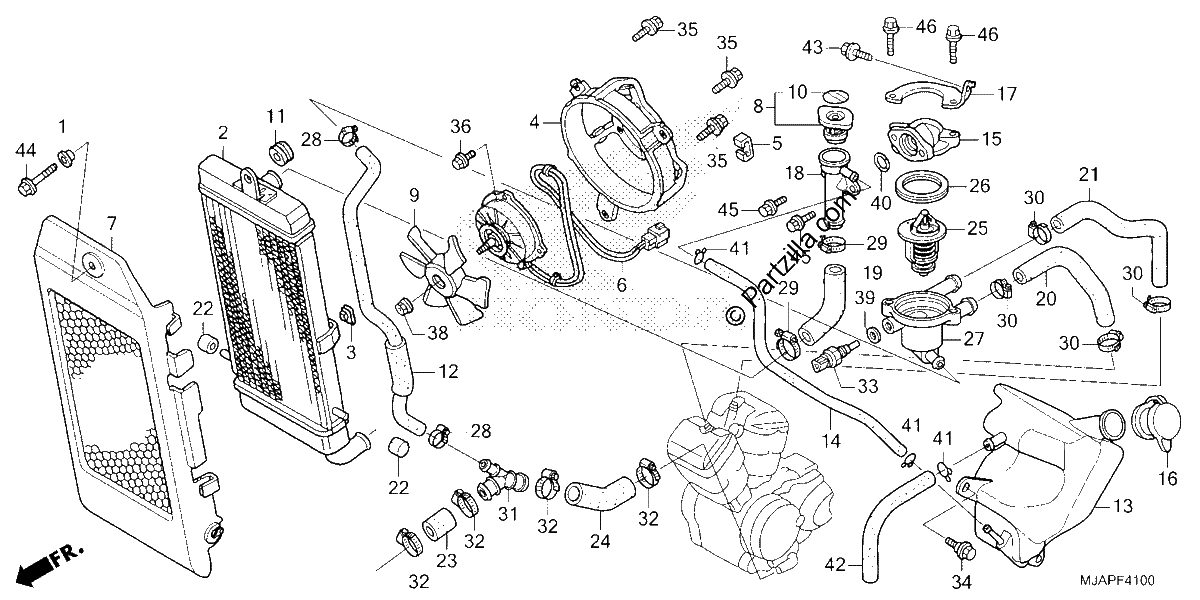

Diagrama de RADIATOR

Repuestos

#001
19052-MEG-H10
COLLAR, RADIATOR MOUNTING
$8.15¢4 075
1
#002
19010-MFE-641
RADIATOR
$635.68¢317 838
1
#002
19010-MFE-305
RADIATOR (COO)
$635.68¢317 838
1
#003
19014-KEA-003
NUT, SETTING (6MM)
$3.75¢1 875
1
#004
19015-MBA-003
SHROUD
$69.24¢34 619
1
#005
19017-PK1-004
CLIP, HARNESS (TOYO)
$12.41¢6 206
1
#006
19030-MFE-641
MOTOR ASSY., FAN
$332.36¢166 181
1
#007
19032-MEG-H10
GRILLE, RADIATOR
$123.46¢61 731
1
#008
19037-GEE-710
CAP, RADIATOR
$35.16¢17 581
1
#009
19040-MF5-751
FAN, COOLING (TOYO)
$81.39¢40 694
1
#010
19046-PAA-A00
LABEL, RADIATOR CAP
$3.65¢1 825
1
#011
19051-KA3-710
RUBBER, RADIATOR MOUNTING
$6.13¢3 063
1
#012
19071-MFE-640
HOSE, BYPASS
$30.74¢15 369
1
#013
19101-MEG-000
TANK, RESERVE
$38.75¢19 375
1
#014
19102-MEG-000
HOSE, RESERVE TANK
$11.21¢5 606
1
#015
19103-MBA-000
CAP, THERMOSTAT
$63.36¢31 681
1
#016
19104-MB0-700
CAP, RESERVE TANK
$14.13¢7 063
1
#017
19105-MFE-640
STAY, THERMOSTAT CASE
$5.41¢2 706
1
#018
19106-MFE-641
NECK, FILLER
$42.01¢21 006
1
#019
19107-MFE-640
HOSE, RADIATOR (UPPER)
$12.59¢6 294
1
#020
19108-MFE-640
HOSE, FR. OUTLET WATER
$14.55¢7 275
1
#021
19110-MFE-640
HOSE, Rear OUTLET WATER
$17.54¢8 769
1
#022
19112-MF5-840
MOUNT, RADIATOR (LOWER)
$6.20¢3 100
1
#023
19115-MEG-A60
HOSE A, RADIATOR (LOWER)
$16.35¢8 175
1
#024
19116-MEG-A60
HOSE B, RADIATOR (LOWER)
$20.45¢10 225
1
#025
19300-MCH-A00
THERMOSTAT ASSY.
$55.46¢27 731
1
#026
19305-KV3-010
RUBBER, THERMOSTAT
$7.35¢3 675
1
#027
19311-MFE-640
CASE, THERMOSTAT
$74.23¢37 113
1
#028
19504-KY1-003
CLAMP, WATER HOSE (25MM)
$12.04¢6 019
1
#029
19505-ML3-770
CLAMP, WATER HOSE
$8.58¢4 288
1
#030
19506-KS6-700
CLAMP B, WATER HOSE
$9.10¢4 550
1
#031
19507-MFE-640
JOINT, THREE WAY HOSE
$7.95¢3 975
1
#032
19509-MM5-003
CLAMP, RADIATOR HOSE
$15.88¢7 938
1
#033
37870-KRJ-901
SENSOR ASSY., WATER TEMPERATURE
$35.96¢17 981
1
#034
90111-162-000
BOLT, FLANGE (6MM)
$3.65¢1 825
1
#035
90120-KCR-003
BOLT-WASHER (6X16)
$5.32¢2 662
1
#036
90196-MBB-003
BOLT, FLANGE (5X10)
$3.43¢1 713
1
#038
90315-MK3-003
NUT, SERRATE (5MM)
$2.99¢1 494
1
#039
90454-MC7-000
WASHER, SPECIAL (12MM)
$3.36¢1 681
1
#040
94608-30000
O-RING (23X2.4)
$1.54¢769
1
#041
95002-70000
CLIP, TUBE (C11)
$2.11¢1 056
1
#042
95005-70003-30M
BULK HOSE, VACUUM (7X3000) OEM CUT SIZE: (7X200)
$27.41¢13 706
1
#043
95701-06012-00
BOLT, FLANGE (6X12)
$2.09¢1 044
1
#044
95701-06028-07
BOLT, FLANGE (6X28)
$1.45¢725
1
#045
96001-06012-00
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#046
96001-06020-00
BOLT, FLANGE (6X20)
$1.60¢800
1
