SIDE GEAR CASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

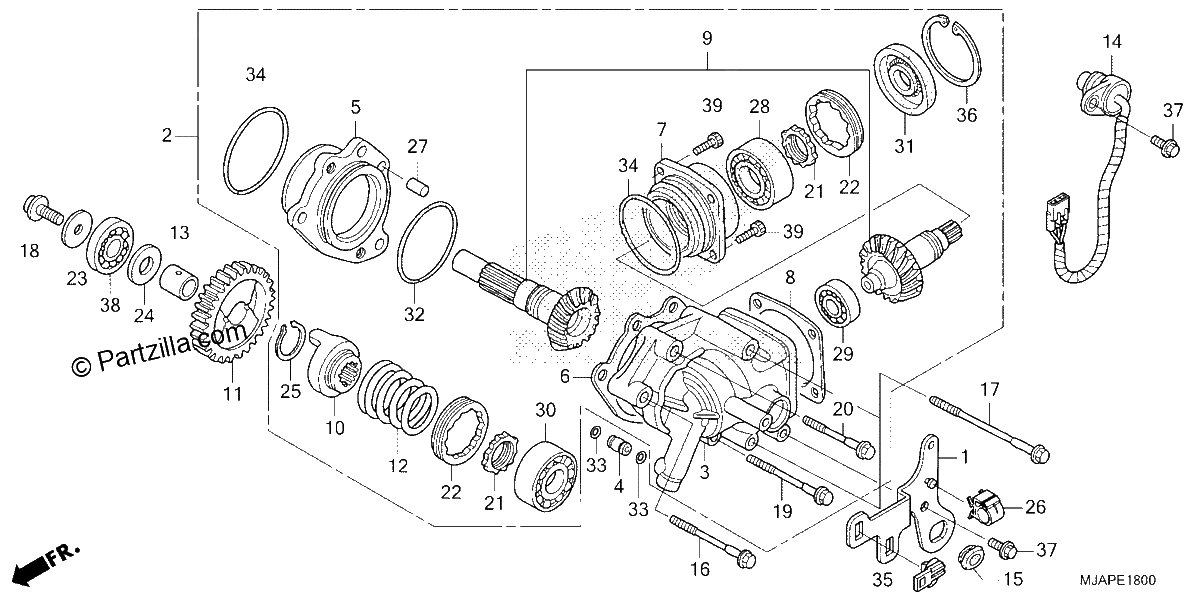

Diagrama de SIDE GEAR CASE

Repuestos

#001
11380-MEG-A60
STAY, L Rear COVER
$10.86¢5 431
1
#002
21100-MEG-000
CASE ASSY., SIDE GEAR
$1609.35¢804 675
1
#003
21200-MEG-000
CASE, SIDE GEAR
$726.06¢363 031
1
#004
21215-ME9-000
ORIFICE, SIDE GEAR CASE
$12.38¢6 188
1
#005
21281-MS9-750
HOLDER, FINAL DRIVESHAFT BEARING
$76.83¢38 413
1
#006
21309-MEG-000
SHIM, FINAL DRIVESHAFT (0.30)
$16.45¢8 225
1
#006
21310-MEG-000
SHIM, FINAL DRIVESHAFT (0.35)
$16.45¢8 225
1
#006
21311-MEG-000
SHIM, FINAL DRIVESHAFT (0.40)
$16.45¢8 225
1
#006
21312-MEG-000
SHIM, FINAL DRIVESHAFT (0.45)
$16.45¢8 225
1
#006
21313-MEG-000
SHIM, FINAL DRIVESHAFT (0.50)
$16.45¢8 225
1
#006
21314-MEG-000
SHIM, FINAL DRIVESHAFT (0.55)
$16.45¢8 225
1
#006
21315-MEG-000
SHIM, FINAL DRIVESHAFT (0.60)
$16.45¢8 225
1
#006
21316-MEG-000
SHIM, FINAL DRIVESHAFT (0.65)
$16.45¢8 225
1
#006
21317-MEG-000
SHIM, FINAL DRIVESHAFT (0.70)
$16.45¢8 225
1
#006
21318-MEG-000
SHIM, FINAL DRIVESHAFT (0.75)
$16.45¢8 225
1
#007
21371-MS9-000
HOLDER, CROSS SHAFT BEARING
$82.40¢41 200
1
#008
21377-MB0-770
SHIM, CROSS SHAFT (0.20)
$29.77¢14 888
1
#008
21378-MB0-770
SHIM, CROSS SHAFT (0.25)
$28.49¢14 244
1
#008
21379-MB0-770
SHIM, CROSS SHAFT (0.30)
$28.49¢14 244
1
#008
21380-MB0-770
SHIM, CROSS SHAFT (0.35)
$28.49¢14 244
1
#008
21381-MB0-770
SHIM, CROSS SHAFT (0.40)
$32.50¢16 250
1
#008
21382-MB0-770
SHIM, CROSS SHAFT (0.45)
$32.50¢16 250
1
#008
21383-MB0-770
SHIM, CROSS SHAFT (0.50)
$32.50¢16 250
1
#008
21384-MB0-770
SHIM, CROSS SHAFT (0.55)
$32.50¢16 250
1
#008
21385-MB0-770
SHIM, CROSS SHAFT (0.60)
$32.50¢16 250
1
#009
23200-MEG-000
SHAFT SET, FINAL DRIVE
$364.51¢182 256
1
#010
23721-ME9-000
LIFTER, DAMPER
$98.28¢49 138
1
#011
23726-MBL-610
GEAR, DAMPER SHAFT (32T)
$124.26¢62 131
1
#012
23732-MS9-750
SPRING, DAMPER
$31.34¢15 669
1
#013
23733-MS9-000
COLLAR (20X24X19.8)
$12.46¢6 231
1
#014
37700-MFE-641
SENSOR ASSY., SPEED
$114.63¢57 313
1
#015
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.81¢3 406
1
#016
90029-MBL-610
BOLT, UBS (8X65)
$3.59¢1 794
1
#017
90030-MBL-610
BOLT, UBS (8X110)
$4.90¢2 450
1
#018
90037-ME9-000
BOLT, SPECIAL (10MM)
$9.32¢4 663
1
#019
90063-MB0-003
BOLT, UBS (8X60)
$7.72¢3 863
1
#020
90065-HA8-680
BOLT, UBS (8X45)
$9.14¢4 569
1
#021
90241-MB0-000
NUT, LOCK (30MM)
$24.49¢12 244
1
#022
90242-MB0-000
NUT, LOCK (64MM)
$37.75¢18 875
1
#023
90409-952-000
WASHER (10MM)
$2.92¢1 463
1
#024
90451-704-000
WASHER A, THRUST (20MM)
$4.13¢2 063
1
#024
90451-MKW-D00
WASHER, THRUST (20X35X1.5)
$3.04¢1 519
1
#025
90602-463-000
CIRCLIP (OUTER) (28MM)
$4.69¢2 344
1
#026
90690-GHB-651
CLIP, CABLE (15MM)
$2.81¢1 406
1
#027
90701-MG8-000
PIN, DOWEL (10X24)
$6.06¢3 031
1
#028
91012-MG7-003
BEARING, RADIAL BALL (5206)
$122.60¢61 300
1
#028
91008-300-008
BEARING, BALL (5206) (TOYO)
$122.60¢61 300
1
#029
91011-MB0-004
BEARING, BALL (6303) (TOYO)
$39.45¢19 725
1
#029
91011-MB0-003
BEARING, BALL (6303) (KOYO)
$39.45¢19 725
1
#030
91012-MG7-003
BEARING, RADIAL BALL (5206)
$122.60¢61 300
1
#031
91205-MG7-003
OIL SEAL (25X66X8.5) (ARAI)
$21.80¢10 900
1
#032
91301-MS9-003
O-RING (64X2.5)
$3.20¢1 600
1
#033
91307-422-000
O-RING (4.8X1.9)
$3.36¢1 681
1
#033
91313-MA6-005
O-RING (4.8X1.9) (NOK)
$3.36¢1 681
1
#034
91314-MG7-003
O-RING (69.5X3) (ARAI)
$10.81¢5 406
1
#035
91565-SEL-003
CLIP, CONNECTOR (BLACK)
$4.45¢2 225
1
#036
94520-65120
CIRCLIP (INNER) (65MM)
$3.94¢1 969
1
#037
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#038
96100-62040-00
BEARING, RADIAL BALL (6204)
$14.20¢7 100
1
#039
96700-08022-17
BOLT, SOCKET (8X22)
$2.60¢1 300
1
