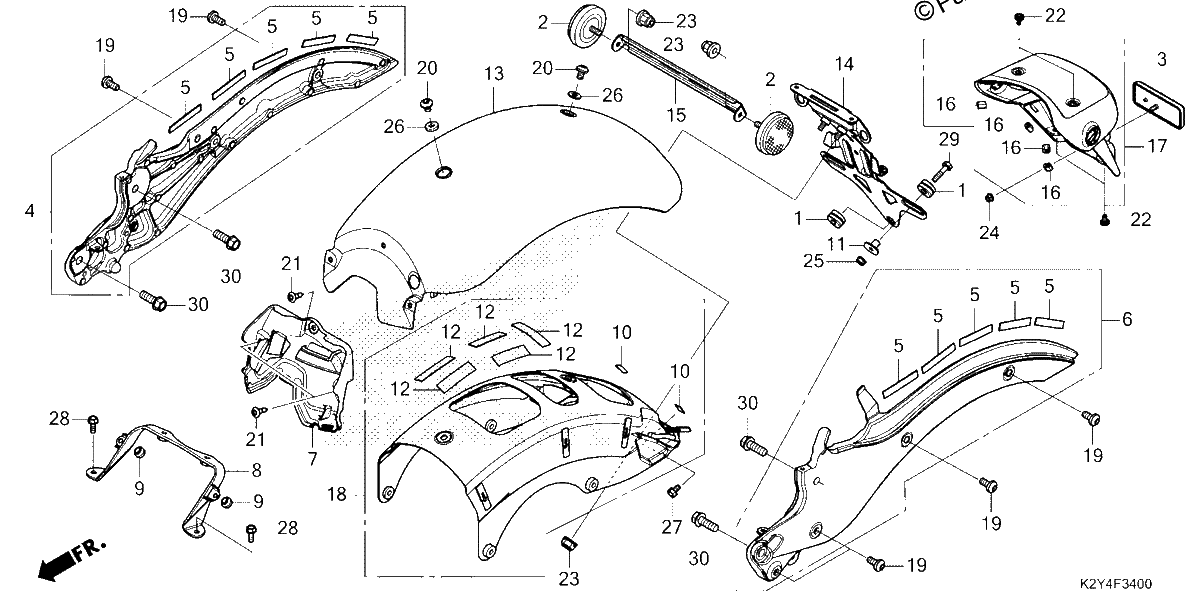

REAR FENDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RUBBER, AIR CLEANER HOUSING MOUNTING
$3.65¢1 825
#002
REFLECTOR, RR. REFLEX (RED)(THAI STANLEY)
$30.35¢15 175
#003
REFLECTOR, REFLEX
$8.94¢4 469
#004
FRAME Assembly., Right Rear. NH105 (MAT BLACK)
$222.46¢111 231
#005
RUBBER, RR. FRAME
$1.50¢750
#006
FRAME ASSY., L. RR. *NH105*(MAT BLACK)
$223.50¢111 750
#007
BOX B, BATTERY
$11.56¢5 781
#008
STAY, SEAT MOUNTING
$24.29¢12 144
#009
RUBBER, LINK STOPPER
$5.47¢2 738
#010
RUBBER, BATTERY (10X15X1)
$2.13¢1 063
#011
COLLAR, Front FENDER (WHITE)
$5.96¢2 981
#012
RUBBER, Rear FENDER
$2.19¢1 094
#013
FENDER SET, Rear. (TYPE1) (WL)
$56.89¢28 444
#014
STAY A, Rear FENDER
$38.33¢19 163
#015
STAY, RR. SIDE REFLECTOR
$16.74¢8 369
#016
RUBBER, PROTECTOR
$3.65¢1 825
#017
FENDER ASSY. A, RR.
$27.93¢13 963
#018
BRACE Assembly., Rear FRAME
$225.90¢112 950
#019
BOLT, SOCKET SPECIAL (8X18)
$0.74¢369
#020
BOLT, SOCKET SPECIAL (8X12)
$0.84¢419
#021
CLIP, BUMPER SEAL
$5.72¢2 863
#022
BOLT, SPECIAL (5X10)
$1.50¢750
#023
NUT, U (6MM) (FUJI SEIMITSU)
$1.79¢894
#024
NUT, U (5MM)
$0.86¢431
#025
NUT, FLANGE (6MM)
$0.80¢400
#026
WASHER, PLAIN (8MM)
$1.21¢606
#027
BOLT, FLANGE (6X10)
$2.09¢1 044
#028
BOLT, FLANGE (6X16)
$2.09¢1 044
#029
BOLT, FLANGE (6X25)
$2.31¢1 156
#030
BOLT, FLANGE (10X28)
$1.95¢975
