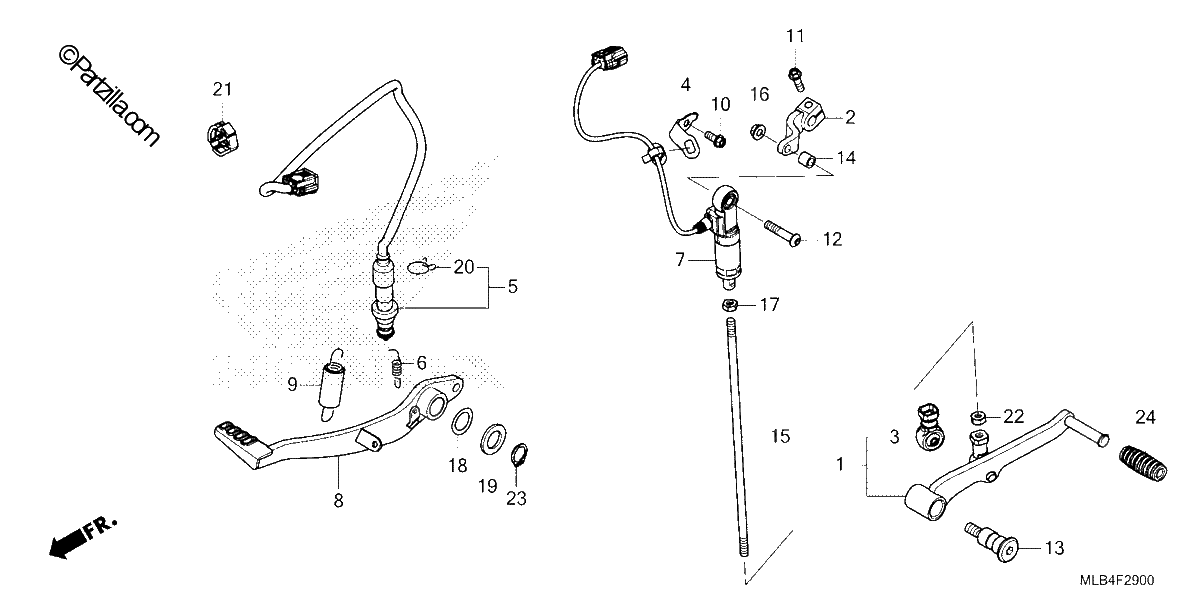

PEDAL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
PEDAL, GEARSHIFT
$96.31¢48 156
#002
ARM, GEARSHIFT (NOT AVAILABLE)
$40.28¢20 142
#003
COVER, DUST
$7.77¢3 887
#004
STAY, HARNESS CLIP
$3.60¢1 800
#005
SWITCH Assembly., Rear STOP
$40.02¢20 010
#006
SPRING, STOP SWITCH
$3.04¢1 518
#007
SENSOR Assembly., STROKE
$1047.89¢523 946
#007
SENSOR ASSY., STROKE
$1148.34¢574 172
#008
PEDAL, RR. BRAKE
$20.47¢10 235
#008
PEDAL, Rear BRAKE (COO)
$20.47¢10 235
#009
SPRING Assembly., BRAKE PEDAL
$3.36¢1 679
#010
BOLT, FLANGE (6X14)
$2.64¢1 322
#011
BOLT, FLANGE (6X20) (S-SHDR)
$2.13¢1 064
#012
BOLT, SOCKET (7X35) (OP)
$3.98¢1 989
#013
BOLT, CHANGE PIVOT
$21.09¢10 545
#014
COLLAR (10MM) (OP)
$2.30¢1 150
#015
BOLT, TIE ROD
$6.61¢3 306
#016
NUT, FLANGE (7MM)
$2.51¢1 254
#017
NUT, SPECIAL (6MM) (LEFT HAND THREAD)
$2.69¢1 346
#018
WASHER, CHANGE PEDAL WAVE
$4.48¢2 242
#019
WASHER (15.2X25)
$2.83¢1 414
#020
CLIP, SWITCH COVER
$3.16¢1 581
#021
CLAMP, HARNESS
$1.54¢771
#022
NUT, HEX. (6MM)
$0.92¢460
#023
CIRCLIP, OUTER (15MM)
$0.80¢402
#024
RUBBER, CHANGE PEDAL
$1.49¢747
