FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

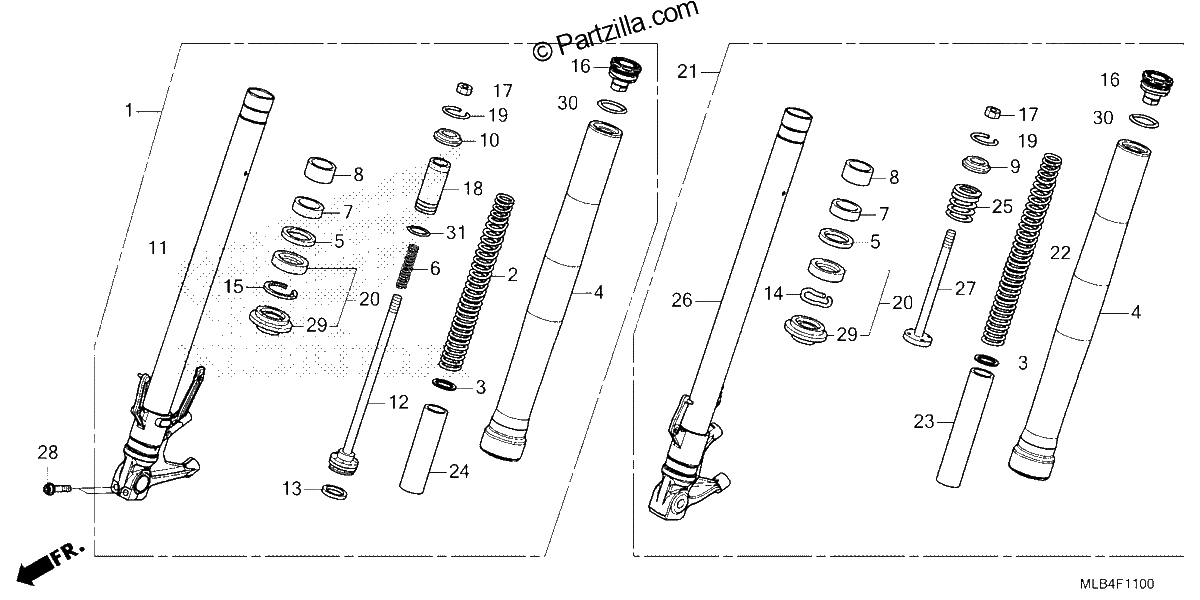

Diagrama de FRONT FORK

Repuestos

#001
51400-MLB-D21
FORK Assembly., Right Front. (SHOWA)
$850.53¢425 264
1
#002
51401-MLB-D01
SPRING, Right Front FORK
$65.91¢32 953
1
#003
51404-MKP-DN1
JOINT, SPRING
$3.71¢1 857
1
#004
51410-MLR-D81
TUBE (OUTER) (BLACK)
$306.20¢153 099
1
#005
51412-MB4-003
RING, BACK-UP (SHOWA)
$10.38¢5 192
1
#006
51412-MKP-DQ1
SPRING, R. REBOUND
$3.22¢1 610
1
#007
51414-MFJ-A51
BUSH, GUIDE
$8.10¢4 048
1
#008
51415-MFJ-A51
BUSH, SLIDER
$8.10¢4 048
1
#009
51419-K94-T01
SEAT, STOPPER
$10.95¢5 474
1
#010
51419-MKY-D51
SEAT, R. STOPPER
$7.60¢3 801
1
#011
51425-MLB-D01
PIPE, Right SLIDE (SHOWA)
$362.33¢181 165
1
#012
51426-MLB-D21
ROD, PISTON
$94.64¢47 323
1
#013
51437-MKY-D51
RING, PISTON
$1.64¢822
1
#014
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
1
#015
51447-MB4-003
CIRCLIP (INNER)
$5.19¢2 593
1
#016
51450-MLB-D21
BOLT, Front FORK
$63.07¢31 533
1
#017
51451-MKY-D51
NUT, HEX.
$16.21¢8 108
1
#018
51455-K0A-EB1
CASE, ROD GUIDE
$51.43¢25 714
1
#019
51456-K94-T01
RING, STOPPER
$2.64¢1 322
1
#020
51490-MKL-D81
SEAL SET, FR. FORK
$26.84¢13 420
1
#021
51500-MLB-D21
FORK Assembly., L Front. (SHOWA)
$734.56¢367 281
1
#022
51501-MLB-D01
SPRING, L Front FORK
$68.88¢34 442
1
#023
51511-MKP-DN1
COLLAR B, SPRING
$20.49¢10 247
1
#024
51511-MKP-DQ1
COLLAR B, SPRING
$16.04¢8 021
1
#025
51512-MKP-DQ1
SPRING, L. REBOUND
$4.96¢2 478
1
#026
51525-MLB-D01
PIPE, L SLIDE (SHOWA)
$362.33¢181 165
1
#027
51526-MLB-D01
ROD
$52.07¢26 036
1
#028
90107-MLB-D00
BOLT, FLANGE (8X40)
$2.68¢1 340
1
#029
91251-MKL-D81
DUST SEAL
$11.40¢5 698
1
#030
91258-MEE-D01
O-RING (39.7X2.4)
$2.51¢1 254
1
#031
91356-KF0-003
O-RING (33.2X2.4)
$4.20¢2 099
1
