RIGHT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

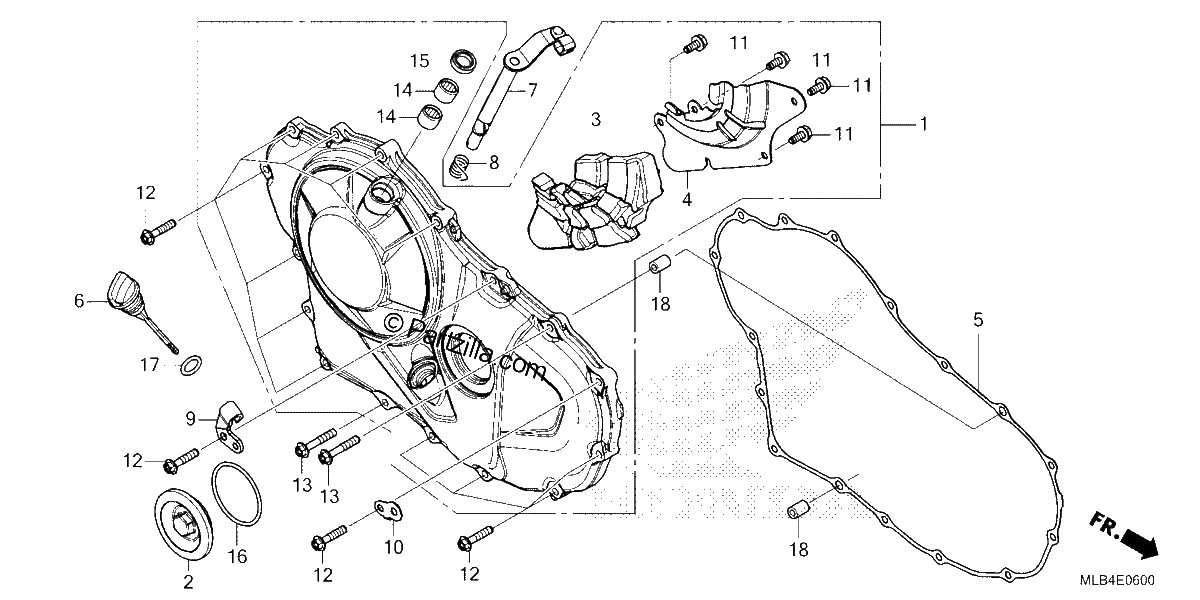

Diagrama de RIGHT CRANKCASE COVER

Repuestos

#001
11330-MLB-D00
COVER, R. CRANKCASE
$285.82¢142 913
1
#002
11332-MGZ-J00
CAP (45MM)
$25.86¢12 931
1
#003
11334-MLB-D00
RUBBER, R. COVER
$23.26¢11 631
1
#004
11336-MLB-D00
PLATE, R. COVER RUBBER
$17.88¢8 938
1
#005
11394-MLB-D01
GASKET, R. CRANKCASE COVER
$29.35¢14 675
1
#006
15651-MLB-D00
DIPSTICK, OIL
$9.35¢4 675
1
#007
22810-MLB-D00
LEVER, CLUTCH
$50.41¢25 206
1
#008
22815-MJE-D00
SPRING, CLUTCH LEVER
$1.41¢706
1
#009
22821-MLB-D00
RECEIVER, CLUTCH CABLE
$7.95¢3 975
1
#010
32157-MJM-D00
STAY, HARNESS CLIP
$5.93¢2 963
1
#011
90013-883-000
BOLT, FLANGE (6X12) (CT200)
$1.90¢950
1
#012
90028-GHB-690
BOLT, FLANGE (6X28) (S-NSHF)
$1.41¢706
1
#013
90028-GHB-720
BOLT, FLANGE (6X35) (S-NSHF)
$1.41¢706
1
#014
91053-MFJ-D01
BEARING, NEEDLE (12X16X10)
$5.17¢2 588
1
#015
91204-KK0-003
OIL SEAL (12X18X5) (ARAI)
$6.13¢3 063
1
#016
91301-ML7-003
O-RING (48.1X3.6) (ARAI)
$4.76¢2 381
1
#017
91307-035-000
O-RING (18X3)
$3.65¢1 825
1
#018
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
