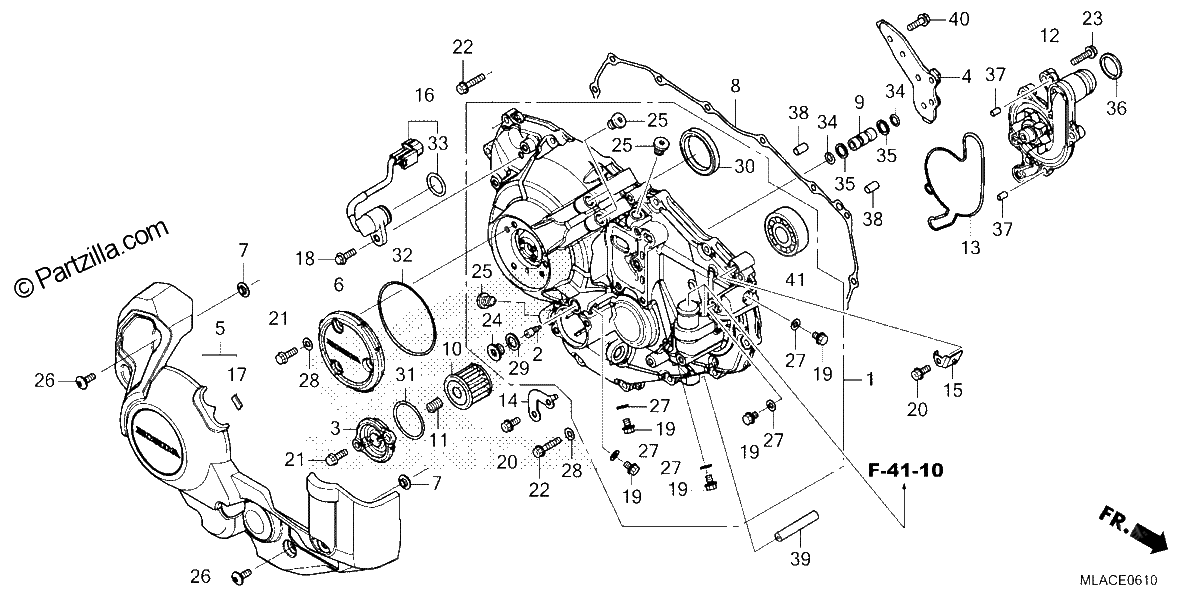

RIGHT CRANKCASE COVER CMX1100D D2 D3
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
COVER, R. CRANKCASE
$594.59¢297 294
#002
ORIFICE
$23.11¢11 556
#003
COVER, OIL FILTER
$34.08¢17 038
#004
COVER (INNER)
$58.61¢29 306
#005
COVER Assembly., Right ENGINE SIDE (WL)
$141.00¢70 500
#006
CAP, R. COVER
$112.56¢56 281
#007
COLLAR
$3.65¢1 825
#008
GASKET, R. CRANKCASE COVER
$56.54¢28 269
#009
PIPE, OIL PASSAGE
$12.59¢6 294
#010
ELEMENT, OIL FILTER
$9.90¢4 950
#011
SPRING, OIL FILTER
$3.38¢1 688
#012
WATER PUMP
$253.10¢126 550
#013
GASKET, WATER PUMP BODY
$12.39¢6 194
#014
STAY, HARNESS CLIP
$6.11¢3 056
#015
STAY, HARNESS CLIP
$4.71¢2 356
#016
SENSOR ASSY., ANGLE (40DEGREE)
$236.54¢118 269
#017
RUBBER, HANDLE COVER
$1.54¢769
#018
BOLT, KNOCK (6MM)
$3.71¢1 856
#019
BOLT, FLANGE (6X8)
$2.88¢1 438
#020
BOLT, FLANGE (6X14)
$2.88¢1 438
#021
BOLT, FLANGE (6X18)
$2.88¢1 438
#022
BOLT, FLANGE (6X28)
$2.81¢1 406
#023
BOLT, FLANGE (6X25)
$2.85¢1 425
#024
BOLT, SEALING (12X8)
$4.26¢2 131
#025
BOLT, SPECIAL (10MM)
$5.47¢2 738
#026
BOLT, SOCKET SPECIAL (6X17)
$3.11¢1 556
#027
WASHER, SEALING (6MM)
$2.40¢1 200
#028
WASHER, SEALING (6MM)
$2.92¢1 463
#029
WASHER (12MM)
$3.77¢1 888
#030
BEARING, RADIAL BALL (40X52X7)
$39.06¢19 531
#031
O-RING (39.8X2.2) (ARAI)
$6.50¢3 250
#032
O-RING (81X2.2)
$5.04¢2 519
#033
O-RING (16.5X2.5)
$6.19¢3 094
#034
O-RING (7.7X1.9)
$3.36¢1 681
#035
RING, BACK-UP (8X11)
$4.30¢2 150
#036
SEAL, WATER PIPE
$3.10¢1 550
#037
PIN, DOWEL (6X10)
$2.89¢1 444
#038
PIN, DOWEL (8X14)
$2.89¢1 444
#039
BULK HOSE, VACUUM (3.5X1000) OEM CUT SIZE: (3.5X50)
$10.09¢5 044
#040
BOLT, FLANGE (6X20)
$2.27¢1 138
#041
BEARING, RADIAL BALL (6304)
$16.71¢8 356
