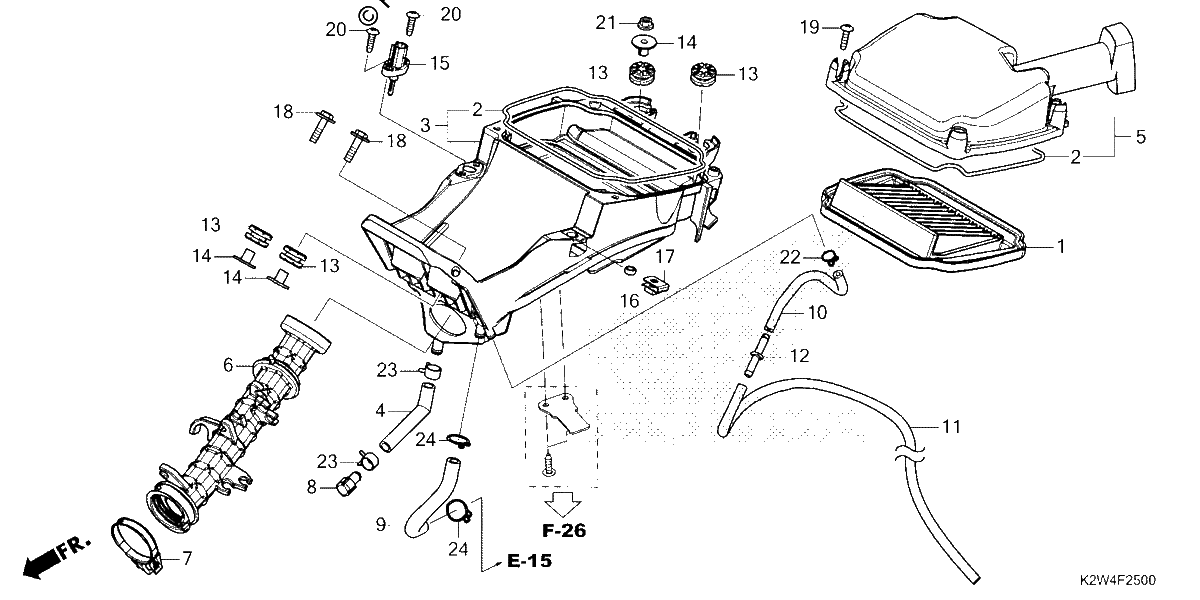

AIR CLEANER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
ELEMENT, AIR CLEANER
$7.69¢3 844
#002
SEAL, AIR CLEANER
$1.79¢894
#003
CASE SUB-Assembly., AIR CLEANER
$17.60¢8 800
#004
TUBE, DRAIN
$7.89¢3 944
#005
COVER SUB-Assembly., AIR CLEANER
$10.74¢5 369
#006
TUBE, AIR CLEANER CONNECTING
$33.14¢16 569
#007
BAND, CONNECTING TUBE (44)
$5.25¢2 625
#008
PLUG, BREATHER TUBE
$4.54¢2 269
#009
TUBE, BREATHER
$4.90¢2 450
#010
TUBE, BATTERY CASE DRAIN
$4.06¢2 031
#011
TUBE B, BATTERY DRAIN
$9.32¢4 663
#012
JOINT, TUBE
$3.08¢1 538
#013
RUBBER, TAILLIGHT MOUNTING
$3.15¢1 575
#014
COLLAR, TAILLIGHT MOUNTING (11MM)
$1.21¢606
#015
SENSOR ASSY., AIR TEMPERATURE
$51.75¢25 875
#016
COLLAR, RR. FENDER
$1.66¢831
#017
NUT, CLIP (6MM)
$7.01¢3 506
#018
BOLT-WASHER (6X25)
$1.41¢706
#019
SCREW, TAPPING (5X20)
$0.86¢431
#020
SCREW, TAPPING (5X20)
$2.21¢1 106
#021
NUT, FLANGE (6MM)
$0.80¢400
#022
CLIP, TUBE (B10)
$2.44¢1 219
#023
CLAMP, TUBE (D12)
$3.01¢1 506
#024
CLIP, TUBE (C12)
$0.60¢300
