FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

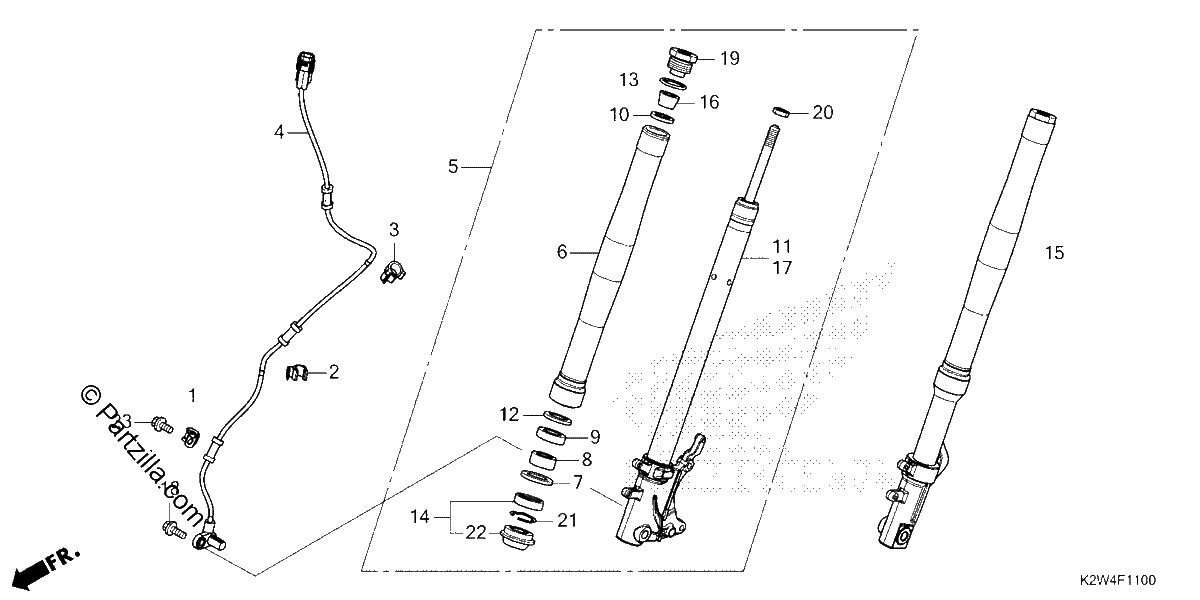

Diagrama de FRONT FORK

Repuestos

#001
38515-K26-C10
GUIDE, SENSOR WIRE
$3.62¢1 811
1
#002
38516-MGE-003
CLAMP, ABS WIRE (D8.5)
$3.68¢1 840
1
#003
38517-MGE-003
CLAMP, ABS WIRE (D12)
$3.22¢1 610
1
#004
38520-K2W-T11
SENSOR, Front WHEEL SPEED
$19.08¢9 539
1
#005
51400-K26-G61
FORK Assembly., Right Front. (SHOWA)
$486.74¢243 369
1
#006
51410-K26-G01
TUBE (OUTER)
$182.82¢91 408
1
#007
51412-KK4-003
RING, BACK-UP (SHOWA)
$7.37¢3 686
1
#008
51414-K0F-T01
BUSH, GUIDE
$12.20¢6 101
1
#009
51415-K20-901
BUSH, SLIDER
$22.33¢11 167
1
#010
51419-K20-T21
SEAT
$2.27¢1 133
1
#011
51425-K26-G51
DAMPER, Right Front.
$392.83¢196 414
1
#012
51438-K20-901
RING B, PISTON
$16.39¢8 194
1
#013
51458-K20-901
O-RING
$14.48¢7 239
1
#014
51490-KRM-852
SEAL SET, FR. FORK (SHOWA)
$22.46¢11 230
1
#015
51500-K26-G01
FORK ASSY., L. FR. (SHOWA)
$454.63¢227 315
1
#016
51517-K20-T21
RUBBER, STOPPER
$2.54¢1 271
1
#017
51525-K26-G01
DAMPER, L Front.
$400.17¢200 083
1
#018
90117-KZZ-J80
BOLT, FLANGE (6X14)
$0.68¢339
1
#019
90123-K20-T21
BOLT, FR. FORK
$23.98¢11 989
1
#020
90301-MB9-950
NUT, LOCK (12MM) (SOURCE: VINTAGE PARTS INC.)
$3.86¢1 932
1
#021
90601-354-000
RING, OIL SEAL STOP (SHOWA)
$5.72¢2 858
1
#022
91254-GAA-003
DUST SEAL (SHOWA)
$18.16¢9 079
1
#023
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
