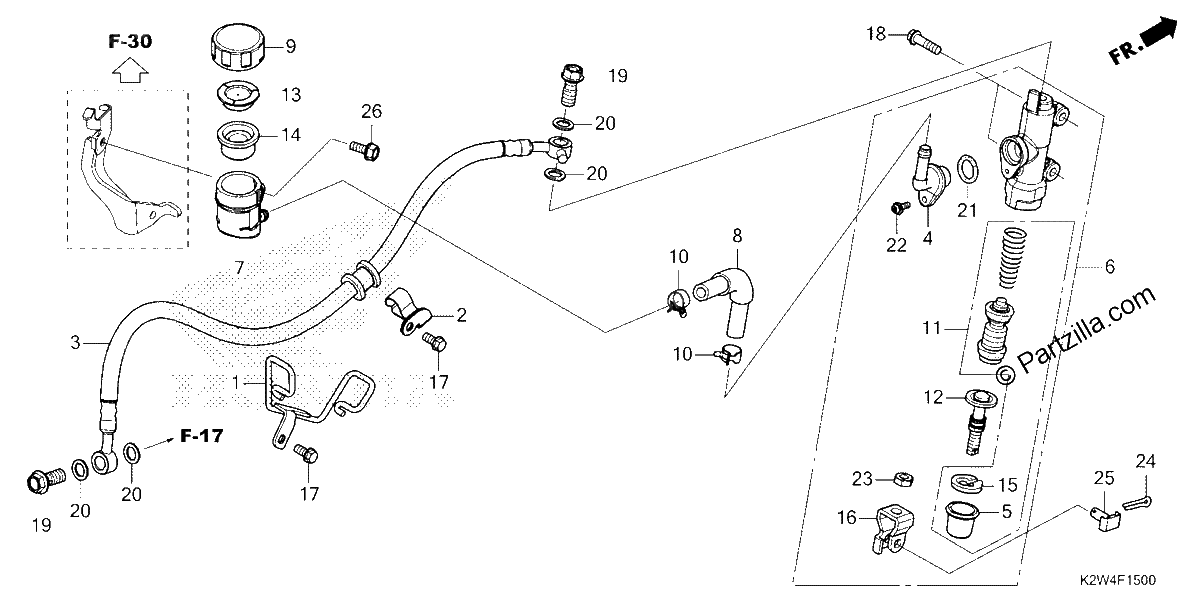

REAR BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CLAMP, Rear BRAKE HOSE
$9.67¢4 836
#002
CLAMP, Rear BRAKE HOSE
$4.13¢2 064
#003
HOSE, Rear BRAKE
$15.51¢7 757
#004
CONNECTOR, MASTER CYLINDER
$9.17¢4 583
#005
BOOT
$10.80¢5 399
#006
MASTER CYLINDER SUB-Assembly., Rear BRAKE (NISSIN)
$79.82¢39 911
#007
CUP, MASTER CYLINDER OIL
$4.92¢2 461
#008
HOSE, Rear BRAKE MASTER CYLINDER
$10.20¢5 100
#009
CAP, MASTER CYLINDER
$9.76¢4 882
#010
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
#011
PISTON SET, MASTER CYLINDER (NISSIN)
$48.82¢24 409
#012
ROD, PUSH
$27.04¢13 518
#013
PLATE, DIAPHRAGM
$4.99¢2 496
#014
DIAPHRAGM
$9.84¢4 922
#015
CIRCLIP
$2.30¢1 150
#016
JOINT, BRAKE ROD
$8.74¢4 370
#017
BOLT, FLANGE (6X12)
$2.75¢1 374
#018
BOLT, FLANGE (6X22) (SH)
$0.83¢414
#019
BOLT, OIL (10X22) (NISSIN)
$2.13¢1 064
#020
WASHER, OIL BOLT
$4.46¢2 231
#021
O-RING (14.8X2.4)
$3.04¢1 518
#022
SCREW-WASHER (4X12)
$1.59¢793
#022
SCREW-WASHER (4X12)
$1.59¢793
#023
NUT, HEX. (8MM)
$1.47¢736
#024
PIN, SPLIT (2.0X12)
$1.17¢586
#025
PIN D, JOINT
$4.74¢2 369
#026
BOLT, FLANGE (6X14)
$1.63¢816
