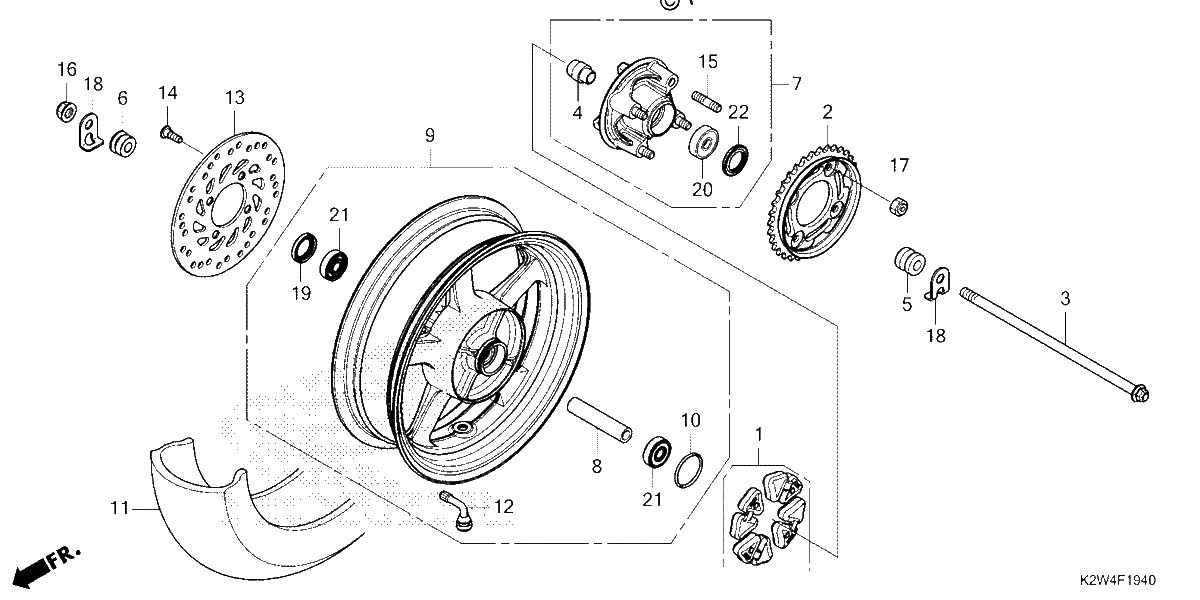

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$10.15¢5 077
#002
SPROCKET, FINAL DRIVEN (34T)
$20.14¢10 068
#003
AXLE, Rear WHEEL
$6.14¢3 070
#004
SLEEVE, RR. WHEEL
$3.36¢1 679
#005
COLLAR, L. RR. WHEEL SIDE
$13.27¢6 635
#006
COLLAR, Right Rear WHEEL SIDE
$9.81¢4 905
#007
FLANGE SUB-ASSY., FINAL DRIVEN
$70.81¢35 403
#008
COLLAR, RR. AXLE DISTANCE
$6.08¢3 042
#009
WHEEL SUB-Assembly., Rear. NH303M (MAT AXIS GRAY METALLIC)
$216.61¢108 307
#010
O-RING (40.5X3) (NIPPON DUST KEEPER)
$2.83¢1 414
#011
TIRE, Rear. (130/70-12 56L) (VEE)
$44.85¢22 425
#011
TIRE, Rear. (130/70-12 56L) (IRC)
$70.45¢35 225
#012
VALVE, RIM (DUNLOP)
$17.45¢8 723
#013
DISK, RR. BRAKE
$50.28¢25 139
#014
BOLT, BRAKE DISK (8X24)
$2.27¢1 133
#015
BOLT, STUD (8X18)
$0.77¢385
#016
NUT, U (12MM)
$4.52¢2 260
#017
NUT, U (8MM) (FUJI SEIMITSU)
$1.94¢972
#018
WASHER, Rear AXLE
$7.31¢3 657
#019
OIL SEAL (26X37X6) (ARAI)
$8.54¢4 272
#020
BEARING, RADIAL BALL (6203UU) (NTN)
$20.54¢10 269
#020
BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)
$20.54¢10 269
#021
BEARING, RADIAL BALL (6301U L)(NTN)
$7.72¢3 858
#021
BEARING, RADIAL BALL (6301U L)(FAG)
$7.72¢3 858
#022
DUST SEAL (27X40X4.5) (NOK)
$1.17¢586
