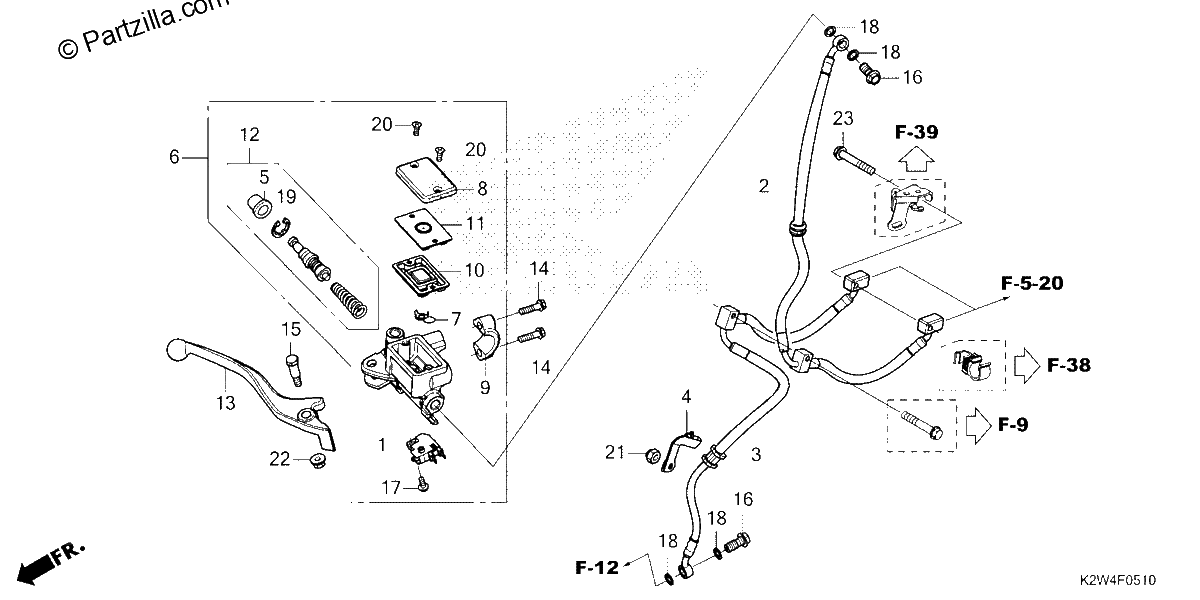

FRONT BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#002
HOSE A, Front BRAKE
$43.63¢21 813
#003
HOSE B, Front BRAKE
$44.18¢22 088
#004
CLAMP B, Front BRAKE HOSE
$5.54¢2 769
#005
BOOT
$14.24¢7 119
#006
MASTER CYLINDER SUB-ASSY., FR.BRAKE (COO) (NISSIN)
$127.96¢63 981
#006
MASTER CYLINDER SUB-ASSY., FR.BRAKE (NISSIN)
$127.96¢63 981
#007
PROTECTOR
$5.20¢2 600
#008
CAP, MASTER CYLINDER
$31.97¢15 987
#009
HOLDER, MASTER CYLINDER
$15.74¢7 869
#010
DIAPHRAGM
$10.88¢5 438
#011
PLATE, DIAPHRAGM
$2.92¢1 463
#012
MASTER CYLINDER SET
$46.40¢23 200
#013
LEVER, R. HANDLEBAR
$19.27¢9 638
#013
LEVER, Right HANDLEBAR (COO)
$19.27¢9 638
#014
BOLT, FLANGE (6X22)
$2.99¢1 494
#015
BOLT, HANDLE LEVER PIVOT
$1.25¢625
#016
BOLT, OIL (10X22) (NISSIN)
$2.31¢1 156
#017
SCREW-WASHER (4X12)
$0.33¢163
#017
SCREW-WASHER (4X12)
$1.72¢862
#017
SCREW-WASHER (4X12)
$1.72¢862
#018
WASHER, OIL BOLT
$4.85¢2 425
#019
CIRCLIP
$3.10¢1 550
#020
SCREW, FLAT (4X12)
$1.16¢581
#020
SCREW, FLAT (4X12)
$1.16¢581
#021
NUT, CAP (6MM)
$1.99¢994
#022
NUT, FLANGE (6MM)
$0.80¢400
#023
BOLT, FLANGE (6X35)
$2.79¢1 394
