AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

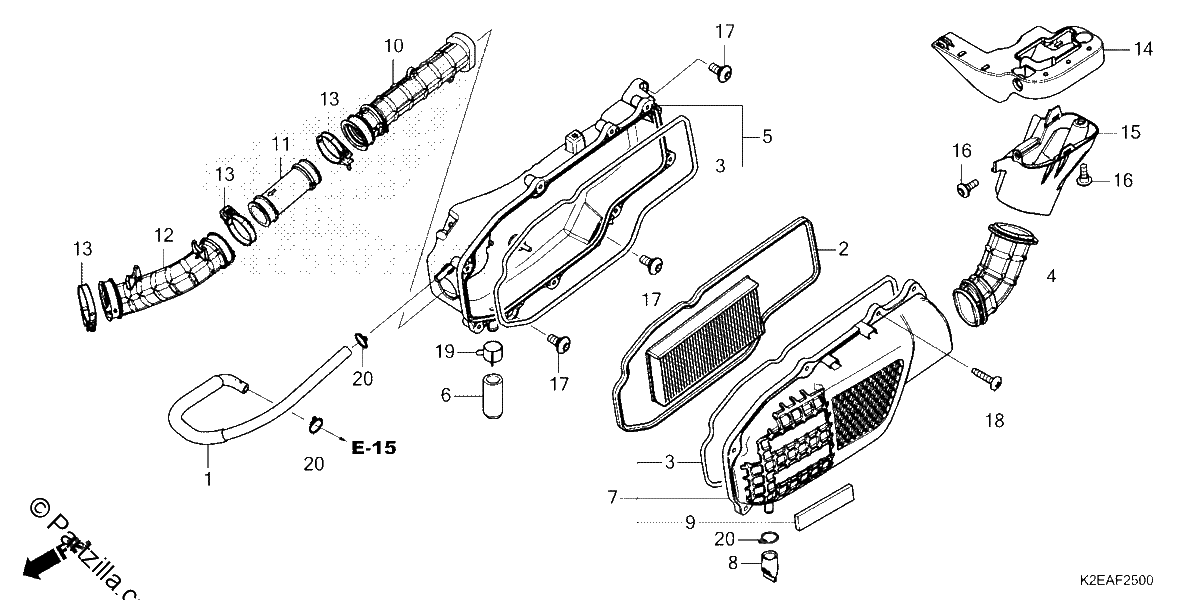

Diagrama de AIR CLEANER

Repuestos

#001
15761-K2E-T10
TUBE, BREATHER
$12.09¢6 044
1
#002
17210-K2E-T00
ELEMENT, AIR CLEANER
$8.54¢4 269
1
#003
17213-K2E-T00
SEAL, AIR CLEANER
$2.64¢1 319
1
#004
17215-K2E-T00
DUCT, AIR CLEANER
$36.92¢18 463
1
#005
17225-K2E-T00
CASE SUB-ASSY., AIR CLEANER
$14.20¢7 100
1
#006
17227-KPK-900
TUBE, VINYL (11X15X35)
$3.75¢1 875
1
#007
17235-K2E-T00
COVER SUB-ASSY., AIR CLEANER
$29.81¢14 906
1
#008
17236-KVB-900
PLUG, AIR CLEANER DRAIN
$1.41¢706
1
#009
17245-K2E-T00
RUBBER, GARNISH
$4.91¢2 456
1
#010
17253-K2E-T10
TUBE A, AIR CLEANER CONNECTING
$27.31¢13 656
1
#011
17254-K2E-T00
JOINT, CONNECTING TUBE
$5.02¢2 512
1
#012
17255-K2E-J10
TUBE B, AIR CLEANER CONNECTING
$28.79¢14 394
1
#013
17256-K2E-T10
BAND, AIR CLEANER CONNECTING TUBE (38)
$3.26¢1 631
1
#014
17285-K2E-T30
CAP, AIR CLEANER DUCT
$12.34¢6 169
1
#015
17295-K2E-T30
HOUSING, AIR CLEANER DUCT
$9.69¢4 844
1
#016
90114-KPB-750
SCREW, SPECIAL (5X14)
$2.97¢1 487
1
#017
90133-KPP-T00
SCREW, PAN (6X14)
$1.64¢819
1
#018
93903-25580
SCREW, TAPPING (5X25)
$1.41¢706
1
#019
95002-41300-08
CLAMP, TUBE (D13)
$3.65¢1 825
1
#020
95002-80000
CLIP, TUBE (C12)
$0.60¢300
1
